Description
Product Description

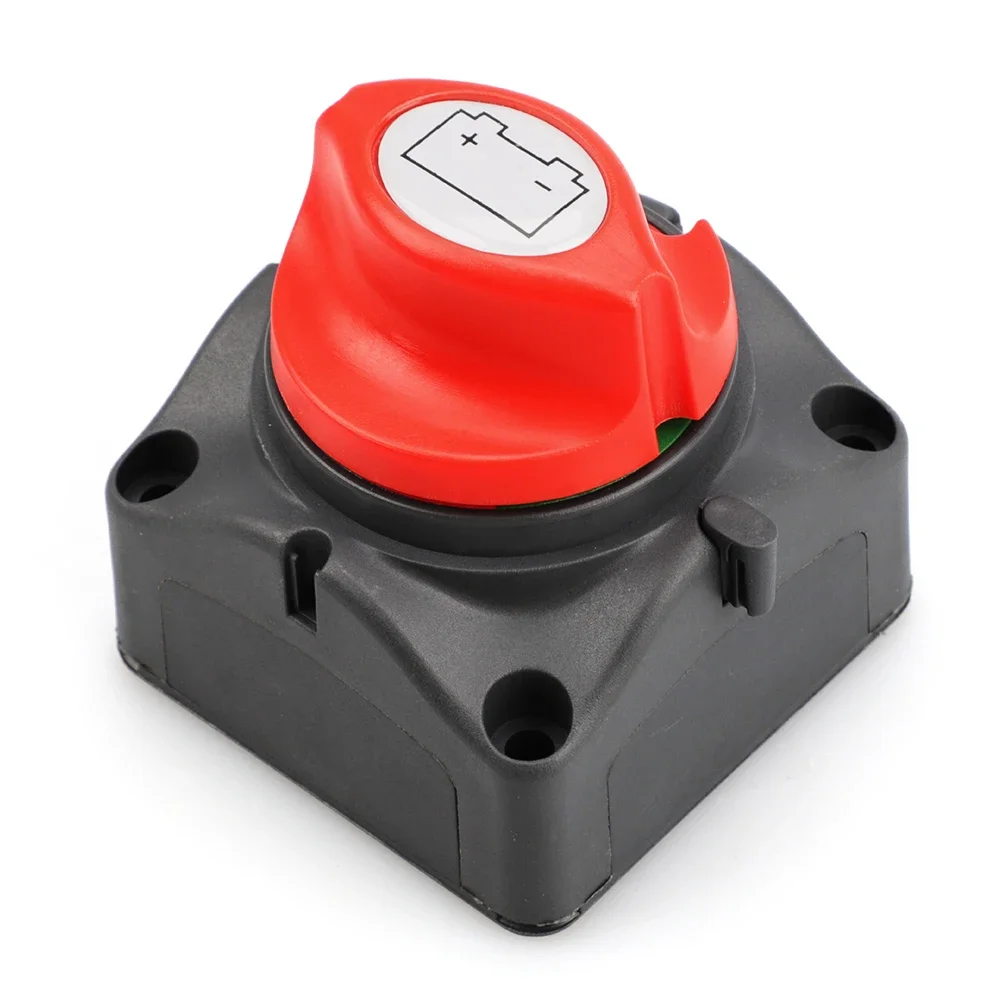

Battery Disconnect Switch 12V 24V 300A Car Isolator Disconnect Rotary Switch 2 and 3 Position Cut Off Switch for VR Camper Boat




Application:
This item is widely used in all kinds of RV ,boats,winch power cable.

Description:
- Material: Plastic, Copper
- Continuous current: 275Amps DC
- Intermittent current: 455Amps DC
- Starting current: 1250Amps DC
- Maximum voltage: 48V-60Volts DC
- Dielectric strength: 1500VAC / 1min
- Electrical life: 10,000 times
- Screw diameter: 10mm
- Operation: On / Off On / Off
- Can be used with 48 -60V DC systems to isolate and secure the electrical system.
- Removable side plates provide access of up to 1/0 cables.
- The rear cover insulating the rear terminals against any short circuits to meet ABYC requirements.
- Engine must be stopped before selecting OFF this is to protect the alternator.
- Eliminate any power draw from the battery when are not in use.


Note:
Pls allow an error of 1-3mm due to the difference of manual measurement.



Packaged Include:

Battery Selector Isolator switch x1
