Product Description

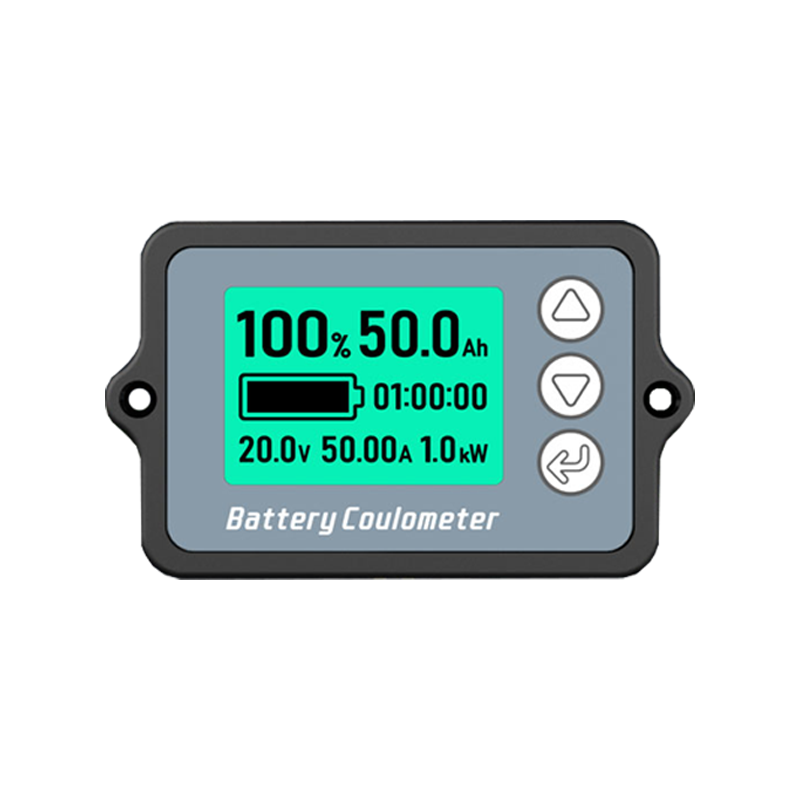

Battery Coulometer TK15 Coulomb Meter Battery Capacity Tester 80V 50A 100A 350A Lithium Battery Monitor LCD Power Level Display
Note
1. Under normal circumstances, the backlight will always remain on.
2. The backlight will automatically turn off when the current is lower than 50mA.
3. As long as the power is turned on, the LCD screen will light up and it will continue to consume power.
Overview:
The TK15 is a new type of the high precision current collection capacity indicating parameter instrument, which is compatible with lithium battery,lithium iron phosphate batteries,lead-acid batteries and nikel-metal hydride batteries,hereinafter referred to as coulometer. It can collect the working state of the battery at anytime. It has various fatures,such as a wide range of operating voltage, low power, high accuracy in indicating. It can set the payload capacity and other parameters of batteries arbitrarily, and with automatic memory function when power down.
1. Under normal circumstances, the backlight will always remain on.
2. The backlight will automatically turn off when the current is lower than 50mA.
3. As long as the power is turned on, the LCD screen will light up and it will continue to consume power.
Overview:
The TK15 is a new type of the high precision current collection capacity indicating parameter instrument, which is compatible with lithium battery,lithium iron phosphate batteries,lead-acid batteries and nikel-metal hydride batteries,hereinafter referred to as coulometer. It can collect the working state of the battery at anytime. It has various fatures,such as a wide range of operating voltage, low power, high accuracy in indicating. It can set the payload capacity and other parameters of batteries arbitrarily, and with automatic memory function when power down.
80V 50A Version
Desciption:
Type: Battery tester
Model: TK15
Operating voltage range: DC8-80V
Current: 50A
Overall Size: 66x40x10mm
Display area size: 32x23mm
External normal Sampler Size:23x18x5mm
Technical Parameters:
Working power consumption: 8.0mA (Max:10.0mA)
Standby power consumption: 0.5mA (Max:0.8mA)
Sleep power consumption: 50uA (Max:60uA)
Voltage acquisition accuracy: +/-1.0%
Current acquisition accuracy: +/-1.0%
Using ambient temperature rang: 0-35C
Backlight on current: 40mA (Max:50mA)
Backlight off current: 30mA (Max: 40mA)
Battery capacity setting value: 0.-590A
External normal sampler working current:30.0A (Max:50A)
External big sampler working current:50.0A (Max:100A)
Attention:The min voltage of the battery pack should higher than the min working voltage of the coulometer
Features:
1. The empty and full voltage of battery can be adjusted
2. The backlight automatic open when using
3. Automatic memory function when power down
4. Fast response rate
5. Low power consumption, automatic wake-up
Display:
1. Residual capacity of battery (Ah or mAh)
2. Capacity percentage and totem pole display
3. Battery voltage
4. Battery current
5. Powe output
6. Remaining time of charge and discharge
Desciption:
Type: Battery tester
Model: TK15
Operating voltage range: DC8-80V
Current: 50A
Overall Size: 66x40x10mm
Display area size: 32x23mm
External normal Sampler Size:23x18x5mm
Technical Parameters:
Working power consumption: 8.0mA (Max:10.0mA)
Standby power consumption: 0.5mA (Max:0.8mA)
Sleep power consumption: 50uA (Max:60uA)
Voltage acquisition accuracy: +/-1.0%
Current acquisition accuracy: +/-1.0%
Using ambient temperature rang: 0-35C
Backlight on current: 40mA (Max:50mA)
Backlight off current: 30mA (Max: 40mA)
Battery capacity setting value: 0.-590A
External normal sampler working current:30.0A (Max:50A)
External big sampler working current:50.0A (Max:100A)
Attention:The min voltage of the battery pack should higher than the min working voltage of the coulometer
Features:
1. The empty and full voltage of battery can be adjusted
2. The backlight automatic open when using
3. Automatic memory function when power down
4. Fast response rate
5. Low power consumption, automatic wake-up
Display:
1. Residual capacity of battery (Ah or mAh)
2. Capacity percentage and totem pole display
3. Battery voltage
4. Battery current
5. Powe output
6. Remaining time of charge and discharge
80V 100A Version
Desciption:
Type: Battery tester
Model: TK15
Operating voltage range: DC8-80V
Current: 100A
Overall Size: 66x40x10mm
Display area size: 32x23mm
External normal Sampler Size:23x18x5mm
Technical Parameters:
Working power consumption: 8.0mA (Max:10.0mA)
Standby power consumption: 0.5mA (Max:0.8mA)
Sleep power consumption: 50uA (Max:60uA)
Voltage acquisition accuracy: +/-1.0%
Current acquisition accuracy: +/-1.0%
Using ambient temperature rang: 0-35C
Backlight on current: 40mA (Max:50mA)
Backlight off current: 30mA (Max: 40mA)
Battery capacity setting value: 0.-590A
External normal sampler working current:30.0A (Max:50A)
External big sampler working current:50.0A (Max:100A)
Attention:The min voltage of the battery pack should higher than the min working voltage of the coulometer
Features:
1. The empty and full voltage of battery can be adjusted
2. The backlight automatic open when using
3. Automatic memory function when power down
4. Fast response rate
5. Low power consumption, automatic wake-up
Display:
1. Residual capacity of battery (Ah or mAh)
2. Capacity percentage and totem pole display
3. Battery voltage
4. Battery current
5. Powe output
6. Remaining time of charge and discharge
Desciption:
Type: Battery tester
Model: TK15
Operating voltage range: DC8-80V
Current: 100A
Overall Size: 66x40x10mm
Display area size: 32x23mm
External normal Sampler Size:23x18x5mm
Technical Parameters:
Working power consumption: 8.0mA (Max:10.0mA)
Standby power consumption: 0.5mA (Max:0.8mA)
Sleep power consumption: 50uA (Max:60uA)
Voltage acquisition accuracy: +/-1.0%
Current acquisition accuracy: +/-1.0%
Using ambient temperature rang: 0-35C
Backlight on current: 40mA (Max:50mA)
Backlight off current: 30mA (Max: 40mA)
Battery capacity setting value: 0.-590A
External normal sampler working current:30.0A (Max:50A)
External big sampler working current:50.0A (Max:100A)
Attention:The min voltage of the battery pack should higher than the min working voltage of the coulometer
Features:
1. The empty and full voltage of battery can be adjusted
2. The backlight automatic open when using
3. Automatic memory function when power down
4. Fast response rate
5. Low power consumption, automatic wake-up
Display:
1. Residual capacity of battery (Ah or mAh)
2. Capacity percentage and totem pole display
3. Battery voltage
4. Battery current
5. Powe output
6. Remaining time of charge and discharge
80V 350A Version
Desciption:
Type: Battery tester
Model: TK15
Operating voltage range: DC8-80V
Current: 350A
Overall Size: 66x40x10mm
Display area size: 32x23mm
External normal Sampler Size:23x18x5m
Technical Parameters:
Working power consumption: 8.0mA (Max:10.0mA)
Standby power consumption: 0.5mA (Max:0.8mA)
Sleep power consumption: 50uA (Max:60uA)
Voltage acquisition accuracy: +/-1.0%
Current acquisition accuracy: +/-1.0%
Using ambient temperature rang: 0-35C
Backlight on current: 40mA (Max:50mA)
Backlight off current: 30mA (Max: 40mA)
Battery capacity setting value: 0.-590A
External normal sampler working current:30.0A (Max:50A)
External big sampler working current:50.0A (Max:100A
Attention:The min voltage of the battery pack should higher than the min working voltage of the coulometer
Features:
1. The empty and full voltage of battery can be adjusted
2. The backlight automatic open when using
3. Automatic memory function when power down
4. Fast response rate
5. Low power consumption, automatic wake-up
Display:
1. Residual capacity of battery (Ah or mAh)
2. Capacity percentage and totem pole display
3. Battery voltage
4. Battery current
5. Powe output
6. Remaining time of charge and discharge
Desciption:
Type: Battery tester
Model: TK15
Operating voltage range: DC8-80V
Current: 350A
Overall Size: 66x40x10mm
Display area size: 32x23mm
External normal Sampler Size:23x18x5m
Technical Parameters:
Working power consumption: 8.0mA (Max:10.0mA)
Standby power consumption: 0.5mA (Max:0.8mA)
Sleep power consumption: 50uA (Max:60uA)
Voltage acquisition accuracy: +/-1.0%
Current acquisition accuracy: +/-1.0%
Using ambient temperature rang: 0-35C
Backlight on current: 40mA (Max:50mA)
Backlight off current: 30mA (Max: 40mA)
Battery capacity setting value: 0.-590A
External normal sampler working current:30.0A (Max:50A)
External big sampler working current:50.0A (Max:100A
Attention:The min voltage of the battery pack should higher than the min working voltage of the coulometer
Features:
1. The empty and full voltage of battery can be adjusted
2. The backlight automatic open when using
3. Automatic memory function when power down
4. Fast response rate
5. Low power consumption, automatic wake-up
Display:
1. Residual capacity of battery (Ah or mAh)
2. Capacity percentage and totem pole display
3. Battery voltage
4. Battery current
5. Powe output
6. Remaining time of charge and discharge
