Description

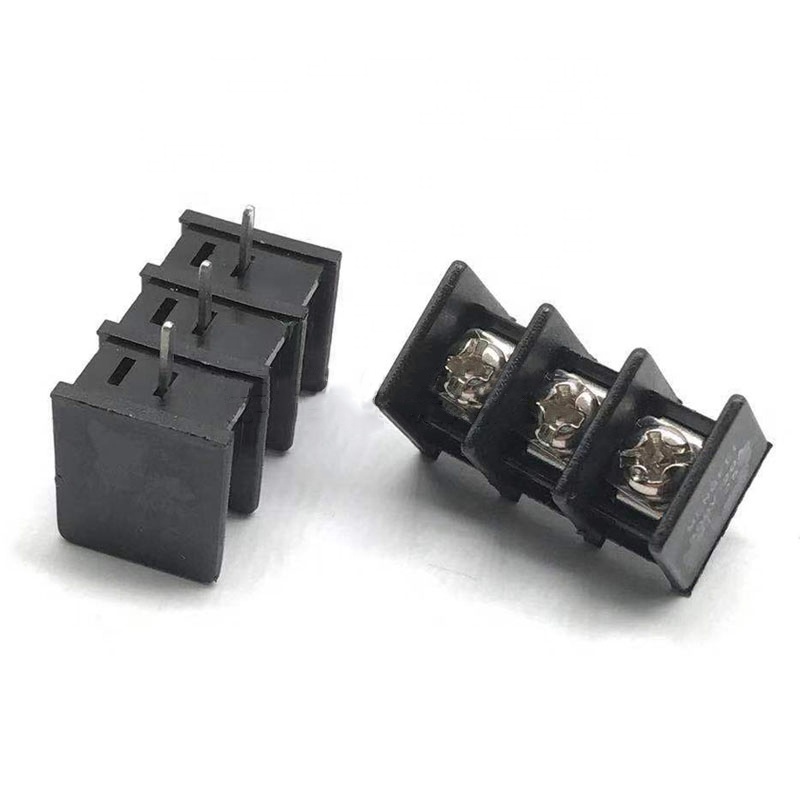

Barrier Type Terminal Block KF35C 8.25MM Pitch 2/3/4/5/6/7/8/9/10P PCB Screw Terminal Block PCB Mount Terminal Block
Product Description
KF35C Barrier PCB Terminal Blocks Terminal Blocks with 8.25mm Intermediate Foot, Multiple style can optional.
We have following style, please leave us a note the style or contact the customer service.
2P-35C-8.25 middle pin terminal 3P-35C-8.25 middle pin terminal 4P-35C-8.25 middle pin terminal 5P-35C-8.25 middle pin terminal 6P-35C-8.25 middle pin terminal 7P-35C-8.25 middle pin terminal 8P-35C-8.25 middle pin terminal 9P-35C-8.25 middle pin terminal 10P-35C-8.25 middle pin terminal 12P-35C-8.25 middle pin terminal
Specification
|
Guideline
|
UL
|
IEC
|
||
|
Rated voltage
|
IEC
|
450V
|
||
|
Rated current
|
20A
|
24A
|
||
|
Use thread
|
22-12 AWG
|
2.5mm2
|
||
|
Withstand voltage
|
AC2000V/ 1Min
|
KF35C 8.25MM Barrier Type Terminal Block
|
||
|
Mechanical behavior
|
3-13
|
|||
|
Torque
|
8. 0Kg. cm
|
12 - 22 AWG
|
||
|
Temperature range
|
-40°C-+105C
|
Barrier
|
||
|
Size
|
||||
|
Spacing
|
8.25mm
|
|||
|
Number of poles
|
2P-24P
|
|||
|
Material and plating
|
||||
|
Body shaping
|
PA66 UL94V-0
|
|||
|
Solder pin
|
Brass tinned
|
|||
|
Screw
|
M3 steel nickel plated
|
|||
Details Images
