AX5043 433MHz RF Wireless Transceiver Module High Power 1W UART Serial Port to RF Transceiver Transparent Transmission
Product Description
The wireless transparent transmission module based on the radio frequency chip AX5043 (integrated transceiver) uses narrow-band transmission with 1W transmit power. At the same time, the FEC forward error correction algorithm is used to greatly improve the anti-interference ability; at the same time, it can communicate with other modules of the E31 series.
Specification
|
item
|
value
|
|
Product Model
|
E31-TTL-1W
|
|
Interface type
|
UART serial port
|
|
Carrier frequency
|
433MHz ( 425-450.5)
|
|
Transmission power
|
1W
|
|
Communication distance
|
6000 meters
|
Module size: 24mm*43mm Working frequency band: 425MHz -450. 5MHz (256 channels in total, factory default 433MHz) Interface: 1*7* 2.54mm Operating Voltage: 2.8V - 5.5VDC Communication level: 5.2V maximum (recommended to have a difference of less than 0.3V with the power supply voltage to reduce power consumption) Transmitting power: maximum 30dm (about 1w, a total of 4 levels adjustable) Measured distance: 6000 meters (5V power supply, clear and open, maximum power, antenna gain 5dBi, height greater than 2m, 1.2K air rate) Air rate: 1.2EKbps - 70Kbps (8 levels adjustable, factory default 1.2Kbps) Transmit current: 510mA at 30dBm Receive current: 15. 5mA mode 0, mode 1, minimum about 30uA (mode 2+2S wake-up) Sleep current: 1.7uA (M0=1,M1=1) Communication interface: UART serial port, 8H1, 8E1, 801 (support a total of 8 baud rates 1200-115200) Drive mode: UART serial port can be set to push-pull/pull-up, open-drain Send and receive length: 512 bytes buffer, data packet 43 bytes Address function: 65536 addresses can be configured (easy for networking, support broadcast and fixed-point transmission) Antenna form: SMA interface Receiving sensitivity: -126dbm at 1.2Kbps (receiving sensitivity has nothing to do with serial port baud rate and delay time) Operating temperature: -40℃ ~ +85℃ Working humidity: 10% ~ 90% relative humidity Storage temperature: -40℃ ~ +125℃
Installation Instructions

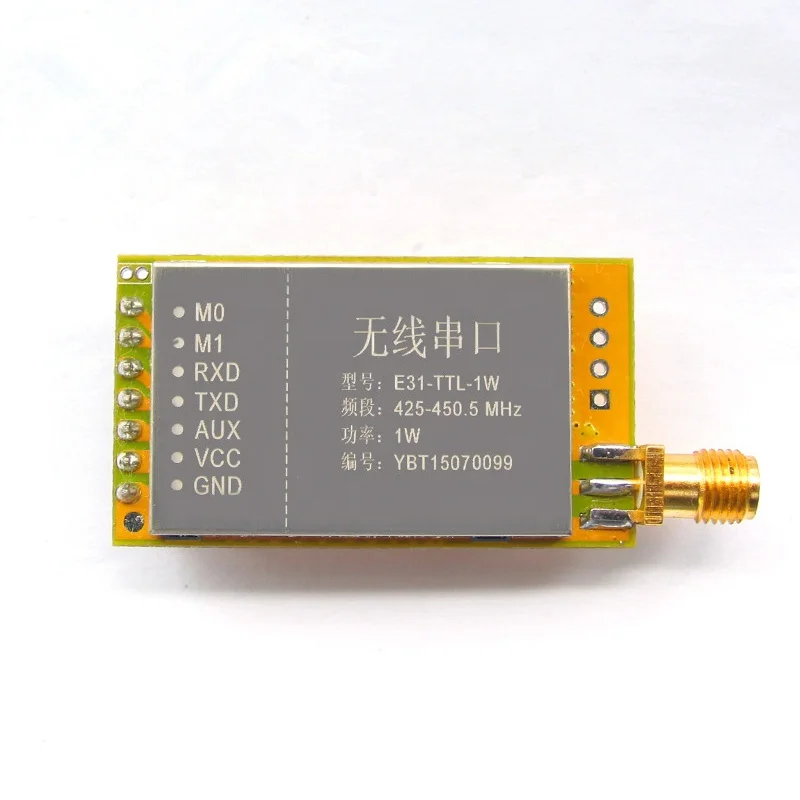

Pin description
01, M0, input, used in conjunction with m1 to determine the 4 working modes of the module (can not be left floating) 02, M1, input, used in conjunction with M0 to determine the 4 working modes of the module (can not be left floating) 03, RXD, input, TTL serial input, connect to external TKD output pin 04, TXD, output, TTL serial output, connect to external REXD input pin 05, AUX, output, used to indicate the working status of the module, the user wakes up the external MCU. . . 06, VCC, module power positive, voltage range: 2.8-5.5V 07, GND, module power supply negative
