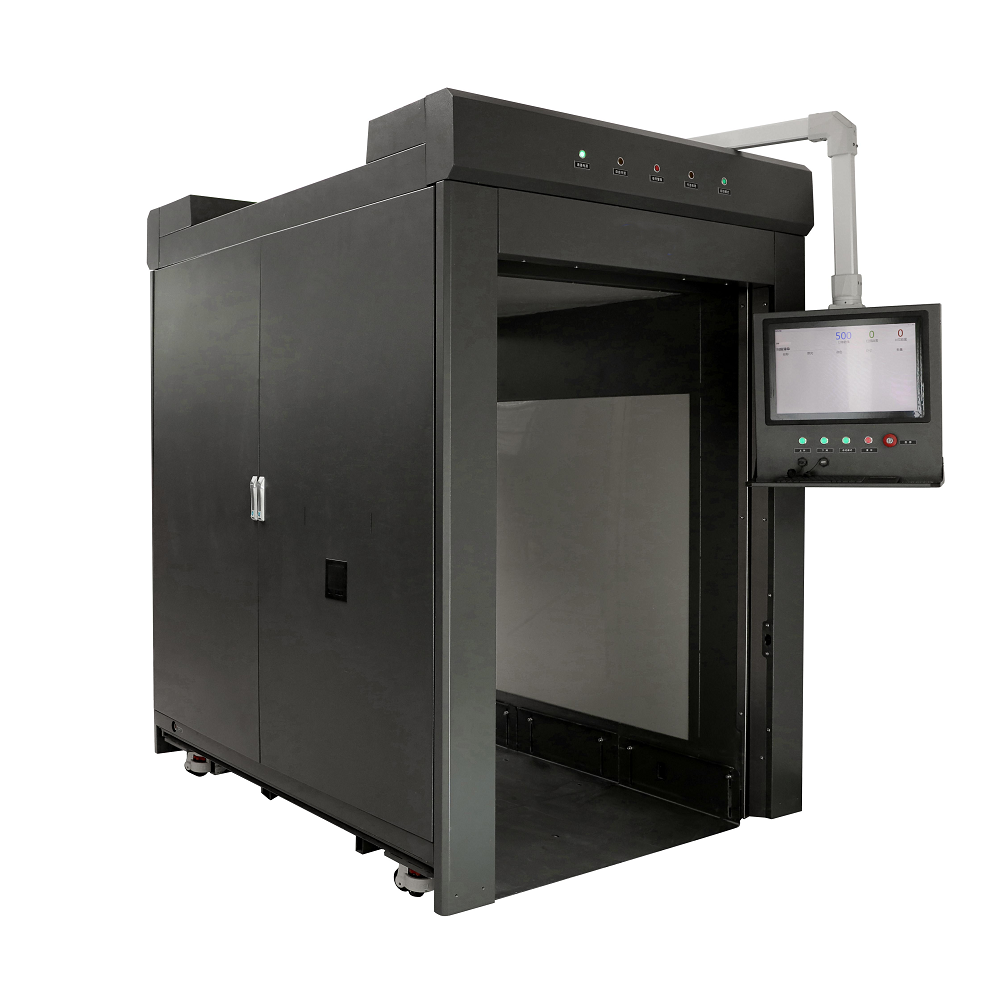

This series is an industrial-grade tray-type RFID acquisition tunnel, which is independently designed and developed by our company. It takes Radio Frequency Identification Technology as the core and combines mechanical design, multiple sensors, electromagnetic shielding, automatic control and other technologies.
It completely solves the problems such as label missed reading and the wrong serial reading in the supply chain circulation, meeting the requirements of rapid and accurate application of product circulation. At the same time, the scanning tunnel combines the warehouse management system to completely overcome the defects of barcode management, and truly realize the item-level management. And it also saves labor costs and greatly improves work efficiency.
Industry application: The product is mainly used for item-level identification, such as warehouse management of fashion, washing, alcohol, electric power industry, item-level label and box label comparison, product inventory, etc.
What is the key features of Automatic Industrial Tool Stock Store Management RFID Portal Detector?
*High identification efficiency: It can read 800+pcs of tags at a time within 3 seconds;
*Professional antenna RF reflection design fully solves the problems of dead angel and tag miss-reading ;
*Compact electromagnetic shielding and radio frequency optimization can eliminate the harm of RF radiation to the human body, and the tag reading accuracy reaches 100% (Depends on the reading environment and performance of tags);
*The design of automatic double rolling shutters can realize automated identification for field applications without manual intervention;
*Imported or domestic RFID readers can be chosen to meet the needs of different users. And we support customers to develop secondary software.
What is the specification of Automatic Industrial Tool Stock Store Management RFID Portal Detector?
|
Automatic Industrial Tool Stock Store Management RFID Portal Detector |
|
| Main Specifications | |
| Air Interface Protocol | EPC Global Class1 Gen2/ISO 18000-6C |
| RFID Frequency | 902.75MHz~927.25MHz, channel spacing 500kHz |
| RFID Frequency Mode |
Fixed Frequency; Frequency Hopping, 10 Frequency Hopping Points |
| Reader | Imported (Impinj-R420) |
| Reader Output Power | 16~31±1dBm |
| Number of Tag Reading | 800+pcs |
| Reading Efficiency | Within 3 seconds |
| Reading Mode | Motionless |
| Operating Mode | Interval T cycle / Continuous Operation / External Trigger |
| Screen | 19-inch resistive touch (Embedded Type or Boom Type) |
| Programmable Controller | Imported |
| Electric Control System | With Domestic PLC |
| Industrial Computer | I5/4GB |
| Antenna | 4 Groups of 8dbi Antennas |
| Photoelectric Switch | 2 Groups/Imported |
| Load Capacity | Unlimited |
| Opening Speed | 1.2 seconds |
| Efficiency | Manual |
| Physical Environment | |
| Overall Size(mm) | 2130(length) × 1500 (width) × 2360 (height) |
| Internal Size(mm) | 1800 (length) × 1160 (width) × 1830 (height) |
| Maximum Passable Size(mm) | 1800 (length) × 1050 (width) × 1800 (height) |
| Automatic Rolling Shutter | Self-weight |
| Weighing Module | Optional |
| Total Weight | About 630KG |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -10°C to +60°C |
| Operating Humidity | 20 – 95% (Non-condensing ) |
| Work Voltage | 220VAC(±10%)50±3HZ |
| Power | 200W |
| Enclosure Material | Spray-paint Carbon Steel |
| Shielding Performance | 10~30CM |
