Description
Automatic Induction Large 3 Digit Counter Power Outage Memory LED Count Screen RS485 Communication Decade Counter
Product Description
Title goes here.
Up/down count
1. Directly control addition and subtraction through the remote control
2. Connect button\sensor\foot pedal\NPN, PNP switch signal, etc. increase and decrease
3. Control addition and subtraction through PLC, computer, etc.
Adjust the counting step
1. Set the value of each addition and subtraction through the remote control
1. Set the value of each addition and subtraction through the remote control
2. The communication version can be set via a computer or PLC
Adjust the counting interval
1. Set the counting interval through the remote control
2. The communication version can be set via a computer or PLC
3. The fastest counting interval is 10ms/time
Add decimal point
1. Customize the decimal point via the remote control
2. It can be set by computer and PLC
Alarm function [Need to be used with alarm light]
1. The maximum/minimum value alarm can be set
2. Alarm duration can be set
3. Alarm actions can be set (e.g.: stop counting and alarm when the set value is reached)
Memorize data
1. Automatically memorize data
2. Automatically save when power off
Note
We have following size can choose, pls contact us.
1.8 Inch 18x11cm
2.3 Inch 22x13cm
3 Inch 28x14cm
4 Inch 35x18cm
5 Inch 40x20cm
2.3 Inch 22x13cm
3 Inch 28x14cm
4 Inch 35x18cm
5 Inch 40x20cm
Specification
|
item
|
value
|
|
Display method
|
LED display, constant current source static drive
|
|
Display material
|
1.8/2.3/3.0/4.0/5.0 inch red light digital tube
|
|
Panel material
|
Acrylic material
|
|
Frame material
|
Aluminum alloy material (default thickness 3.8cm)
|
|
Product power consumption
|
Whole screen 2-30W
|
|
Power supply range
|
Average service life≥10W hours, MTBF≥20000 hours
|
|
Power Adapter
|
Default DC12V (please consult customer service for other power supplies); AC220V/50Hz
|
|
Working environment
|
Temperature -10°C~70°C; relative humidity< 85%
|
|
Data preservation
|
Automatically memorize data, save data when power off
|
|
Remote control distance
|
Infrared remote control<=10m
|
|
Installation method
|
Hanging type; sawtooth wall-mounted type; L-shaped wall-mounted type
|
|
Collection method
|
Photoelectric sensor (NPN, PNP interface), button, pedal, PLC switch
|
|
Scope of application
|
Industrial assembly line/workshop/factory/commercial activity/entertainment program/office, etc.
|

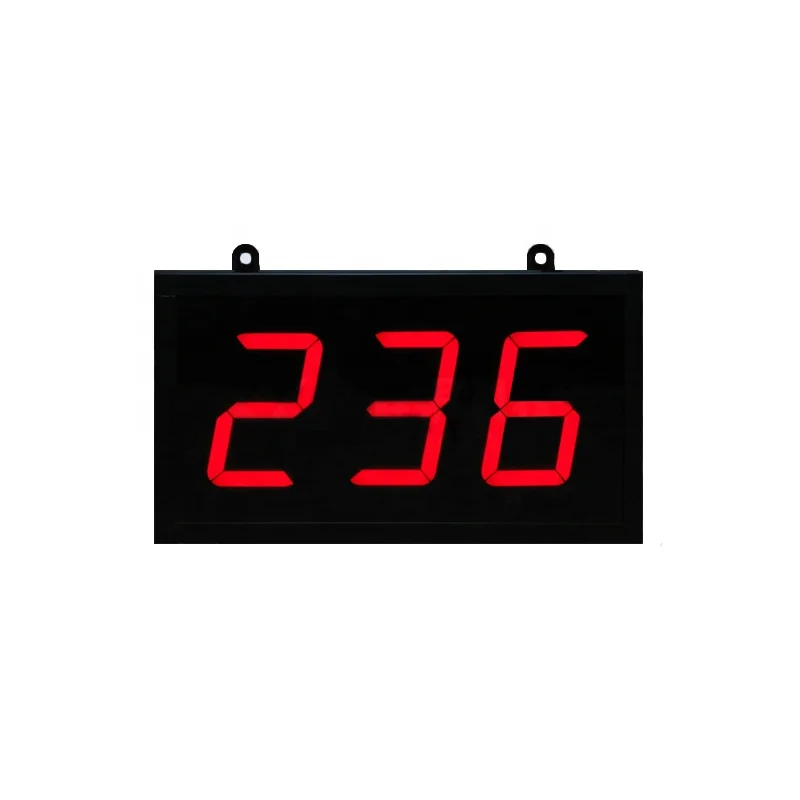

Details Images
