Description

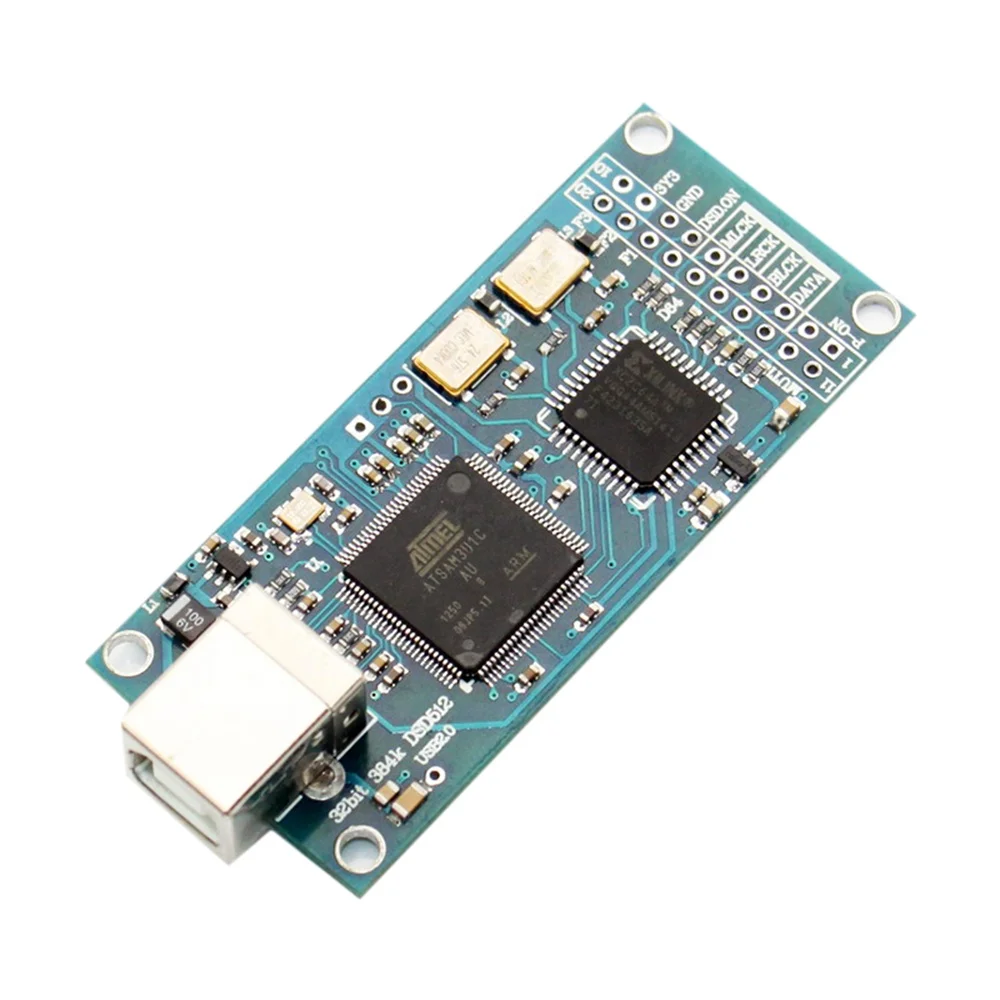

ATSAM3U1C XC2C64A USB to IIS Digital Interface Decoder Board Audio Module DAC Decoder Board Support dsd512, 32b 384K
Product Description
All the parts of this product are genuine and authentic, simple and pure, and the quality is pure; using high-quality original parts not only guarantees the safety and quality, long service life, but also the strong guarantee that the actual performance can meet the design goals. The pursuit of first-class quality is our consistent aim.
Product details
1
using original ATSAM3U1C XC2C64A.
2
The resistor uses a chip resistor with an accuracy of ± 1% to ensure a good signal-to-noise ratio for the whole machine.
3
PCB uses 1.6mm thick double-sided sheet, 2.0 oz copper thickness, the whole process of spraying tin, to ensure the good passing performance of large and small currents. Best-in-class PCB quality.
This card supports I2S output (DSD format is also available) Supported Sample Rates 44.1Khz 48Khz 88.2Khz 96Khz 176.4Khz 192Khz 352.8Khz 384Khz Output Format I2S 32bit or DSD64, DSD128-On Windows DSD256, DSD512 too Oscillators 2 Low Phase Noise TCXO Dimension 30x69mm Note DSD output enable line to signal an incoming DSD stream. The card supports output mode only. NO Drivers needed for Mac OSX 10.6+ and Linux with UAC2 compliant kernel. KS / Wasapi / WDM / ASIO Drivers for MS OS XP to Win8 32-64bit included at no fee. Upon Request The user can provide a custom USB VID-PID, a custom Device Name and a custom CodeSign Certificate for WDM drivers. For old applications the max sample rate can be configured to 192Khz
Technical indicators: DSD512, DXD 384k. Amanero supports DSD Native (source code) and DoP dual modes. DSD Native with ASIO can support the highest audio specifications, and DoP is basically unnecessary.
