Commodity application: can do some simple experiments, mainly used to build a temporary single-chip system or as a M16/32/64 single-chip programming socket
Specification
Feature
value
1

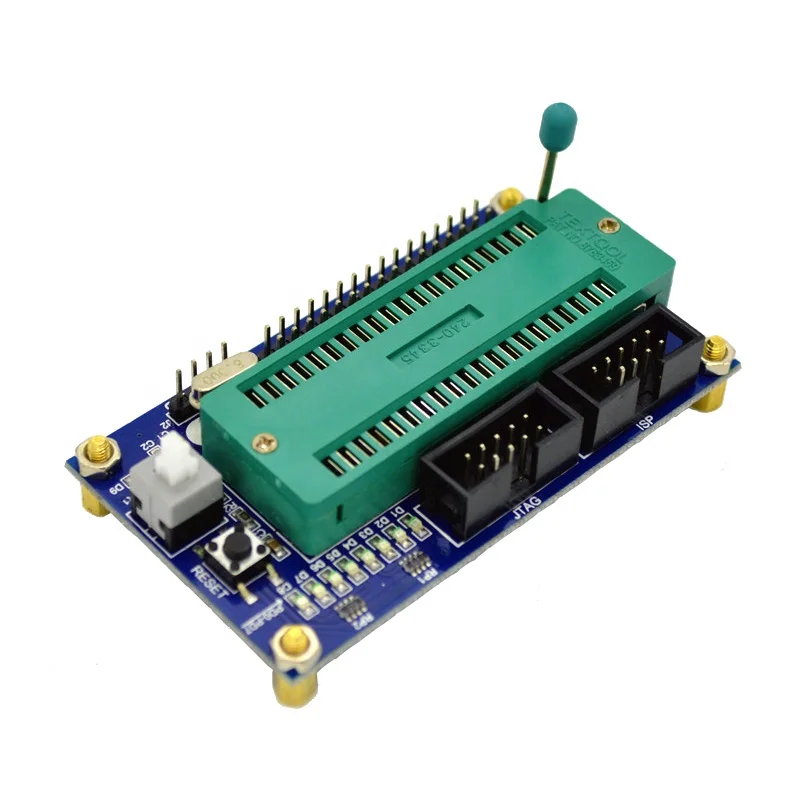

Place the Atemga16/32/64 MCU directly, and use the DIP40 locking seat to facilitate access to the chip;
2
8 LEDs can be used as water lamp experiment;
3
1 reset button onboard standard reset circuit;
4
1 standard ISP download interface, equipped with USB-ISP for online program download, and power input through the programmer;
5
1 standard JTAG emulation interface, equipped with USB-JTAG for online emulation program, and power input through emulator;
6
All IO ports are led out in the form of pin headers, which is convenient for external use;
7
There are 2 sets of power pin output or input, which is convenient for external accessories to get power or supply power to the board;
8
The onboard 8MHz high-quality quartz crystal can be replaced at will;
