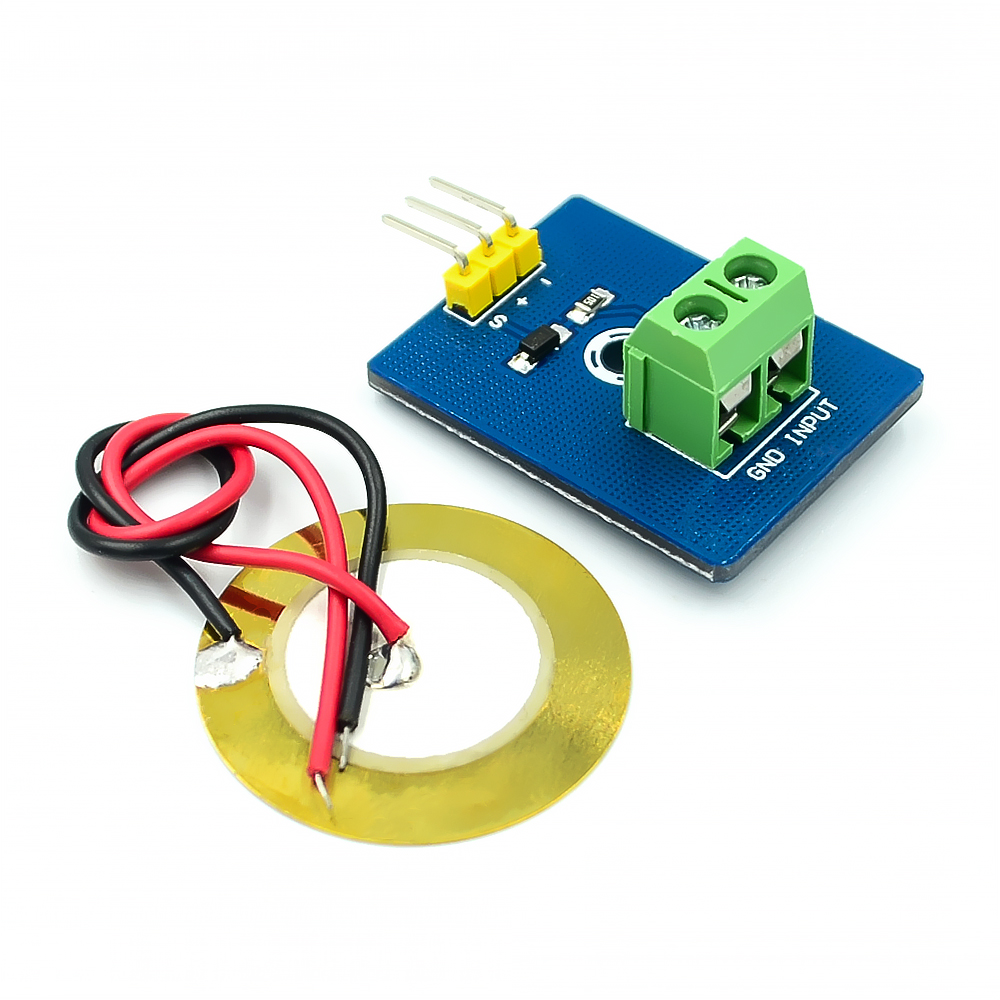

Analog Drum Simulate Piezoelectric Ceramic Piezo Vibration Sensor Module

Specification

  • Working Voltage: 3.3V or 5V
  • Working Current: <1mA
  • Operating Temperature Range: -10 ~ + 70
  • Interface Type: Analog Output
  • Item Size: 30mm x 23mm
  • GPIO: S; signal output, +; power supply (VCC), -; ground (GND)
  • Input: Positive electrode of the piezoelectric ceramic
  • Gnd: Negative electrode of the piezoelectric ceramic
  • S-port is connected with the controller\'s analog input pin
  • 5V and GND are respectively connected the power supply of + 5V and GND
  • Input and Gnd are already connected with the piezoelectric ceramics\' positive and negative
