Description
Product Description

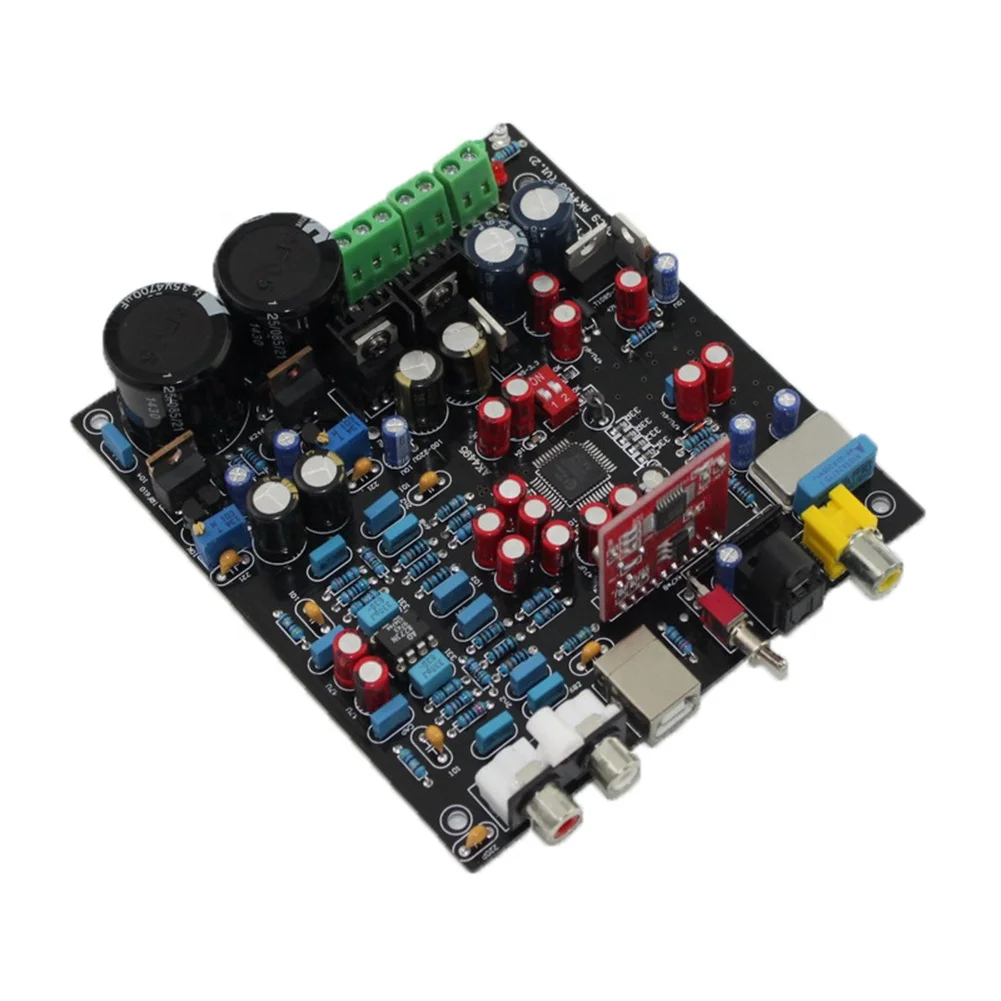

Using original AK4495+WM8805+PCM2706+AD827 The main circuit of the electrolytic capacitor signal adopts the famous brand, the main filter capacitor adopts the special electrolytic capacitor with a capacity of 2×4700UF, and the full-wave bridge rectifier circuit is used to ensure the strong and continuous power support. The five-ring metal resistor is used for the resistor, and the five-ring metal film resistor with an accuracy of ±1% is used for the main circuit, which ensures a good signal-to-noise ratio of the whole machine. The PCB adopts 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and full tin spraying process to ensure good passing performance of large and small currents. Top-notch PCB quality. AK4495 is AKM's most high-end decoding chip, supporting 32BIT 384K The USB decoder chip is PCM2706 (with USB daughter card) Coaxial input supports up to 192KHZ, optical input supports up to 96KHZ
Specification
item
value
Two sets of AC
9V (more than 10W per set), (from left to right: 1-2 is (6-9V); 3-4 is 9V; 5-6-7 is 12V-0-12V or dual 15V (15W above)
