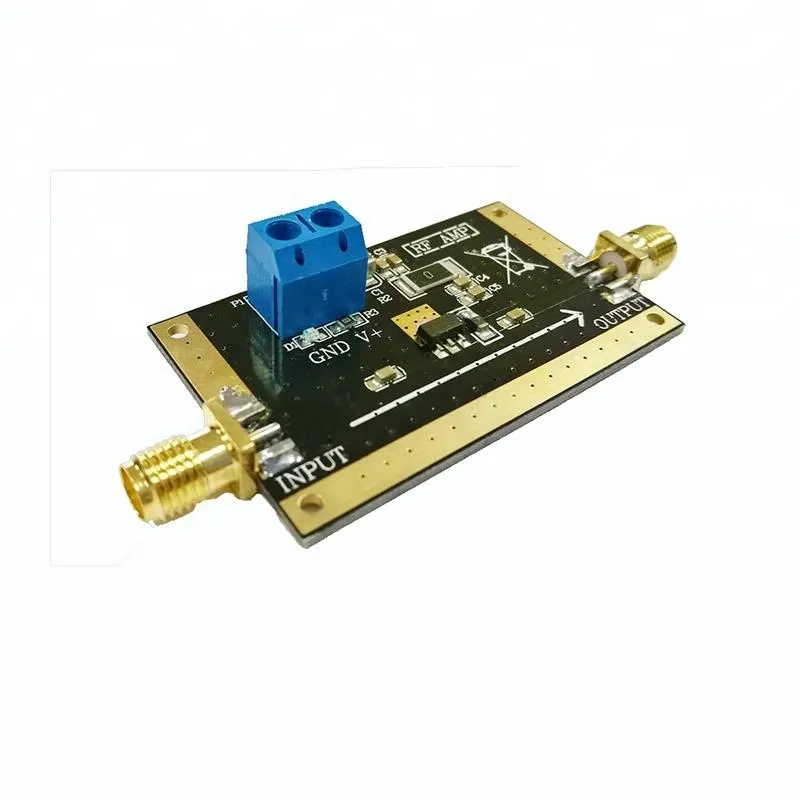

AH102 SPF5189Z 350MHZ-3000MHz RF Signal Amplifier Module Fixed Gain 13dB Single Power Supply RF Low Noise Amplifiers
Product Description
AH102 350MHZ-3000MHz Medium Power RF Amplifier Module Fixed Gain 13dB Single Power Supply
Specification
Name: SPF-518950MHz-4000MHz Low Noise RF Amplifier Module Size: 50MM X 30MM Supply voltage range: +5V Fixed gain: 18dB at 900MHz 50MHZ-4000MHz +22.7dBm P1bD at 1960MHz+39.5dBm OlP3 at 1960MHz Noise figure: 0.6dB at 900MHz 3V-5V single power supply, adjustable current (through bias resistor), typical current 60mA impedance matching 50Ω
Installation Instructions
Low noise amplifier 0.05-4GHz NF: 0.6dB LNA RF amplifier test data
|
Fre(MHz)
|
50
|
100
|
500
|
800
|
1000
|
1500
|
2000
|
2400
|
2800
|
|
Gain(dB)
|
21.05
|
21.01
|
20.87
|
19.75
|
16.75
|
13.62
|
10.16
|
10.00
|
9.00
|
Note
The RF amplifier must first be connected to the load before the signal is connected (power on), otherwise it is easy to burn!!
