Description

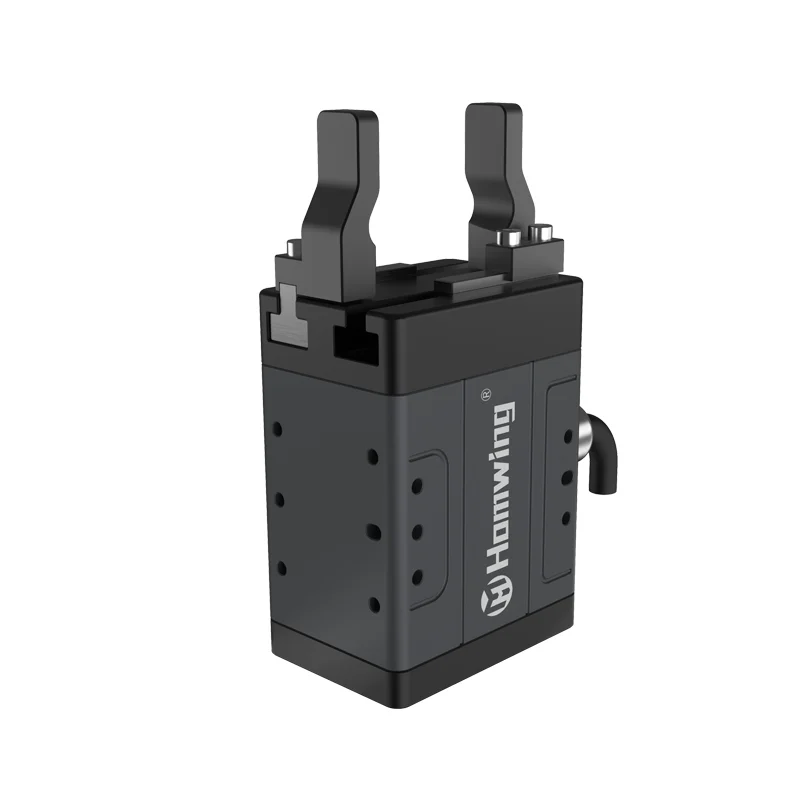

Product Overview
Four-sided mounting Adjustable and controllable force and position Networking applications Grabbing feedback, drop detection
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Adjustable Stroke
0-50 mm
Rated Voltage
DC 24±10%V
Clamping Force of One Finger
2-60 N
Maximum Current
0.85 A
Opening/Closing Time
0.6s
Rated Current
0.4 A
Positional Repeatability
±0.02 mm
Communication Protocol
Modbus RTU(RS 485) Digital I/O optional
*Maximum Recommended Load
1Kg
International Standards Met
CE、RoHS
Drop Detection
Supported
Allowable Static Load in Vertical Direction Fz
200N
Applicable Environment
5~40℃ 85%RH below
Allowable Static Torque Of The Slider Mx
2 Nm
Operating Noise
Less than 40 decibels
Allowable Static Torque of The Slider My
1.5 Nm
Weight
0.57Kg
Allowable Static Torque Of The Slider Mz
2 Nm
IP Grade
IP40、IP65 optiona
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
FAQ
Q1:Can I get sample? A1:Yes. We will cover the sample fee in the future order Q2:Do you accept OEM business? A2:Yes.We do. Q3:What’s the payment term? A3: T/T,Western Union,Paypal are accepted. Q4: How about the warranty? A4: 12 months under normally used. Q5. What’s the delivery time ? A5.. Normal model 2-5days,because we have ability to do the stock. Quantity order takes about 10-15days. Q6: How does your factory dothe quality control? A6:There is system to control the quantity from IQC to production process to OQC.
