Description
Product Description

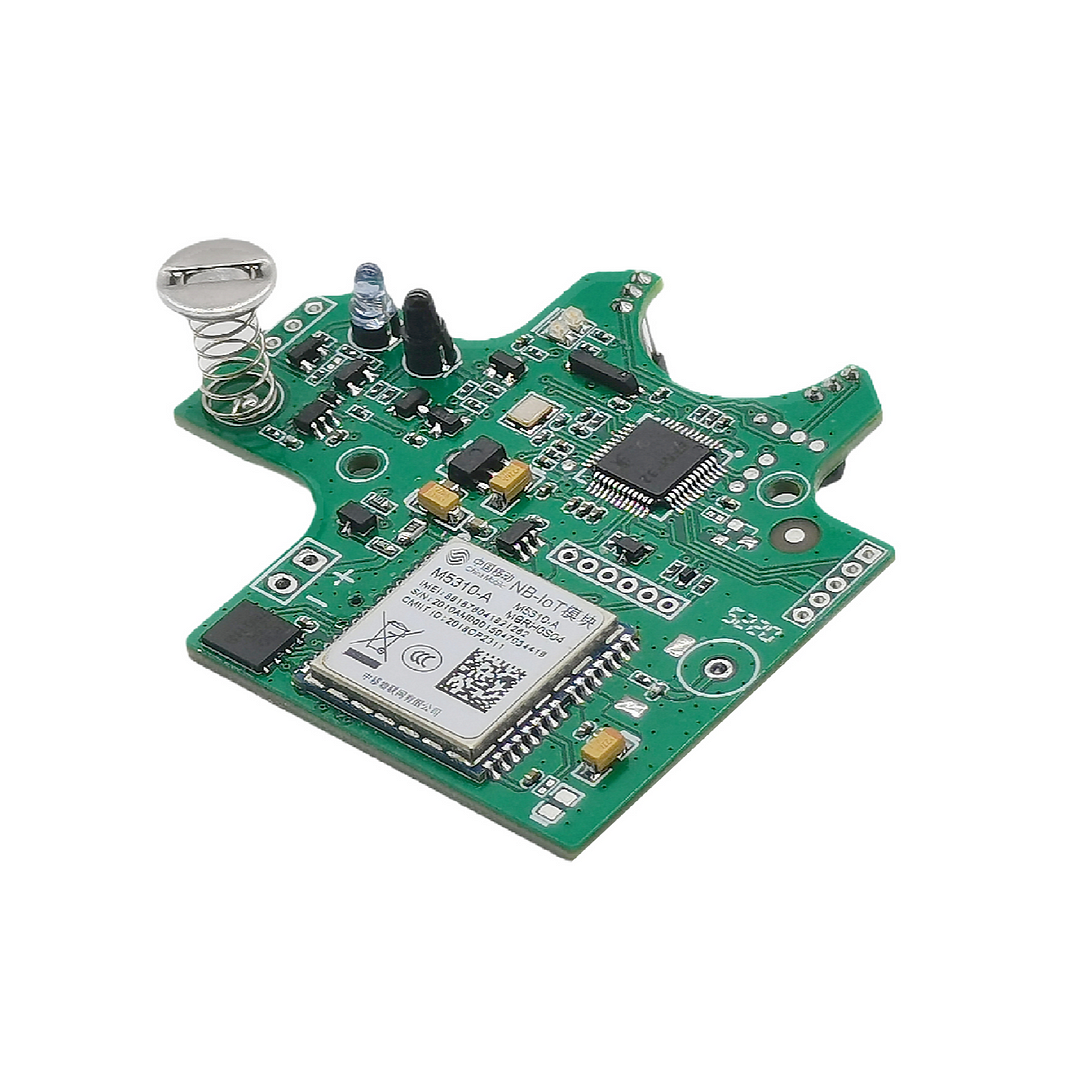

It is designed by the integrated product of dual reluctance sensor, touch button, infrared communication and NBIoT. The module adopts nB-iot module modulation and demodulation technology, which perfectly solves the problem of decentralized ultra-long distance communication in complex environment with small amount of data. Compared with the traditional modulation technology, THE -NBH module has obvious advantages in the performance of suppressing the same frequency interference, which solves the disadvantages of the traditionaldesign scheme that cannot take into account the distance, disturbance rejection, high power consumption and the need for a central gateway. This scheme is the best choice for long-distance transmission and high reliability applications.
Basic functions
--High-performance 32 bits microcontroller;
--Supports serial port/infrared communication with baud rate up to 9600bps.
--Exchange data with the service server over the NB network via the Telecom IoT in the format of JSON KV value
--Compatible with NanoSIM\eSIM;
--You can read and set parameters using the serial port or infrared
--You can set parameters remotely over the NB network
Basic functions
--High-performance 32 bits microcontroller;
--Supports serial port/infrared communication with baud rate up to 9600bps.
--Exchange data with the service server over the NB network via the Telecom IoT in the format of JSON KV value
--Compatible with NanoSIM\eSIM;
--You can read and set parameters using the serial port or infrared
--You can set parameters remotely over the NB network
Specification
|
Item
|
Parameters
|
|
Model Number
|
HAC-NBh
|
|
Place of Origin
|
China
|
|
Chipset
|
M5310-A
|
|
Supplier Type
|
OEM and ODM services
|
|
Application
|
water meter AMR system, NB-IoT solutions
|
|
Frequency
|
850MHz(Band5), 900MHz(Band8), or the locally supported NB-IoT band
|
|
Protocol
|
UDP, COAP
|
|
Power supply
|
+3.1V~+4.2V
|
|
Communication Range
|
>20km
|
|
Power Consumption
|
<20µA
|
|
Battery lifetime
|
more than 8 years
|
Packing & Delivery
Conventional Carton Package
