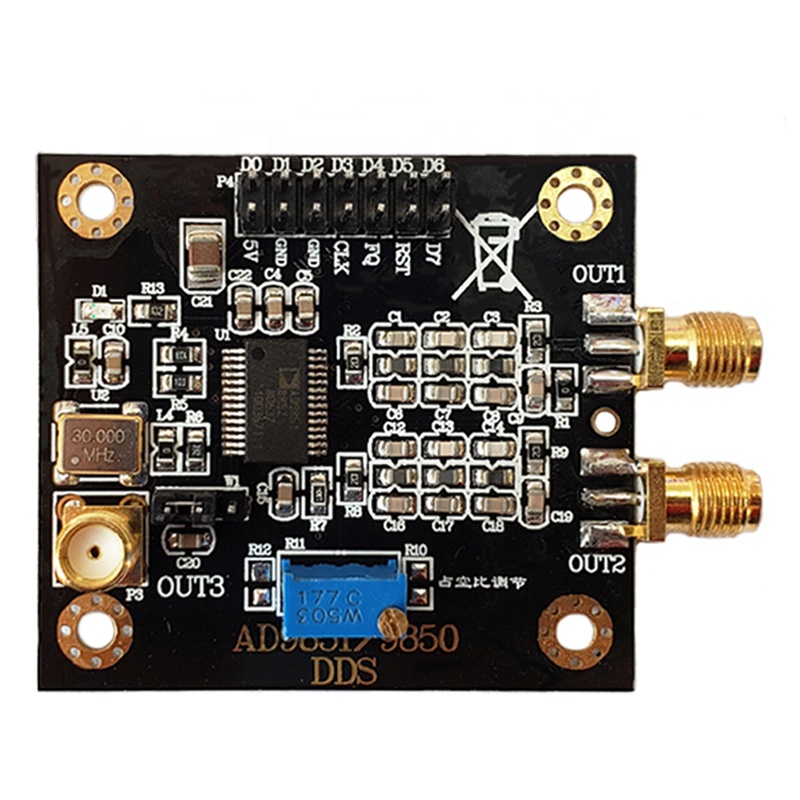

AD9851 DDS Frequency Function Generator 180M Sine Wave Output Microwave Signal Generator Compatible with 9850
Product Description
The AD9851 is a highly integrated device that uses advanced DDS technology, coupled with an internal high-speed, high-performance D/A converter and comparator, to form a digitally programmable frequency synthesizer and clock generator function. When referring to the accurate clock source, the AD9851 generates a stable frequency and performs a phase-programmable digital analog output sine wave. The sine wave can be used directly as a frequency source or internally converted into a square wave agile clock generator application. AD9851 Innovation The high-speed DDS core accepts 32-bit frequency tuning words, resulting in an output tuning resolution of approximately 0.04 Hz when the system clock is 180 MHz. The AD9851 contains a unique 6 X REFCLK multiplier circuit that eliminates the need for a high-speed reference oscillator. 6 X REFCLK multiplier has minimal effect on SFDR and phase noise characteristics.
Specification
itemModule model
AD9851
Module type
digital synthesis frequency source
Module power supply
DC-5V Type
Module current
70mA (MAX); normal drive current 65mA (TYP)
Module communication protocol
SPI serial or parallel
Module provides routines
STM32F103RCT6
Routine platform
STM32F103X-M3 KEIL5 version source code
Module system main frequency
180MHz (MAX)
DAC resolution digits
10 digits
Phase accumulator bits
32 bits
Module output interface
SMA; 24-hour salt spray anti-oxidation
Module output signals
sine wave, square wave; sine wave with 65MHz low-pass filter. Square wave coupling output.
Module output channel
2 channel differential; phase difference is 180 degrees, high frequency output will have phase shift due to filter
Signal characteristics
the sine wave has no coupling output; the output has its own DC component. If it is connected to RF equipment, please add a DC blocker or use an oscilloscope to measure directly
Maximum main frequency output sine wave signal range
1Hz-65MHz
The max main frequency output square wave signal range
1Hz-30MHz; above 10MHz, the oscilloscope input impedance is 50 ohms, and the square wave duty cycle is adjustable.
Output amplitude
sine wave 340mVpp (MAX) square wave 5Vpp; sine wave amplitude decreases with increasing frequency, square wave waveform changes with increasing frequency
Module features
multiple; high-performance DDS sine wave signal generator, high-order elliptic filter, Low noise regulator chip, etc.
Module application
multiple; frequency signal generation, sine wave, square wave signal generation, sensor excitation
Module specifications
70*50*12; length * width * height-PCB size
Module interface type
SMA signal output and external clock input, DC5.5 power socket XH2.54-14PIN double-row pin data interface
