AD9850 Signal Generator Module DDS Sine Wave Generators Sine Wave Square Wave Adjustable Duty Cycle Waveform Generator
Product Description
The AD9850 is a highly integrated device that uses advanced DDS technology, coupled with an internal high-speed, high-performance D/A converter and comparator, to form a digitally programmable frequency synthesizer and clock generator function. When referring to the accurate clock source, the AD9850 generates a stable frequency and performs a phase-programmable digital analog output sine wave. The sine wave can be used directly as a frequency source, or internally converted into a square wave agile clock generator application. The AD9850's innovative high-speed DDS core accepts a 32-bit frequency tuning word. The result is a 0.0291 Hz tuning resolution input that outputs a 125 MHz reference clock.
Specification
|
item
|
value
|
|
Module model
|
AD9850
|
|
Module type
|
digital synthesis frequency source
|
|
Module power supply
|
DC-5V Type
|
|
Module current
|
70mA (MAX); normal drive current 65mA (TYP)
|
|
Module communication protocol
|
SPI serial or parallel
|
|
Module provides routines
|
STM32F103RCT6
|
|
Routine platform
|
STM32F103X-M3 KEIL5 version source code
|
|
Module system main frequency
|
180MHz (MAX)
|
|
DAC resolution digits
|
10 digits
|
|
Phase accumulator bits
|
32 bits
|
|
Module output interface
|
SMA; 24-hour salt spray anti-oxidation
|
|
Module output signals
|
sine wave, square wave; sine wave with 65MHz low-pass filter. Square wave coupling output.
|
|
Module output channel
|
2 channel differential; phase difference is 180 degrees, high frequency output will have phase shift due to filter
|
|
Signal characteristics
|
the sine wave has no coupling output; the output has its own DC component. If it is connected to RF equipment, please add a DC
blocker or use an oscilloscope to measure directly |
|
Max main frequency output sine wave signal range
|
1Hz-65MHz
|
|
The max main frequency output square wave signal range
|
1Hz-30MHz; above 10MHz, the oscilloscope input impedance is 50 ohms, and the square wave duty cycle is adjustable.
|
|
Output amplitude
|
sine wave 340mVpp (MAX) square wave 5Vpp; sine wave amplitude decreases with increasing frequency, square wave waveform changes
with increasing frequency |
|
Output impedance
|
75 ohms
|
|
Module features
|
multiple; high-performance DDS sine wave signal generator, high-order elliptic filter, Low noise regulator chip, etc.
|
|
Module application
|
multiple; frequency signal generation, sine wave, square wave signal generation, sensor excitation
|
|
Module specifications
|
70*50*12; length * width * height-PCB size
|
|
Module interface type
|
SMA signal output and external clock input, DC5.5 power socket XH2.54-14PIN double-row pin data interface
|

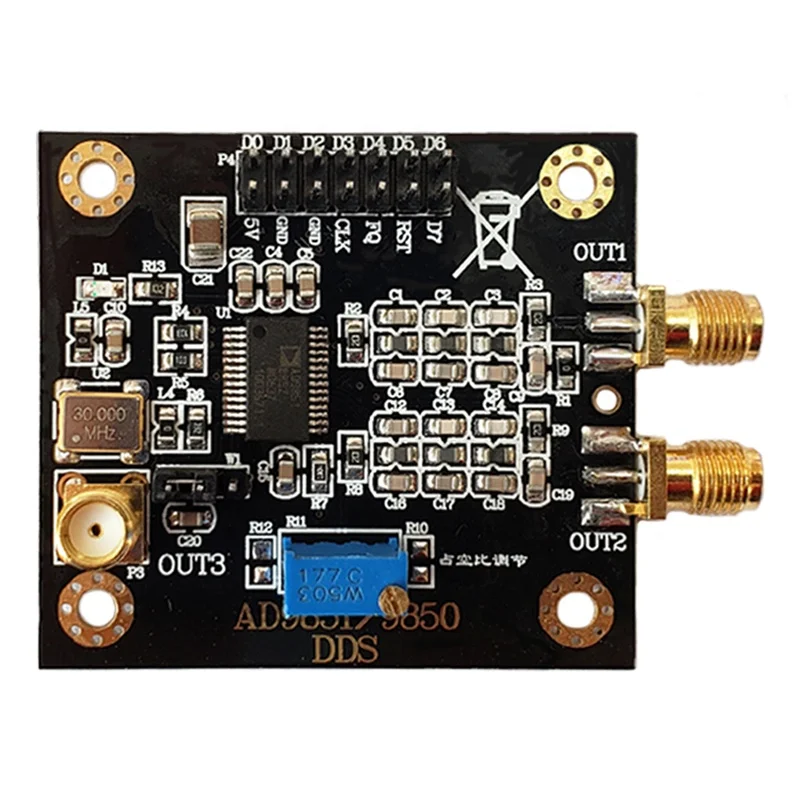

Details Images
