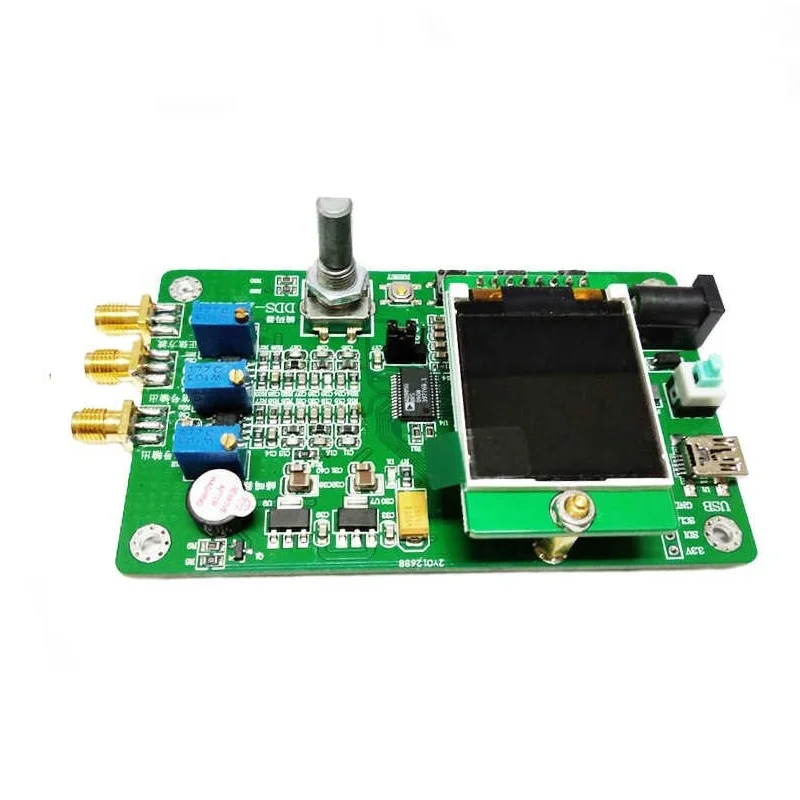

AD9850 DDS Module Square Wave Generator Duty Cycle Frequency Sweep Function Generator Function Signal Generator
Product Description
Highlights
AD9850 is a highly integrated device, using advanced DDS technology, built-in a high-speed, high-performance digital-to-analog converter and comparator, which together constitute a complete digital programmable frequency synthesizer and clock generator.
When the precise clock source is used as the reference, AD9850 can generate frequency phase programmable and analog output sinusoidal wave with pure spectrum.
The sinusoidal wave can be directly used as a frequency source or internally converted into a square wave suitable for agile clock generator applications.
Features
*125 MHz Clock Rate
*Phase modulation capability
*32-bit frequency tuner
*In-Chip High Performance DAC and High Speed Comparator
*Battrey Save
*Simplified Control Interface: Parallel Byte or Serial Load Format
*DAC SFDR > 50 DB (40 MHZ AOUT)
*Low power consumption: 380MW (125MHZ, 5V) 155MW (100MHZ, 3.3V)
Note: The above features are chip features, only used as customer choices, and different from module features.
*Phase modulation capability
*32-bit frequency tuner
*In-Chip High Performance DAC and High Speed Comparator
*Battrey Save
*Simplified Control Interface: Parallel Byte or Serial Load Format
*DAC SFDR > 50 DB (40 MHZ AOUT)
*Low power consumption: 380MW (125MHZ, 5V) 155MW (100MHZ, 3.3V)
Note: The above features are chip features, only used as customer choices, and different from module features.
Specification
|
item
|
value
|
|
Name
|
AD9850 High Speed DDS Module
|
|
Power supply
|
6 ~ 9V (recommended 6V)
|
|
Size
|
100mm * 60mm
|
Installation Instructions
1kHz sine wave and square wave
10kHz sine wave and square wave
100kHz sine wave and square wave
1MHz sine wave and square wave
10MHz sine wave and square wave
60MHz sine wave
