Description

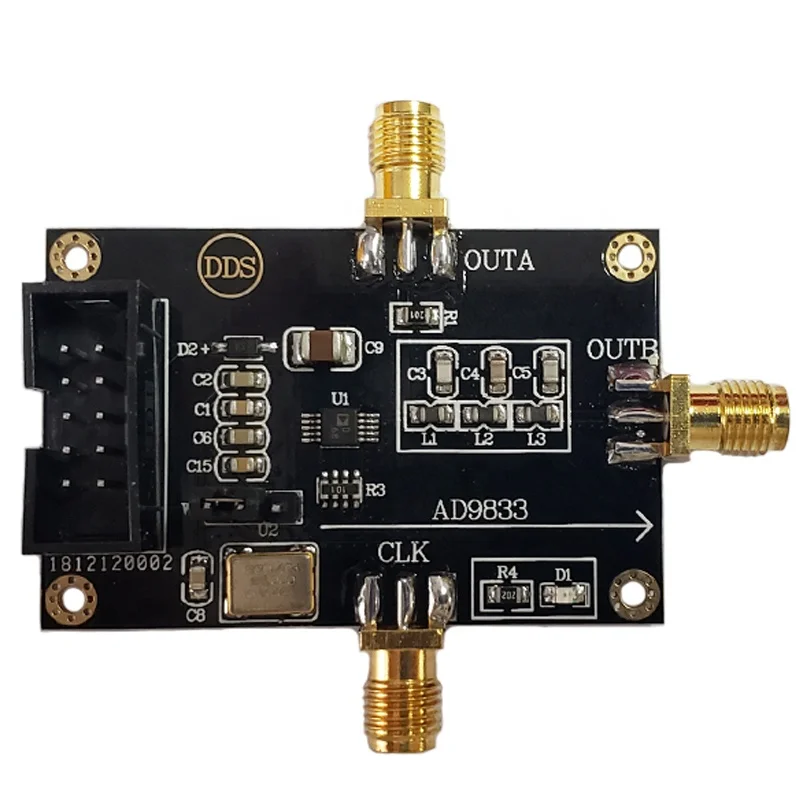

AD9833 Module Triangle Wave Sine Wave Signal Source Square Wave DDS Function Signal Generator Module
Product Description
AD9833 is a low-power, programmable waveform generator that can generate sine wave, arbitrary angle wave and square wave output Various types of detection, actuation, and time domain reflectometry (TDR) applications require waveform generators. The output frequency and phase can be programmed through software, which is easy to adjust. No external components are required. The frequency register is 28 bits; the clock rate is 25 MHz, and a resolution of 0.1 Hz can be achieved. Similarly, when the clock rate is 1MHz, the AD9833 can achieve a resolution of 0.004 Hz.
Specification
|
item
|
value
|
|
Module model
|
AD9833
|
|
Module type
|
digital synthesis frequency source
|
|
Module power supply
|
DC-5V Type
|
|
Module current
|
10mA (MAX); normal drive current 8mA (TYP)
|
|
Module communication protocol
|
SPI serial
|
|
Module provides routines
|
STM32F103RCT6
|
|
Routine platform
|
STM32F103X KEIL5 version source code
|
|
Module system main frequency
|
25MHz (MAX)
|
|
DAC resolution digits
|
10 digits
|
|
Phase accumulator bits
|
28 bits
|
|
Module output interface
|
SMA; 24-hour salt spray anti-oxidation
|
|
Module output signals
|
sine wave, square wave; sine wave with 9MHz low-pass filter
|
|
Module output channel
|
2 channel differential; B channel with filter, A channel directly output
|
|
Signal characteristics
|
Sine wave uncoupled output; The output comes with its own DC component, please add a DC block when connecting to radio frequency equipment You can also directly use the oscilloscope to measure.
|
|
Max main frequency output sine wave signal range
|
1Hz-9MHz
|
|
The max main frequency output square wave signal range
|
1Hz-1MHz; above 10MHz, The duty cycle of the square wave is not adjustable.
|
|
Output amplitude
|
sine wave 260mVpp (MAX) square wave 3.3Vpp; sine wave amplitude decreases with increasing frequency, square wave waveform changes
with increasing frequency |
|
Output impedance
|
200 ohms
|
|
Module features
|
multiple; High-performance DDS sine wave signal generator, low-noise voltage regulator chip, etc.
|
|
Module application
|
multiple; Frequency signal generation, sine wave, square wave signal generation, sensor excitation
|
|
Weight
|
12.7g
|
|
Module specifications
|
70*50*12; length * width * height-PCB size
|
|
Module interface type
|
SMA signal output and external clock input, DC5.5 power socket
XH2.54-1OPIN double-row pin data interface
|
Installation Instructions
Precautions
(1) The module is a low-power module, and the power supply does not exceed 5.5V. (2) Since the module is a high-precision device, in order to avoid unnecessary interference, it is recommended to use a linear power supply. (3) For output signal, it is recommended to use SMA to BNC cable to observe the effect directly with oscilloscope. Poor contact or inferior cable may cause signal attenuation or excessive noise. (4) The delivered code is only for the supporting main control board, no MCU tutorial is provided, and additional functions need to be developed by yourself. (5) If you need to simply test the function of the module, it is recommended to use it with the control panel of our store. First, power the DDS module, and then power the control panel to generate a waveform. Long press the middle button to switch the function.
