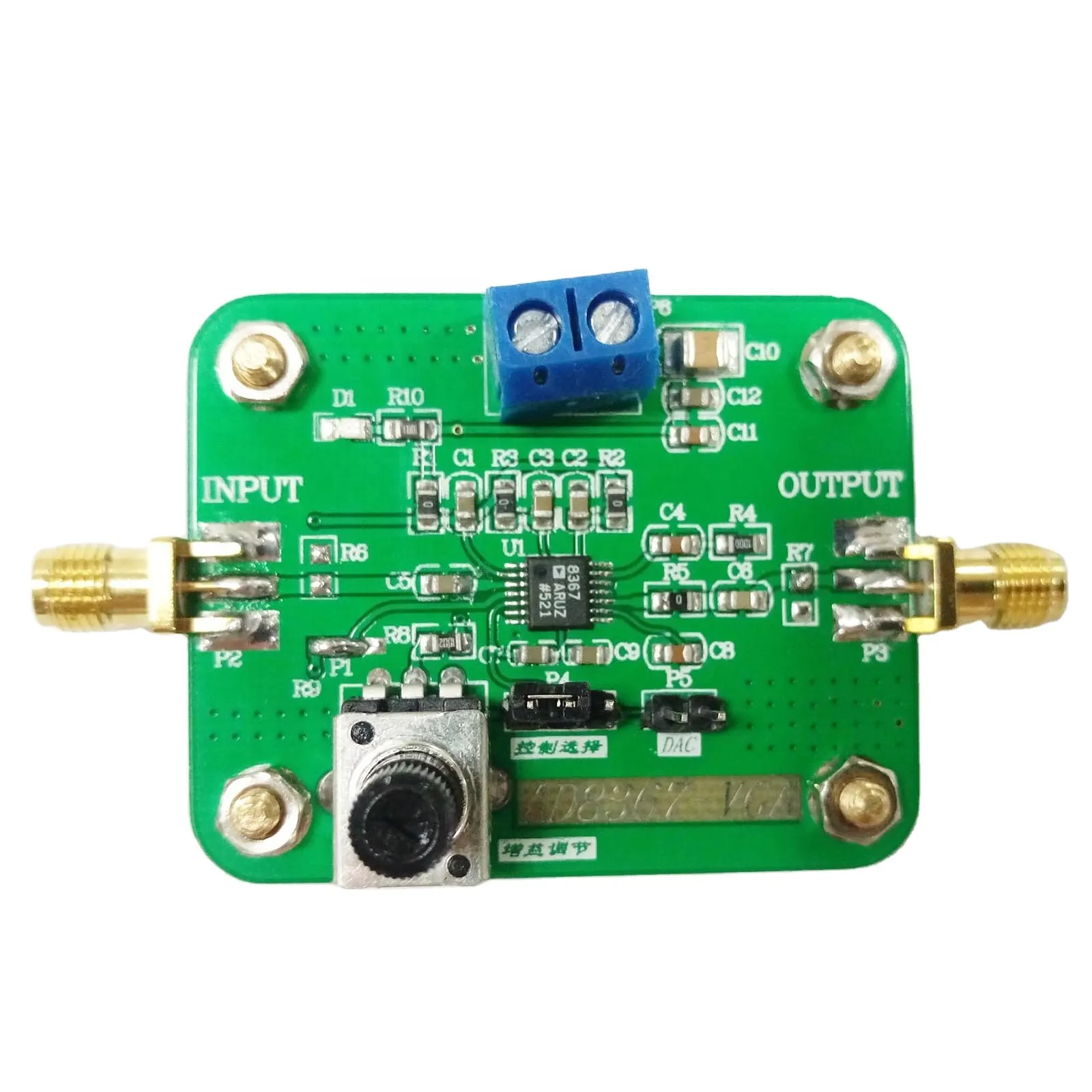

AD8367 500MHz Variable Gain High Speed Data I/O AGC Amplifiers Radio Frequency Amplifier MF HF VHF Linear Amplifier
Product Description
AD8367-VCA has excellent parameters and is suitable for intermediate frequency amplification and signal amplification within 300MHz, with high gain and excellent in-band flatness.
Specification
|
item
|
value
|
|
Name
|
AD8367 Variable Gain Amplifier
|
|
Size
|
50mm X 40mm
|
|
Supply voltage range
|
+5V
|
Installation Instructions
The sweep flatness test indicators are as follows: (input power -20dBm 50 ohm input and output matching, sweep bandwidth 300MHz)
|
10MHz
|
50MHz
|
100MHz
|
150MHz
|
200MHz
|
250MHz
|
300MHz
|
||||||||
|
Gain 32dB
|
31.11dB
|
31.11dB
|
31.58dB
|
31.81dB
|
31.81dB
|
31.16dB
|
28.6dB
|
|||||||
|
Gain 20dB
|
19.65dB
|
19.83dB
|
20.25dB
|
20.31dB
|
20.07dB
|
20.01dB
|
20.04dB
|
|||||||
|
Gain 10dB
|
9.85dB
|
9.78dB
|
10.55dB
|
10.60dB
|
10.23dB
|
10.04dB
|
10.02dB
|
|||||||
|
VCA8637 has good high-frequency characteristics, excellent in-band flatness, the layout circuit effectively suppresses the on-board self-excitation phenomenon, the control voltage is 0-1.2V, and the low gain bandwidth can reach 500MHz.
|
||||||||||||||
Input power -20dBm, test chart when testing 32dB 20dB 10dB gain: In-band flatness is less than 1.5dB
Remarks: Because AD8367 is a VCA chip that is prone to self-excitation, in actual use, due to the influence of capacitance resistance tolerance and board layout, the AD8367 is prone to self-excitation when it exceeds or approaches the maximum VCA control voltage of 1.2V. It is impossible to see the dominant frequency signal with an oscilloscope. Only a vector network analyzer and a spectrum analyzer can see the maximum gain of 42dB of the AD8367.
