Description

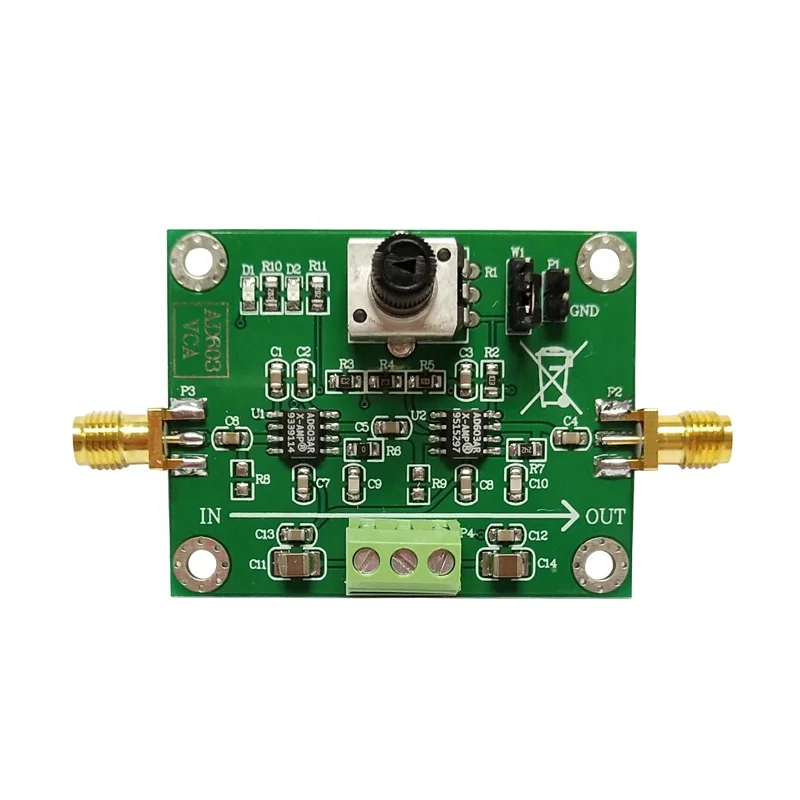

AD603 Low Noise Variable Gain Amplifier VCA Module Voltage Controlled Variable Gain Amplifier Circuit
Product Description
This amplifier module is a voltage controllable gain amplifier. It consists of two AD603 cascade amplifiers. It can amplify the signal voltage well. The maximum gain can be adjusted by 80dB. The user can choose DA input control or manual sliding control.
Specification
item
value
Name
AD603 Voltage Controllable Gain VCA Module
Size
50mm * 39mm
Supply Voltage Range
±5V
Installation Instructions
The configuration relationship between bandwidth and gain:
