Specifications:
AC 9V TO DC -5V/+5V Converter:
IC: 7805/7905
Input AC 9-12V(12W),Output DC -5V/+5V
Maximum output current: +5V 600MA;-5V 600MA
AC 15V TO DC -12V/+12V Converter:
IC: 7812/7912
Input AC 15-18V(12W),Output DC -12V/+12V
Maximum output current: +12V 400MA;-12V 400MA
AC 18V TO DC -15V/+15V Converter:
IC: 7815/7915
Input AC 18-24V(12W),Output DC -15V/+15V
Maximum output current: +12V 300MA;-12V 300MA
Size: 55mm×42mmx23mm
Weight: 42g
12W Single-phase isolated dual output AC power transformer
Input Voltage: AC 220V 50Hz
Output Voltage: 9V/15V/18V(Dual output)
Output Power: 12W(9V 0.66A;15V 0.4A;18V 0.33A)
Input/Output Lead length: 170MM
Size: 50mm×28mmx44mm
Weight: 410g
Applications:
ADC/DAC/Operational Amplifier
RS232 RS485 RS422 Bus
Audio equipment
LCD power supply
Instrumentation equipment
ARM STM32 MCU Board
Audio power amplifier Power amplifier
Motor Power
Instrumentation multimeter
Wifi/Router/Ethernet devices
Note:
1.Due to the light and screen difference, the item's color may be slightly different from the pictures.
2.Please allow 1-3cm differences due to manual measurement.
Package Includes:

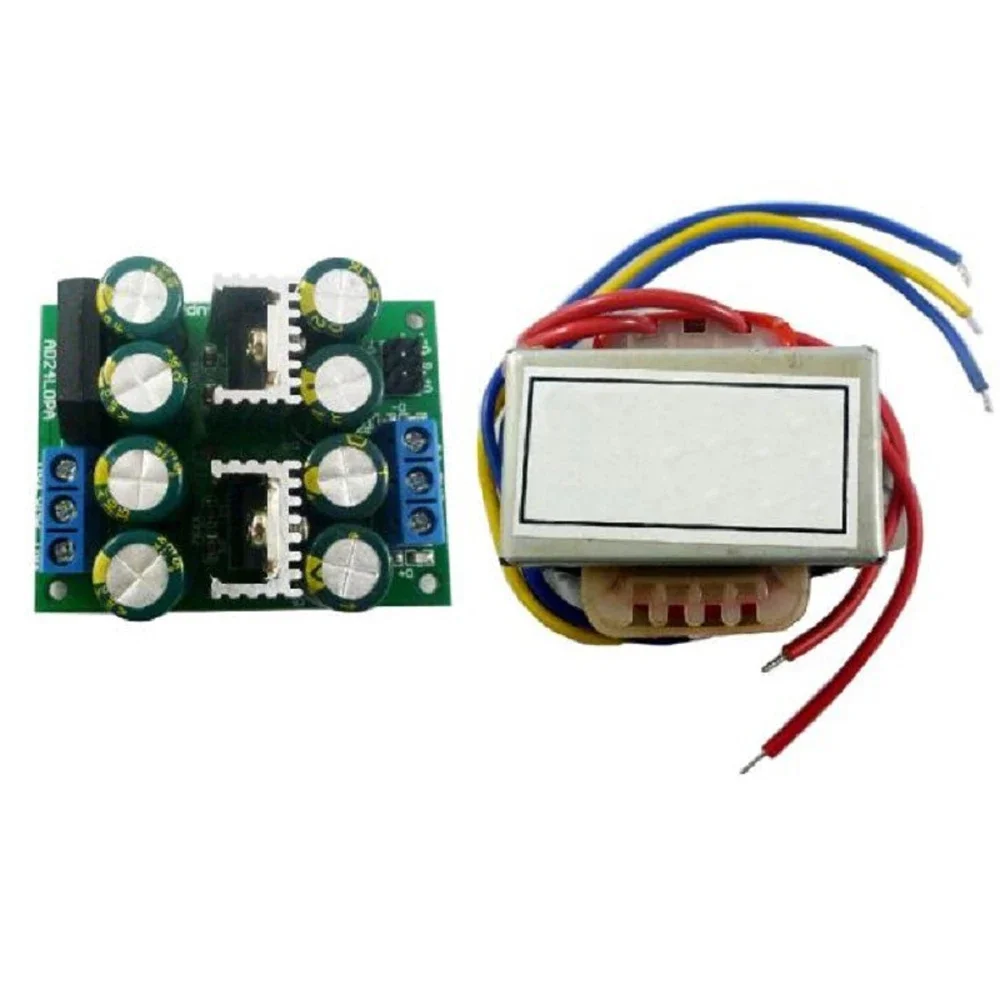

1x Power Supply Kit
