Acoustic Components Thin Rectangular Mini Speaker 16*9MM Dynamic Speaker Electronic Components Micro Speaker Component
Product Description
Good sound quality 1609 composite membrane speaker 16*9mm rectangular ultra-thin 0916 speaker speaker
Specification
|
TYPE
|
Dynamic speaker
|
|
OUT SIDE SIZE
|
16*09mm , Shown Fig.3
|
|
IMPEDANCE
|
8ohm ±20%at 1 KHz,2.0Vms Sine Wave
|
|
RESONANCE FREQUENCY
|
800±20%Hz at 1.0v Sine wave
|
|
SENSITIVITY (S.P.L.)
|
88dB ±3dB at 0.5w/ 0.1m: 0.5.0.6.0.8.1.0×100Hz average
|
|
RATED / MAX. POWER
|
0.5w / 0.7w
|
|
FREQUENCY RANGE
|
f~20kHz
|
|
DISTORTION
|
Less than 10 %at 1000Hz0.5 w
|
|
UNIT WEIGHT
|
3.0g±0.1g
|
|
MEASURING DIAGRAM
|
Shown in Fig.1
|
|
FREQUENCY RESPONSE
|
Shown in Fig.2
|
|
OPERATING TEMPERATURE
|
- 30℃~+65℃
|
|
STORAGE TEMPERATURE
|
- 30℃~+65℃
|
|
OPERATION TEST
|
No one should perceive noise of sine wave 2.0v of 0.35kHz ~
|

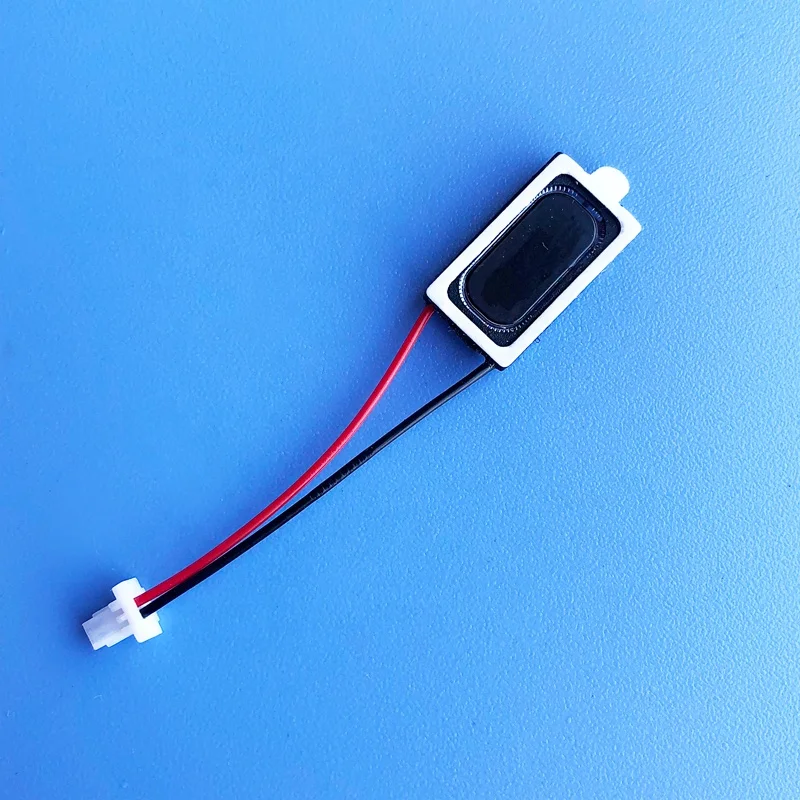

Details Images
