Description

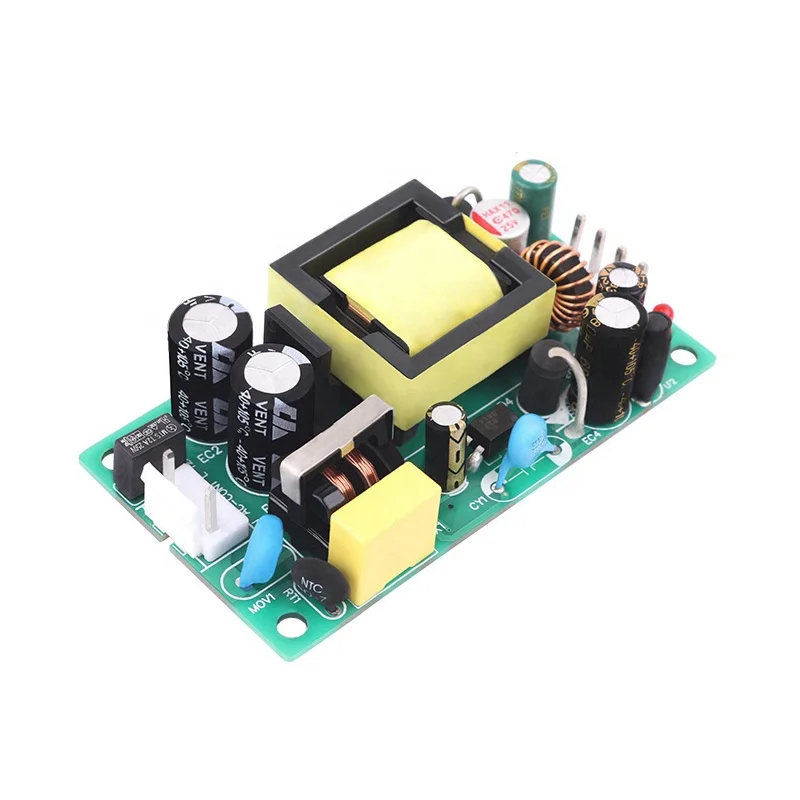

AC110/220V to DC12V1A/24V0.5A 5V2A 12W Isolation Dual Output Switching Power Supply Stabilized SMPS Power Supply Board
Product Description
Feature
100V-264V voltage input With overload, short circuit, over temperature protection function Natural wind blows cold Output two-way isolation, and isolation 1KV AC-DC isolation withstand voltage 3KV High output power accuracy
Specification
|
Model
|
12V + 5V
|
24V + 5V
|
||||||
|
Main road (V1)
|
Secondary road (V2)
|
Main road (V1)
|
Secondary road (V2)
|
|||||
|
Output
|
Output voltage
|
12V
|
5V
|
24V
|
5V
|
|||
|
Rated current (natural cooling)
|
1A
|
2.4A
|
0.5A
|
2.4A
|
||||
|
Current range (natural cooling)
|
0~1A
|
0~2.4A
|
0~0.5A
|
0~2.4A
|
||||
|
Rated power (natural cooling)
|
12W
|
12W
|
12W
|
12W
|
||||
|
Ripple (maximum)
|
50mVp-p
|
50mVp-p
|
50mVp-p
|
50mVp-p
|
||||
|
Voltage accuracy
|
±1%
|
±1%
|
±1%
|
±1%
|
||||
|
Linear adjustment rate
|
±1%
|
±1%
|
±1%
|
±1%
|
||||
|
Load Regulation
|
±1%
|
±1%
|
±1%
|
±1%
|
||||
|
Full load efficiency
|
80%
|
80.5%
|
±1%
|
|||||
|
Voltage adjustment range
|
Not adjustable
|
|||||||
|
Input
|
Start, rise time
|
1500ms, 30ms/230VAC 2500ms, 30ms/115VAC (at full load)
|
||||||
|
voltage range
|
AC100V ~ AC264V
|
|||||||
|
Frequency Range
|
47 ~ 63Hz
|
|||||||
|
AC current (Typ)
|
<0.6A no load less than 0.9W
|
|||||||
|
Inrush current (Typ)
|
Cold start: 30A/230VAC
|
|||||||
|
Leakage current
|
<5mA@230Vac
|
|||||||
|
Protect
|
Over power protection
|
110% ~ 180% rated power, automatic recovery after fault removal
|
||||||
|
Dc short circuit protection
|
Intermittent hiccups in the power supply to eliminate short-circuit power recovery (the auxiliary circuit has no protection
function) |
|||||||
|
Over temperature protection
|
PWM chip node temperature> 115℃ close control
|
|||||||
|
environment
|
Working temperature/humidity
|
-20°C~ + 60°C@ 100%LOAD, + 60°C@60%LOAD: 20% ~ 90%RH
|
||||||
|
Storage temperature and humidity
|
-20°C~ + 85°C 10%-90%RH
|
|||||||
|
Safety electromagnetic compatibility
|
safety regulations
|
MEET Gb4943
|
||||||
|
Withstand voltage
|
I/P-O/P: 3KVAC /P-O/P: 1.5KVac O/P-FG: 0.5KVac 1min
|
|||||||
|
Insulation resistance
|
I/P-O/P: I/P-F/G: O/P-FG: 0.5KVac ohms
|
|||||||
|
Other
|
Dimensions L*W*H
|
76*40*22.2mm (L*W*H)
|
||||||
|
Weight
|
About 57g
|
|||||||
Details Images
