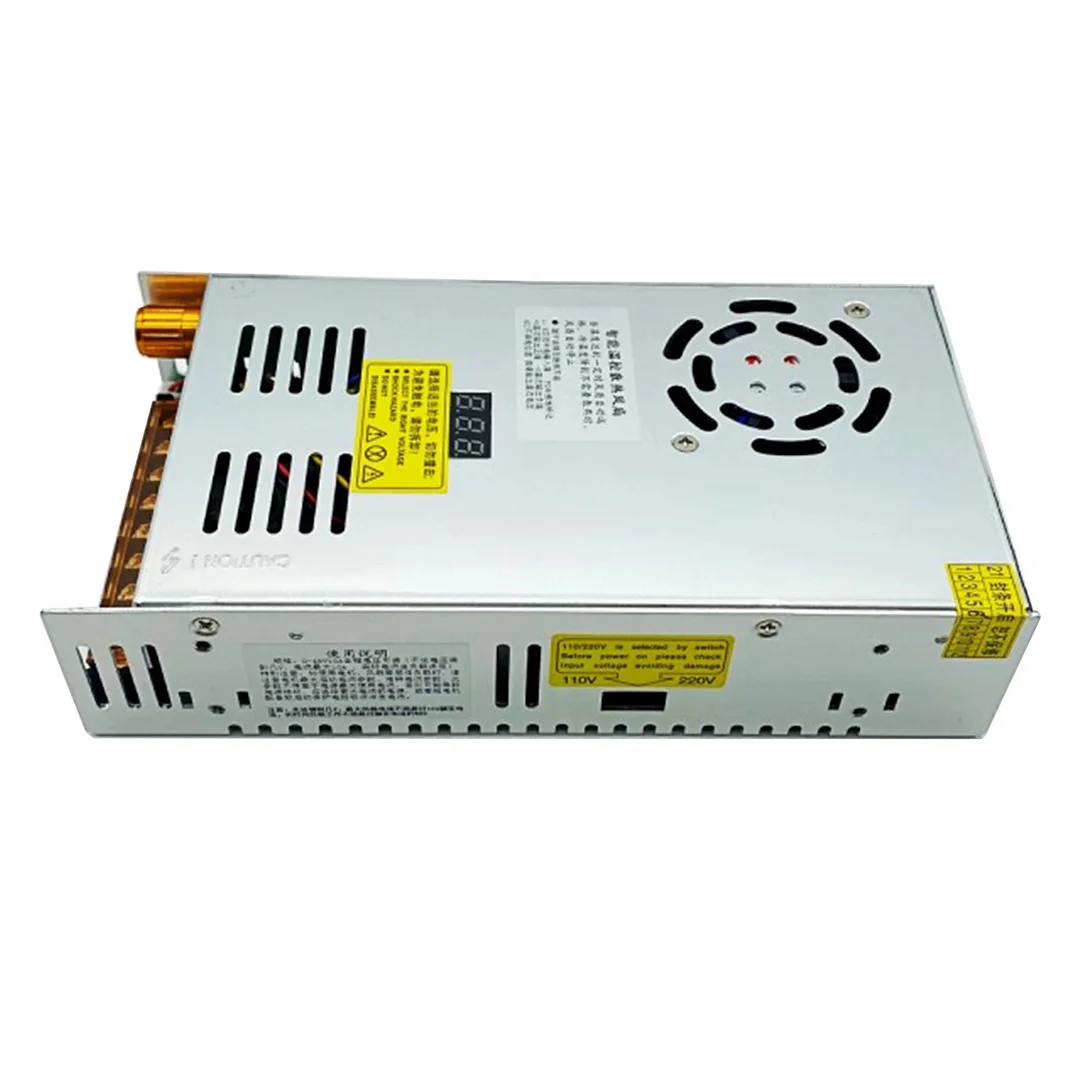

AC DC 5V 12V 24V 36V 48V Adjustable Switching Power Supply 60V 80V 120V 160V 220V 300V 480W With Digital Display Power Supply
Introduction
First, technical performance indicators
1. Output voltage range: 0-5V(Adjustable up to 8V) continuously adjustable output current: 0-60A
1. Output voltage range: 0-5V(Adjustable up to 8V) continuously adjustable output current: 0-60A
Output voltage range: 0-12V(Adjustable up to 15V) continuously adjustable output current: 0-40A
Output voltage range: 0-24V(Adjustable up to 27V) continuously adjustable output current: 0-20A
Output voltage range: 0-36V(Adjustable up to 38V) continuously adjustable output current: 0-15A
Output voltage range: 0-48V(Adjustable up to 50V) continuously adjustable output current: 0-10A
Output voltage range: 0-60V(Adjustable up to 62V) continuously adjustable output current: 0-8A
Output voltage range: 0-80V(Adjustable up to 82V) continuously adjustable output current: 0-6A
Output voltage range: 0-120V(Adjustable up to 122V) continuously adjustable output current: 0-4A
Output voltage range: 0-160V(Adjustable up to 162V) continuously adjustable output current: 0-3A
Output voltage range: 0-220V(Adjustable up to 222V) continuously adjustable output current: 0-2.2A
Output voltage range: 0-300V(Adjustable up to 305V) continuously adjustable output current: 0-1.6A
2, Ripple voltage; no more than 100mV
3, The equivalent internal resistance of the regulator: not more than 0.O5Ω
4, Brand:Lincoiah
5, with short circuit, overload protection, automatic recovery function
Input voltage: AC110V/220V±15%
Rated power: 480W
Product size: 21.5CM (length) * 11.5CM (width) * 5CM (height),
The Output current depends on the load ,can't more than the max output current
Instructions for use:
Uses: Mainly used in various DC equipment, DC motor stepless speed regulation, LED stepless dimming, chemical electroplating speed regulation, scientific research test, student experiment, etc., and a wide range of uses.
Special attention: If using inductive load such as motor or fan, please pay attention to the motor starting current parameter. This parameter must not be higher than the power supply current. Otherwise, the power supply may be damaged. You should select a higher current power supply or provide soft start protection for the motor. The circuit absorbs the inrush current.
Power formula) voltage X current = power
Terminal description and wiring method
L, N AC input terminal FG ground mark V+ DC output positive terminal
V-DC output negative terminal ADJ adjustable potentiometer Fine-tuning output DC voltage
Full voltage input
Miniaturization
Protection function Short circuit / overload / over voltage
100% full load aging test
Input Voltage & Frequency Range----------110V/220VAC/47 ~ 63Hz
Start surge current ---------------20A@120VAC (cold start)
Output adjustment range --------------- ±100% (rated output voltage)
Overload protection -------------------105%~200% (rated load), self-recovery
Overvoltage protection -------------------115%~135% (rated output voltage)
Short circuit protection ------------------- self-recovery
Output start time --------------- ≤ 2S@120VAC ≤1.0S@230VAC
Output hold time --------------- ≥ 10mS@120VAC, ≥20mS@230VAC
Insulation strength ------------------- Input - Output: AC1500V, 1min
Input - housing: AC1500V, 1min
Output - Case: DC500V, 1min
Working environment ------------------ -10 ° C ~ 50 ° C; 20% ~ 90% RH (no condensation)
