Description
Product Description

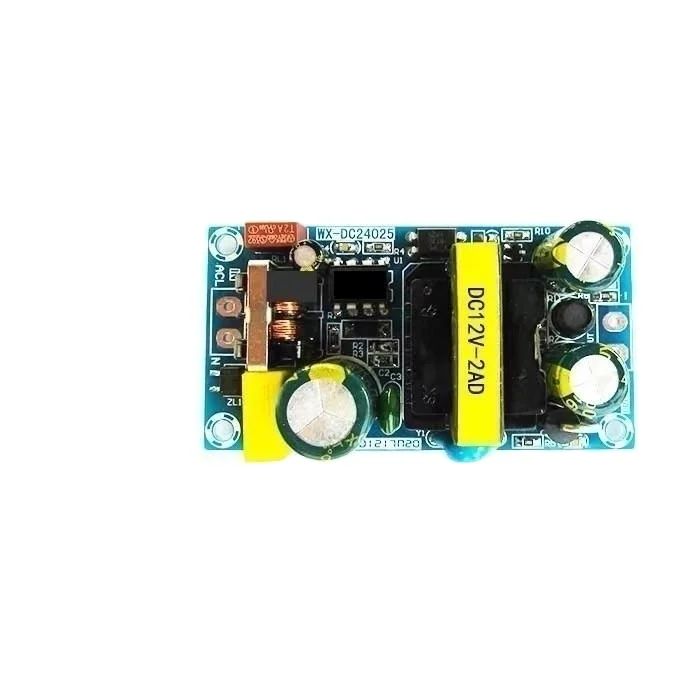

AC-DC 12V 2A 24W Switching Power Supply Module Bare Circuit 100-26 5V to 12V 2A Board for Replace/Repair 24V 1A
Product Description 1. The product is easy to install, and the input and output can be welded with 5.08 terminals or pins. 2. Onboard M3 fixing holes can be fixed with screws to prevent movement or Vibration. 3. Universal input voltage AC100-265V, strong versatility. 4. High efficiency, strong design density; small size, convenient for your installation. 5. High isolation between input and output, low output ripple. 6. Overload, short circuit and over temperature protection.
Product Parameter Product name : switching power supply board Power protection : overload , short circuit . over temperature protection Voltage input : AC100-265V Frequency input : 50HZ-60HX Output voltage : 24V version DC 24V,12V version DC 12V Output current : 24V version rated 1A ( peak 1.5A protection ) 12V version rated 1A ( peak 2A ) Output power : 24V version 24W 12V version 12W Module size : 69 * 36 * 25mm
