AC/DC 12-48V 433Mhz 1 channel 10A relay RF wireless receiver switch for learning code fixed code remote control

$6.00
Use : 315Mhz
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
Products Description

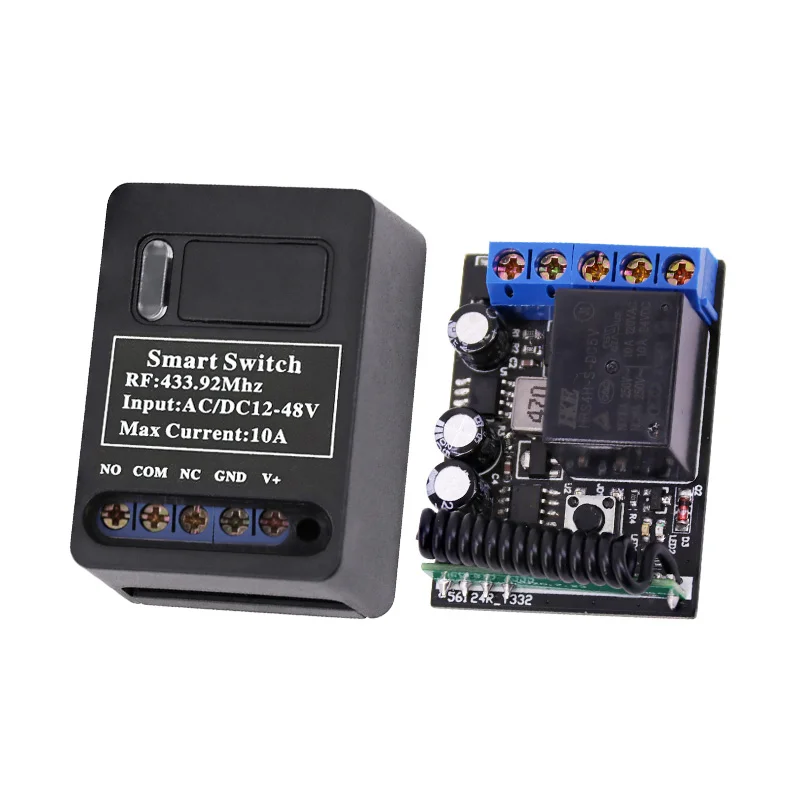

DC12-48V Wide Voltage Controller 1CH RF 433Mhz Relay Wireless Remote Swtich Control LED Light Electric Motor
Tech Spec:
---Working voltage : DC 12V~48V
--- Quiescent Current : <10mA
--- Max current : <10A
--- Quiescent current:< 7mA
--- RF frequency : 433MHz
--- Working temperature : -10~+60°C
--- PCB size:43*32*12mm
--- Case size:51*31*23mm
--- Receiving Sensitivity : >108dbm
--- Support encoding : eV1527 Leaning code,SC2262/P2262/Fixed code
--- RF Operating mode : ASK superheterodyne wireless reception
--- Remote operating mode : Momentary Mode(M4) / Toggle Mode(T4) /Latched Mode (L4)


About Working mode:
----Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.
---Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.
---Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.
