9767 Pickup Transducer Microphone Capsule Vibrator Microphone Omnidirectional Conference Electret Microphone with Pin

Omnidirectional Conference Electret Microphone
$1.09
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description

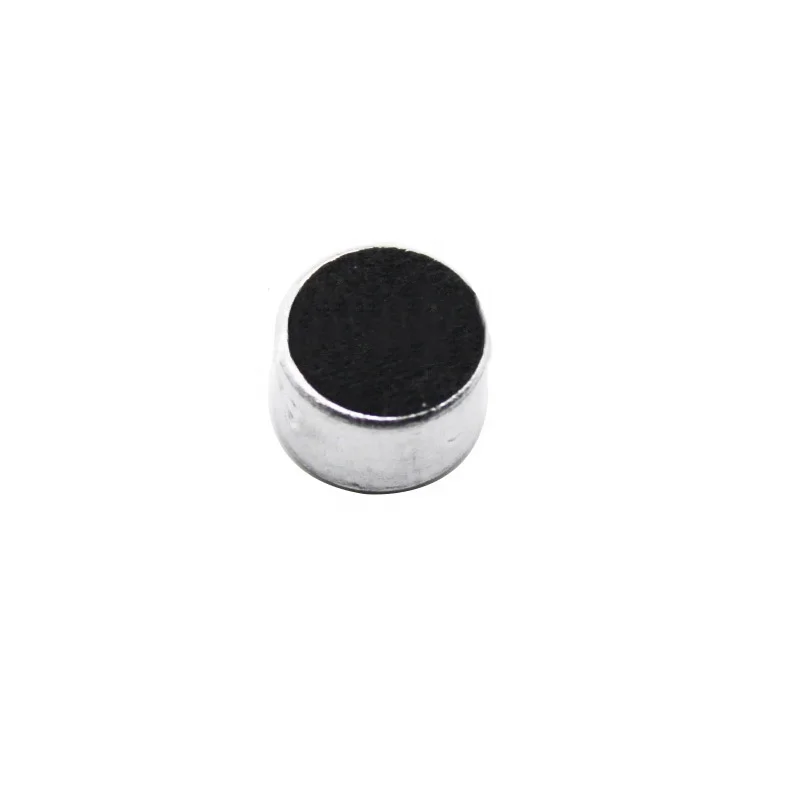

Highly Sensitive 9mm Pickup vibration Omnidirectional Conference Microphone Capsule Electret Condenser Microphone
Product Description
The microphone head is an acoustic-electrical conversion device (also known as a transducer or sensor), which is the exact opposite of the speaker (electrical→acoustic). It is the two terminals of the sound device, the microphone is the input and the speaker is the output.
Product Paramenters
Dimensions
9.7x6.7mm
Sensitivity (0dB=1v/Pa 1000Hz)
48~66dB
Frequency range
50~20KHz
Directivity
Omnidirectional
Impedance
low impedance
Current consumption
Maximum 500uA
Standard operation voltage
3V
Operation voltage range
1.5~10V
S/N ratio
Greater than 58dB
Sensitivity reduction
Voltage change 1.5V sensitivity change less than 3dB
Details Images
