9-60V 20A PWM DC Motor Controller Forward Reverse PWM Control Board 1200W High Power PWM Controller for Brush Motor
Product Description
The speed governor can control the speed of the motor from the original 0% to 100%. The technology is extremely advanced, the efficiency is high, the torque is large, and the heat generation is small. It has been widely used in industrial production.
Specification
|
item
|
value
|
|
Input voltage
|
DC9-60V
|
|
Output voltage
|
linear under load
|
|
Output current
|
0-20A
|
|
Continuous power
|
1200W
|
|
Speed control type
|
flow regulation
|
|
Speed control mode
|
potentiometer (linear)
|
|
Speed range
|
0 - 100%
|
|
Control frequency
|
25KHZ
|
|
Forward and reverse
|
support
|
|
Suitable motor
|
DC brush
|
|
Module size
|
length*width*height 92MM*52MM*36MM
|
|
Product net weight
|
155 grams
|
|
According to installation size
|
center distance 104MM
|
|
Potentiometer according to the installation hole
|
7MM
|
Note
Electric vehicles cannot be used, including electric vehicle motors The input voltage must be positive and negative, and 220V household electricity cannot be input The input voltage should be equal to the rated voltage of the motor (within 10-55V) Such as motor rated voltage 12 input 12V motor 36V input 36VInstallation Instructions

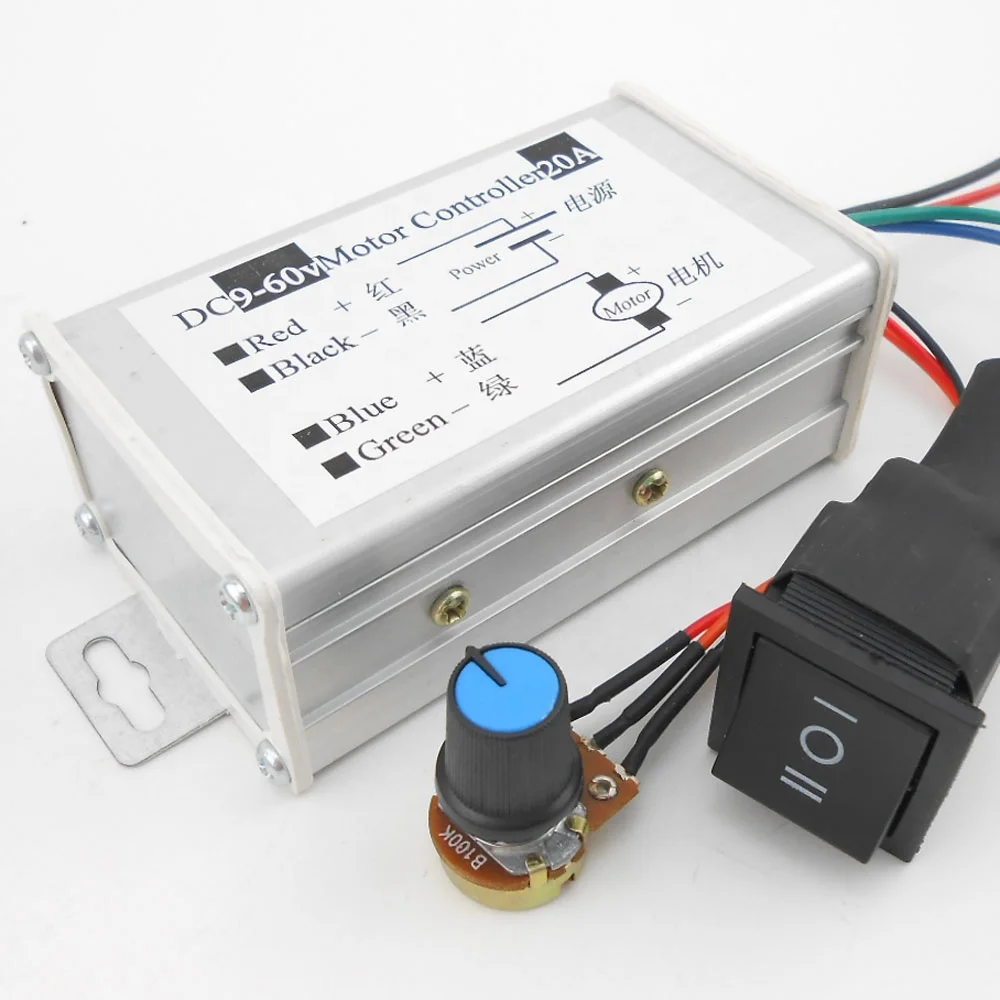

Power wiring
Red thick - power input positive Black and thick - power input negative Blue thick - connect to the motor positive Thick green - connect to the negative pole of the motor
Notice
The input voltage must be divided into positive and negative, can not input 220V The input voltage should be equal to the rated voltage of the motor within 9-60V DC
