Description

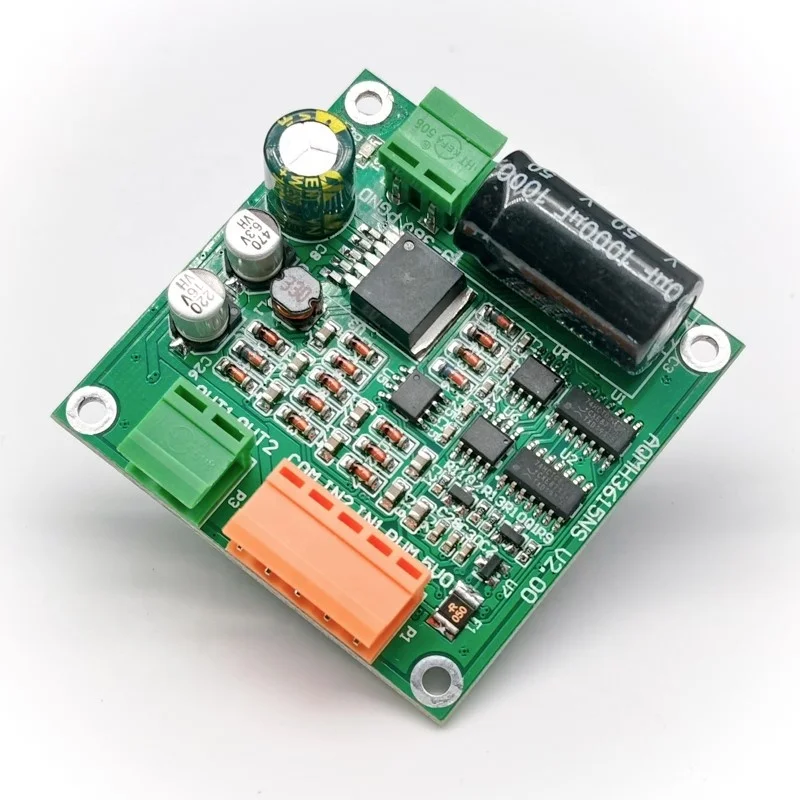

9-36V 12A 540W Full PWM Pulse Motor Driver H Bridge Motor Controller DC Forward Reverse Motor Control Driver Board
Product Description
Suitable motor parameters
(Users are requested to do simple heat dissipation or thick and large heat dissipation according to the motor parameters) Motors with a rated voltage of 36V: suitable for motors with a rated power of 300W and below or a rated current of 12A or less for a long time without heat dissipation; motors with a rated power of 300W to 370W or a rated current of 12A to 15A need to be treated with simple heat dissipation; 370W～500W or marked rated current 15A～20A motor needs to be thick and large heat dissipation treatment; A motor with a rated voltage of 24V is suitable for a motor with a rated power of 200W and below or a motor with a rated current of 12A or less for a long time without heat dissipation; a motor with a rated power of 200W to 250W or a rated current of 12A to 15A needs to do simple heat dissipation treatment; the rated power is marked with a simple heat dissipation treatment. 250W～330W or marked rated current 15A～20A motors need to do thick and large heat dissipation treatment; A motor with a rated voltage of 12V is suitable for a motor with a rated power of 70W and below or a motor with a rated current of 12A or less for a long time without heat dissipation; a motor with a rated power of 70W to 90W or a rated current of 12A to 15A needs to do simple heat dissipation treatment; the rated power is marked with a simple heat dissipation treatment. 90W～120W or marked rated current 15A～20A motor needs to be thick and large heat dissipation treatment; (This driver does not have a rated current of 12A for heat dissipation. The rated current of 12A~15A needs to be used for simple heat dissipation, and 15A~20A needs to be used for thick heat dissipation. The rated power marked on the motor generally refers to the output power. Considering the motor work loss, the rated current is calculated. When considering the motor efficiency, rated current = rated power/rated voltage/efficiency)
Feature
Very small size, only 5.5cm x 5.5cm Support voltage range 6.5-40V, under voltage protection Maximum load current 12A (without heat dissipation), 15A (simple heat dissipation), 20A (thick large heat sink); instantaneous peak current 110A Three-wire control for speed regulation, forward and reverse rotation and braking Support full PWM, you can directly use the buttons to control the forward and reverse rotation, the effective range of PWM is 0.1%~100.0% 5V power supply for microcontroller Interface ESD protection Scope of application: large car, robot, various control
Note: It is recommended to connect a 20A fuse in series with the power supply.
Specification
|
Item
|
parameters
|
Remarks
|
|
Motor power input voltage
|
DC6.5V~40.0V
|
Power supply positive and negative do not reverse, the voltage should not exceed40V, otherwise it may burn the
|
|
maximum load current
|
12A (no heat)
15A (simple heat dissipation) 20A (thick Large heat sink) |
Simple heat dissipation—If you put a 1mm thermal silica gel pad under the module and then use 5mm copper column to fix the module
to the equipment wall. |
|
Output power
|
12V 180W
24V 360W 36V 540W |
Assume simple heat dissipation, maximum long-term load current is 15A In the case of
|
|
peak current
|
110A,
|
this is the maximum current that the MOS tube can withstand for a short period of time.
|
|
5V power supply maximum output current
|
500mA
|
0.5A self-recovery fuse
|
|
control signal high level voltage (VHI)
|
2.0V ~ 5.5V
|
compatible 3.3V and 5V TTL level
|
|
low-level voltage control signal (VLI)
|
0V ~ 0.8V
|
when thefloating0V to
|
|
current control signal
|
50uA
|
is a control signal voltage5Vof
|
|
PWM the effective range of
|
0.1 to 100.0%
|
|
|
with PWM frequency range
|
0 ~ 100kHz(recommended 20kHz)
|
|
|
PWM pulse minimum effectivewide
|
200ns
|
|
|
operating temperature
|
-25°C ~85°C
|
Installation Instructions
Drive logic
COM is the signal ground, 5VO is the 5V output, which can provide 5V power for controllers such as single-chip microcomputers; the PWM pin can be connected to an external PWM, if the button control method is used, the PWM pin should be connected with 5VO; IN1 and IN2 are the forward and reverse rotation of the two-way motor , Brake (or brake) control signal. Control logic table below. Among them, 0 is low level, 1 is high level, × is any level, and it is low level when floating.
|
IN1
|
IN2
|
PWM
|
OUT1、OUT2
|
|
0
|
0
|
×
|
Brake
|
|
1
|
1
|
×
|
Dangling
|
|
1
|
0
|
1
|
Full speed forward
|
|
0
|
1
|
1
|
Full speed reverse
|
|
1
|
0
|
PWM
|
Forward speed regulation
|
|
0
|
1
|
PWM
|
Reverse speed regulation
|
Note: When the PWM is 100% (that is, the PWM pin is always at a high level), if you want to change the rotation direction of the motor, you should first brake for more than 0.1s and then give a reverse signal, otherwise the reverse electromotive force of the motor may cause the power supply voltage. The sudden change makes the driver chip enter the protection state and does not work; for the non-full PWM state, if you want to change the rotation direction of the motor, it is best to brake for more than 0.1s before giving the reverse signal, so as to avoid large fluctuations in the power supply voltage.
Wiring method
Wiring method of using single chip microcomputer to control motor rotation The wiring method of using a single chip microcomputer to control the rotation of the motor is shown in Figure 1.6. The power supply of the MCU is connected to the COM of the drive module; the PWM pin is connected to the PWM output of the MCU for speed regulation; IN1 and IN2 are connected to the two IOs of the MCU to control the forward and reverse rotation of the motor and braking; 5VO can provide 5V power for the MCU.
Use the button to control the motor forward and reverse wiring method Use the wiring method to control the forward and reverse rotation of the motor as shown in Figure 1.7. Among them, PB1 and PB2 are two buttons. When PB1 is pressed and PB2 is not pressed, IN1 is high level, IN2 is low level, the motor is running forward; when PB2 is pressed but PB1 is not pressed, IN1 is low level, IN2 is high level, The motor is reversed; when both PB1 and PB2 are bounced, IN1 and IN2 are both low, and the motor is braked (or braked)
