8DI-8DO 16DI 16DO RS485 Isolated Communication MODBUS RTU PLC Expansion Board Digital Input & Output DC 9-24V Relay Module

$24.00
Specification : 8I8O
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
Product Description

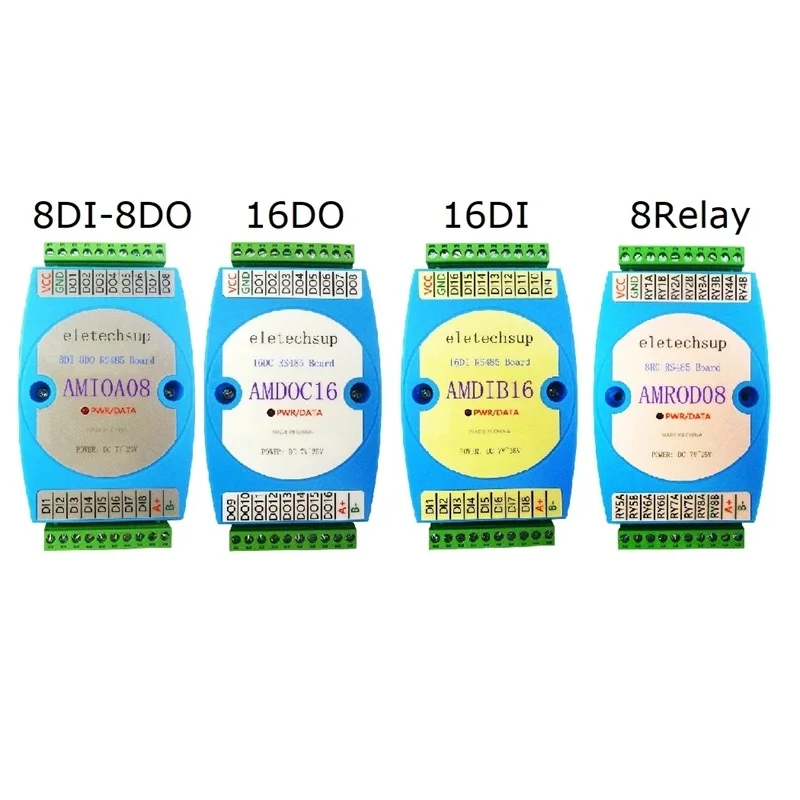

8DI-8DO 16DI 16DO RS485 Isolated Communication MODBUS RTU PLC Expansion Board Digital Input & Output DC 9-24V Relay Module





Introduction



1 Product description

8/16ch optoelectronic isolation digital input channel (NPN/PNP Low level input)
8/16ch optoelectronic isolation digital output channel (ULN2803 NPN output)
RS485 MODBUS RTU standard communication protocol
Netted with configuration software, PLC or industry touch panel
Communication circuit designed for thunder protection and interference immunity
Used for signal collection and control in industrial field


2 Specification

1 Working voltage: DC 7-25V (9V 12V 24V)
2 Working current: 8-50MA
3 8 optically isolated input ports (NPN active low)
4 8 Darlington tube outputs (ULN2803 NPN output), the maximum load current of each channel is 300MA
5 RS485 communication isolation protection 3000VDC, DI digital input port isolation protection 3000VDC
6 Standard MODBUS RTU command (function code, 05/06/15/16 Write, 01/02/03 Read )
7 Baud rates: 1200 2400 4800 9600 (default) 19200 38400 57600 115200
8 Parity bits: None (default) /Even /Odd
9 Installation method Standard DIN rail installation
10 Dimensions 125×70×30mm
11 Weight: 114 grams


3 Interface definition(8I8O):

VCC : Power input+
GND: Power input-
DO1: digital output channel 1
DO2: digital output channel 2
DO3: digital output channel 3
DO4: digital output channel 4
DO5: digital output channel 5
DO6: digital output channel 6
DO7: digital output channel 7
DO8: digital output channel 8
DI1 : Digital input channel 1
DI2 : Digital input channel 2
DI3 : Digital input channel 3
DI4 : Digital input channel 4
DI5 : Digital input channel 5
DI6 : Digital input channel 6
DI7 : Digital input channel 7
DI8 : Digital input channel 8
A+: RS485 signal A+
B-: RS485 signal B-

For more information, please contact me

Application

PLC Output expansion board
Smart Home,Home Automation ,Wiser Home;

PTZ CCTV Camera
Security Monitoring
Identification system;
Motor FW & BW
Automatic curtain control


1 Digital Input Wiring Diagram
2 Digital output wiring diagram


Note: The Darlington tube has only two states of ''high resistance'' and ''conduction'', and the output level cannot be measured with a multimeter.







RS485 Networking Diagram







Modbus Rtu Register:
