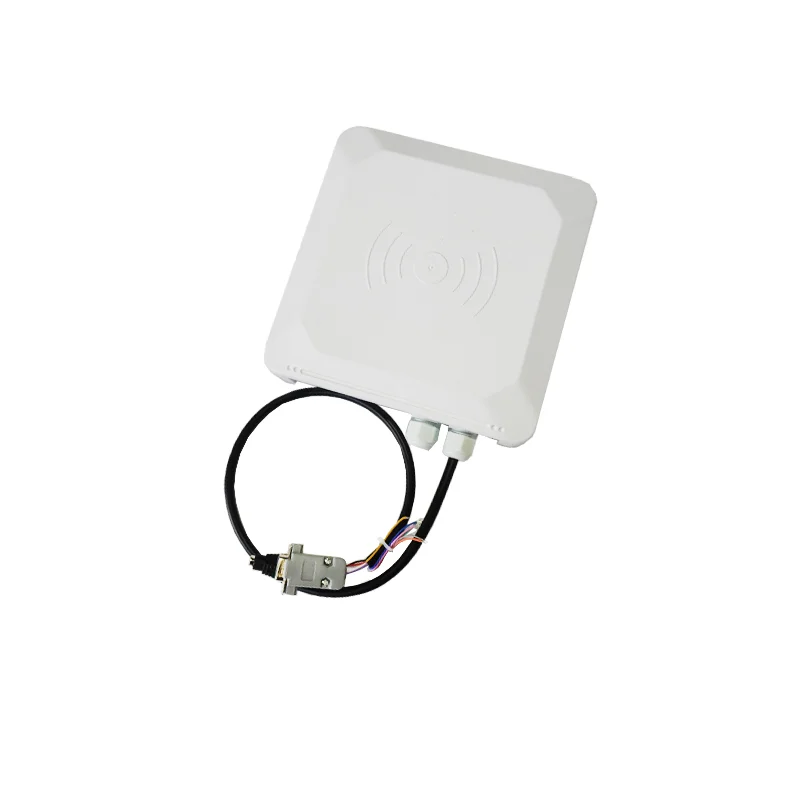

8dbi UHF R2000 High Performance Integrated RFID Reader Parking lot management free sdk

$199.00
Special Features : Waterproof / Weatherproof
Communication Interface : relay
Customized Support : OEM, ODM
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description

General Description:

   It is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on efficient DSP algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.

 Application:

Vehicle no-stop toll management (car parking lot)

Trash Can management

Logistics  management



Other field:

Club management

Library management

School and factory access control

Attendance management and more

Features:

1. Self-intellectual property;

2. Support ISO18000-6C (EPC C1G2) protocol tag;

3. 865~868MHz, 902~928MHz frequency band (frequency customization optional by Soft);

4. FHSS or Fix Frequency transmission;

5. RF output power up to 33dBm (adjustable);

6. 8dBi circular antenna with effect distance up to 0m~10m*;

7. Support active mode, answer mode, trigger-activating and password work mode;

8. Low power dissipation with single +12V DC power supply;

9. Support RS232, RS485, Wiegand interface, Relay (Optional), USB (Optional), RJ45 (Optional), WIFI (Optional), POE (Optional),4G (Optional);

10. One Relay (Optional) can control Beep, Motor, Light.

11. Support ModBus (only RS232, RS485, RJ45 interface).

* Effective distance depends on antenna, tag and environment.



Product mode explanation:

Model

Interface

SW3908

Standard(RS232, RS485, Wiegand,Trigger)

SW3908T

Standard with RJ45

SW3908W

Standard with WIFI

SW3908TW

Standard with RJ45 and WIFI

SW3908TP

Standard with RJ45 and POE

SW3908TPW

Standard with RJ45 and POE and WIFI

SW3908R

Standard with Relay

SW3908U

Standard with USB(HID & Keyboard)

SW3908G

Standard with 4G

-T: RJ45  -W:WIFI  -P:POE  –R: Relay –U:USB –G: 4G





Product Technical Parameters



Type

Model Number

3908

Type

UHF Middle Range Integrated Reader

Physical parameters

Dimensions

190x190x50mm

Net Weight

2.0Kg

Gross Weight

2.5Kg

Package size

40.5*30.5*10.5cm

Shell material

ABS

Color

Gray White

Environmental parameters

Operation Temperature

-20~+60

Storage Temperature

-40~+85

Humidity

5%~95% RH, Non-condensing

Waterproof Rank

IP65

Performance

Frequency

902~928MHz,860~868MHz(frequency customization optional)

Ant.

8 dBi circular polarization antenna

RF Power

0 - 33dBm

Read Distance *

0-10m * Effective distance depends on antenna, tag and environment.

Write Distance *

0-5m * Effective distance depends on antenna, tag and environment.

Read Rate

800cnt / second

Read Type

ISO18000-6C(EPC Gen2)

Reading Prompt

Buzzer

Working Voltage

DC +9 - 24V, 12W

Work Mode

Active mode, Answer mode, Trigger mod, Password mode

Communication

RS232, RS485, WG26, WG34, Trigger,

Relay(Optional), RJ45(Optional),

WIFI(Optional), POE(Optional),USB(Optional),4G(Optional)

Net

RJ45 support TCP Client/Server, Modbus, DNS, DHCP.

WIFI support TCP Client.

4G support TCP Client.

HTTP Protocol(Optional), MQTT(Optional), LLRP(Optional)

SDK

SDK

Support X86 & X64, C++, C#, VB, Delphi, Linux, ARM, Python, NodeJS, QT, JAVA, Android.
