Description

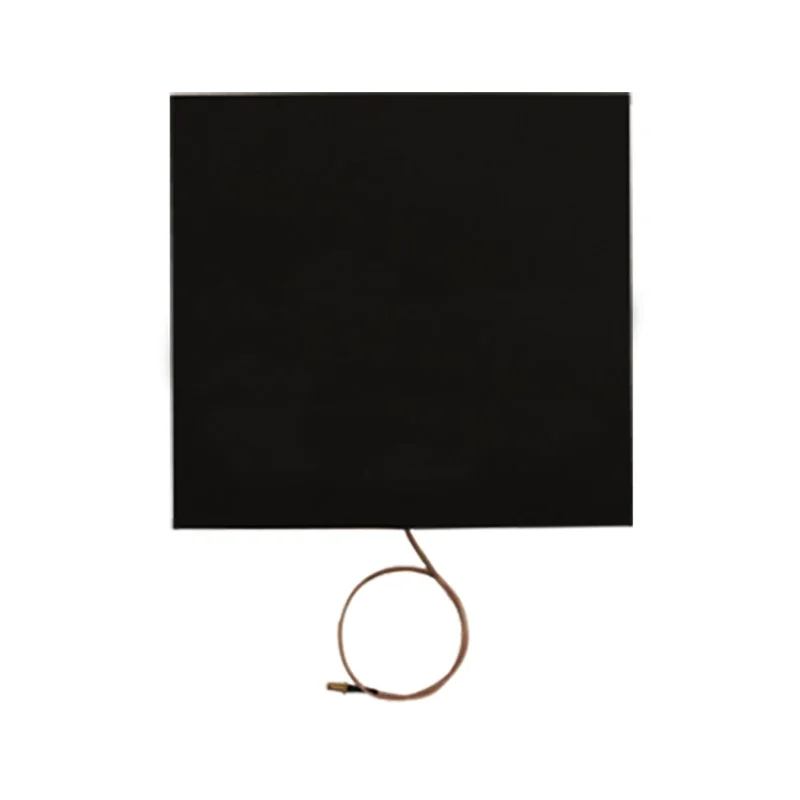

865-868MHz UHF RFID Antenna 320*320mm Short Range Near Field RFID Antenna for Jewelry Management
Product Description
What is the overview of 865-868MHz UHF RFID Antenna 320*320mm Short Range Near Field RFID Antenna for Jewelry Management?
UHF General Near Field PCB antenna series, suitable for UHF multiple applications, with uniform induction field area, no blind area oversized and ultra-thin. Wide range of sizes and can be customized for specific sizes. It can be easily applied to jewelry, retail POS, library, medicine, and health care, as well as file cabin
et, book and other intelligent file cabinets, desktop inventory, assembly line workbench and other various sites and usage environments.
What is the technical specification of A rduino Antenna Anti Theft Uhf Rfid Reader Short Range Rfid Antenna Dome?
|
Model
|
AU-GNP0606D
|
AU-GNP1510D
|
AU-GNP2323D
|
AU-GNP3030D
|
|
|
||||
|
Frequency
|
902-928MHz
|
|||
|
Dimension
|
62x62x6mm
|
150x100x6mm
|
230 x 230x 6mm
|
300x300x 6mm
|
|
Gain
|
0dBi
|
-15dBi
|
-15dBi
|
-10dBi
|
|
Polarization
|
Circular
|
|||
|
VSWR
|
≤1.8
|
|||
|
F/B Ratio
|
≥20
|
|||
|
Impedance
|
50Ω
|
|||
|
Max. Power
|
50W
|
|||
|
Protection
|
DC Ground
|
|||
|
Connector
|
SMA-Female
|
|||
|
Net Weight
|
0.1kg
|
0.12kg
|
0.3kg
|
0.4kg
|
|
Package Dimension
|
17 x 12 x 3cm
|
17 x 12 x 3cm
|
25 x 25 x 3cm
|
33 x 33 x 3cm
|
|
Gross Weight
|
0.2kg |
0.2kg
|
0.5kg
|
0.6kg
|
|
Radome Material
|
PVC
|
|||
|
Radome Color
|
Black
|
|||
|
Work Temperature
|
-40-70°C
|
|||
|
Model
|
AU-GNP4020D
|
AU-GNP3224D
|
AU-GNP3523D
|
AU-GNP4032D
|
|
|
||||
|
Frequency
|
902-928MHz
|
|||
|
Dimension
|
400 x 200 x 6mm
|
320 x 240 x 6mm
|
350 x 230 x 6mm
|
400 x 320 x 6mm
|
|
Gain
|
-10dBi
|
|||
|
Polarization
|
Circular
|
|||
|
VSWR
|
≤1.8
|
|||
|
F/B Ratio
|
≥20
|
|||
|
Impedance
|
50Ω
|
|||
|
Max. Power
|
50W
|
|||
|
Protection
|
DC Ground
|
|||
|
Connector
|
SMA-Female
|
|||
|
Net Weight
|
0.8kg
|
|||
|
Package Dimension
|
42 x 22 x 3cm
|
34 x 26 x 3cm
|
37 x 25 x 3cm
|
42 x 34 x 3cm
|
|
Gross Weight
|
1kg
|
|||
|
Radome Material
|
PVC
|
|||
|
Radome Color
|
Black
|
|||
|
Work Temperature
|
-40-70°C
|
|||
|
Model
|
AU-GNP4535D
|
AU-GNP5238D
|
AU-GNP6220D
|
AU-GNP5645D
|
|
|
||||
|
Frequency
|
902-928MHz
|
|||
|
Dimension
|
450 x 350 x 10mm
|
520 x 380 x 6mm
|
620x 205 x 6mm
|
560 x 450 x 6mm
|
|
Gain
|
-10dBi
|
|||
|
Polarization
|
Circular
|
|||
|
VSWR
|
≤1.8
|
|||
|
F/B Ratio
|
≥20
|
|||
|
Impedance
|
50Ω
|
|||
|
Max. Power
|
50W
|
|||
|
Protection
|
DC Ground
|
|||
|
Connector
|
SMA-Female
|
|||
|
Net Weight
|
0.8kg
|
|||
|
Package Dimension
|
47 x 37 x 3cm
|
54 x 40 x 3cm
|
64 x 22 x 3cm
|
58 x 47 x 3cm
|
|
Gross Weight
|
1kg
|
|||
|
Radome Material
|
PVC
|
|||
|
Radome Color
|
Black
|
|||
|
Work Temperature
|
-40-70°C
|
|||
