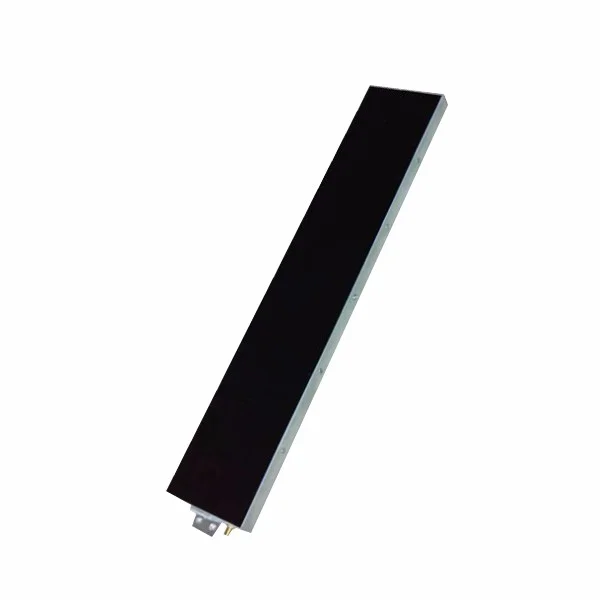

What is the overview of 865-868MHz 902-928MHz Circular Polarization Ultra Threshold RFID UHF Slim Rugged Antenna?
It is a high performance UHF 5dBi circular polarization access control antenna. It can be widely applied in many RFID application systems such as logistics, terminals, parking lots, shopping malls, toll station, access control, and anti-counterfeit and industrial production process control system.
What is the key features of 865-868MHz 902-928MHz Circular Polarization Ultra Threshold RFID UHF Slim Rugged Antenna?
2. Environmental adaptability;
3. Easy installation;
4. Fast and accurate reading speed;
5. High data security;
6. Long distance;
What is the technical specification of 865-868MHz 902-928MHz Circular Polarization Ultra Threshold RFID UHF Slim Rugged Antenna?
|
865-868MHz 902-928MHz Circular Polarization Ultra Threshold RFID UHF Slim Rugged Antenna |
|
| Electrical Specifications | |
| Frequency Range | 902-928MHz |
| Bandwidth | 26MHz |
| Gain | 5dbi |
| Electronic Inclination Angle | 0° |
| Horizontal Beam Width | Hor:100° Vert:68° |
| F/B Ratio | > 20 |
| VSWR | <1.3 |
| Impedance | 50Ω |
| Polarization | Circular |
| Max. Power | 2100W |
| Connector | N-Female |
| Lightning Protection | DC ground |
| Mechanical Specifications | |
| Dimension | 460*80*20mm |
| Weight | 1.6Kg |
| Reflector Material | Aluminum alloy |
| Radome Material | Acrylic |
| Operating Temperature | -40~80°C |
| Suitable Pole Diameter | Φ40-Φ75mm |
1. Payment: T/T, Western Union, MoneyGram, PayPal, D/A, D/P.
2. MOQ: 1pcs
3. Warranty : 1 years
Our products have acquired CE, FCC certification and RoHS compliance and NCC, KCC, EK improvement via Taiwan, Korea companies. Our products are with stability, conformity, high performance and competitive price. We has super excellent and experienced R&D team and sales engineer team which are the guarantee to provide our clients with superior products and service as well as OEM/ODM business.
We expect to cooperate with system integrators, strategic partners and product distributors.
