860mhz-960mhz ip67 fixed reader 12v 2 meters 868mhz rs232 long distance waterproof 900mhz writer tcp ip UHF rfid reader with sdk

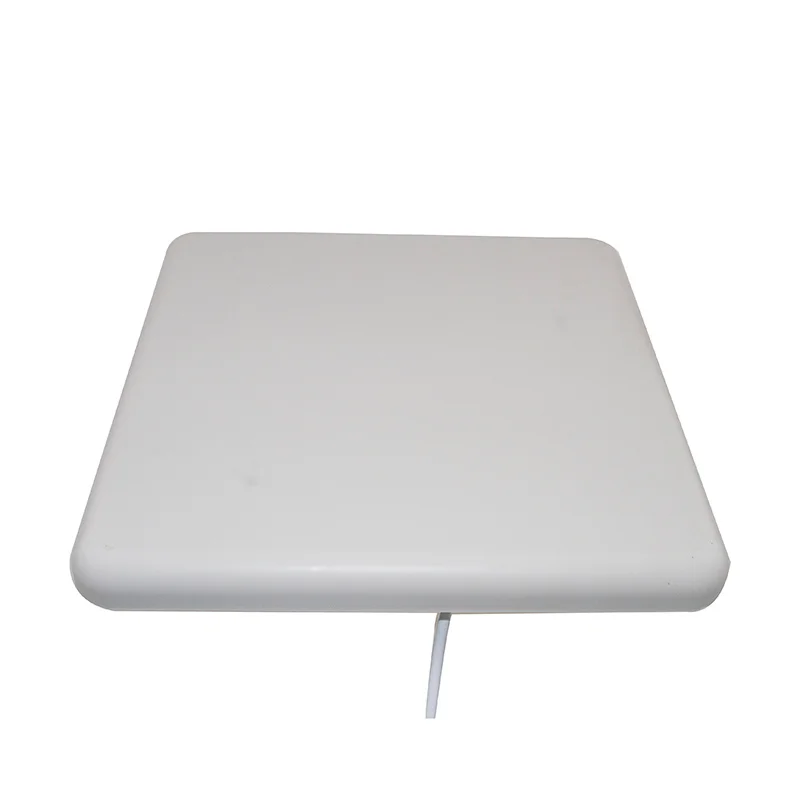

UHF RFID Reader

$0.00
Quantity

Description

Related Products

Product Description
Main Specifications
Certifications FCC, CE, RoHs, SRRC

Performance Specifications

Frequency Range

840MHz~960MHz, adjustable

Protocol

EPC C1G2ISO18000-6B/C

Chip

Impinj R2000

Frequency band

GB 920MHz~925MHz, 840MHz-845MHz; FCC 902MHz~928MHz;

Optional frequency band

Please tell our sales which band do you want before orderingETSI865MHz~868MHz; JP 916.8MHz~920.4MHz;TW922.25~927.75MHz; ID923.125~925.125MHz; RUS, 866.6~867.4 MHz; TEST, 802.75~998.75MHz;  JP_LBT,916.8~920.8MHz

Communication protocol

TCP/IP

Reading Distance

0-20 meters, adjustable

Antenna gain

9dBi

Working mode  Fixed frequency/frequency hopping optional
RF output power (port)

33dBm±1dBm(MAX)

 Recognizing speed  >600 times / S

Physical Specifications

Communication

COM port or network

RS232

Baud rate support 9600, 19200, 115200 (default), 460800 optional;

Physical Specifications

Dimension

30*30*6.5cm

Net weight

3kg

Material

Aluminum

Installation Method

 Fixed with installation bracket
 Power
 Power Supply  12V/3A
Power consumption  20W (output power 33dbm)
Operating Environment

Operating temperature

-20 ºC ~+60  ºC

Storage temperature

-40℃~+85℃

Working humidity

<95% (+25°C)
