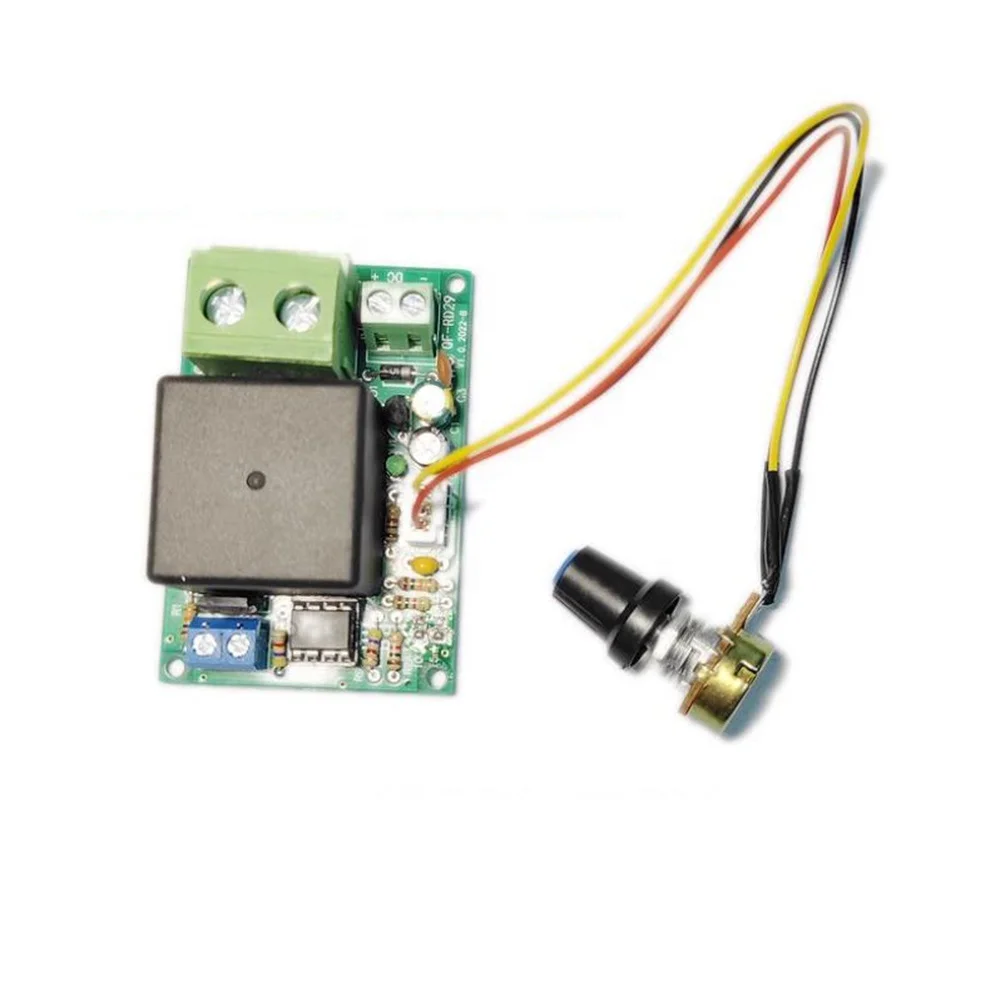

80A High Current 12V 24V Car Delay On Off Timer Trigger Time Delay Relay Module Vehicle Shutdown Delay Timer Module

Time Delay Relay Module
$7.28
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
80A High Current 12V 24V Car Delay On Off Timer Trigger Time Delay Relay Module Vehicle Shutdown Delay Timer Module
Product Description
Working mode: Triggered delay, the relay is turned on after the trigger, and the relay is turned off after the time is up. Note that it will not be affected by triggering again during the on-working period (other methods can be customized) Output: Relay normally open contact, dry connection passive type (isolated from the input side
Specification
item
value
Model Number
TDJL-QF-RD29
Theory
Electronic
Usage
Timer Switch
Type
Mini
Delay time range
10s/100s/5min/15min/60min/120min
Input mode
button/low level
Response time
25mS
Working mode
Trigger
Trigger load
80A 28V DC
Size
67*45*43mm
Time error
2%
Working temperature
-25C to 85C
Weight
85g
