Description

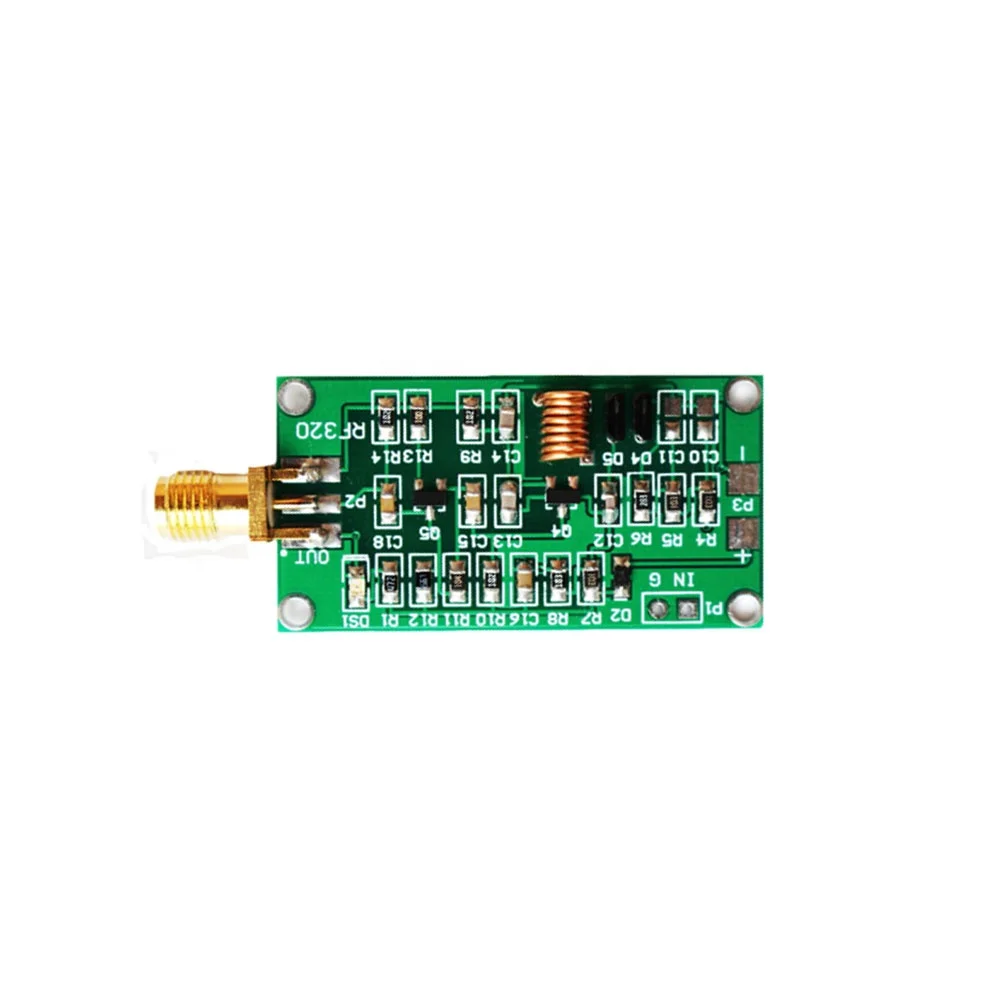

80-120MHz FM Signal VCO Generator Voltage Control Oscillator RF Signal Source RF FM Signal Generator
Product Description
Output frequency range
80~120 MHz
Maximum output amplitude
<-3dBm dBm
Working voltage
3~9 v
Size
42*22 mm
P3 interface: +: positive power supply; -: negative pole of power supply; P1 interface: IN: Input VCO signal (0~9V). G: The negative pole of the power supply. P2 interface: output signal. (RP SMA KE KHD outer screw inner hole)
