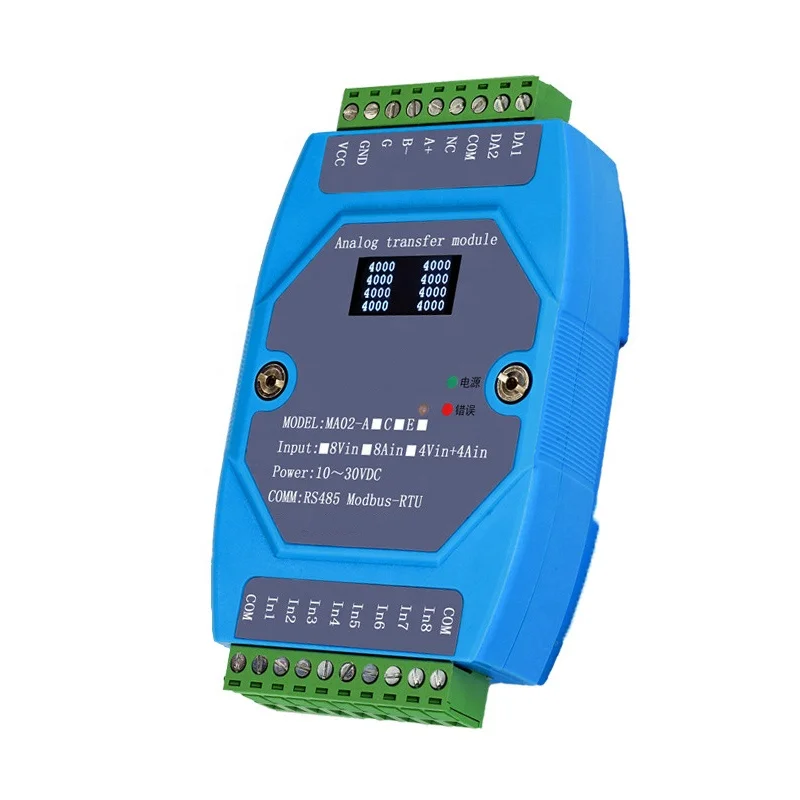

8 Channel 0-20/4-20MA/0-10/2-10V Current Transmitter Acquisition Analog to RS485 Converter PLC Control Board RS485
Product Description
Adopt RS485, MUDBUS-RTU standard protocol, can network with PC, PLC, touch screen, etc. to collect and input 8 channels of analog 0-20MA/4-20MA/0-10V, and with 2 channels of 2-10V output (according to selection) With communication indicator, with display real-time display (optional) Power input and RS485 communication output are isolated from each other to protect the accuracy of data and ensure the safe operation of the module This product is widely used in signal acquisition and control of various industrial field devices Packing list: transmission module*1.packaging box*1
Note
We have with display and without display version can choose. Without display version, price is 52.78USD/pc
Specification
|
item
|
value
|
|
Module supply voltage
|
10~30VDC
|
|
Module supply current
|
50MA (12V)
|
|
Isolation protection
|
1500VDC 1W
|
|
Module working ambient temperature
|
-40~+80°C (without display) , -20~+60°C (with display)
|
|
Module working environment humidity
|
0~95%RH (no water droplets)
|
|
Number of analog input channels
|
8-channel current-voltage/4-channel current-voltage (optional according to demand)
|
|
Analog input type
|
DC 0-20MA/4-20MA/0-10V (optional according to demand)
|
|
Analog measurement accuracy
|
±2LSB
|
|
Installation method
|
Standard 35mm DIN rail mounting
|
|
Dimensions
|
37*70*121mm (H)
|
|
Communication baud rate
|
300~115200 (factory default 9600)
|
|
Check Digit
|
Type A is fixed without parity, and Type C and E can be changed to odd/even/none
|
|
Stop bit
|
Section A is fixed 1, Section C and Section E can be changed to 1/1.5/2
|
|
485 mailing address
|
1~254 (factory default 1)
|
|
Correction offset
|
-12.8~+12.7
|
|
Recording capacity
|
60000 groups (some models have)
|
|
Logging interval
|
1~65535 seconds (some models have)
|
|
Conversion speed
|
12Bit (85HZ) ,16Bit (10HZ)
|
|
DAC output range
|
2~10V/4-20MA (some models have)
|
|
DAC value range
|
0~4000 words (some models have)
|
|
AD value range
|
0~4000 words
|
|
Voltage input DC impedance
|
40KΩ
|
|
Current input DC impedance
|
125Ω
|
|
12Bit acquisition accuracy
|
±1 LSB
|
|
16Bit acquisition accuracy
|
14~15 Bit
|
|
Device temperature accuracy
|
±1~±2°C
|
|
Device temperature resolution
|
±0.1°C
|
Installation Instructions
Wiring & Networking
The addresses of the modules are uniformly set to No. 1 before leaving the factory. When multiple modules are used in parallel, it must be ensured that each module number (station address) on the line is different. If there are the same, the module data between the same numbers Interference will occur, so that the communication can not be normal. When multiple modules are used on one line, it is recommended to start from No. 1 and compile them in order. To change the address, please use our free software to change, before changing, please connect the module to the computer through the converter.
