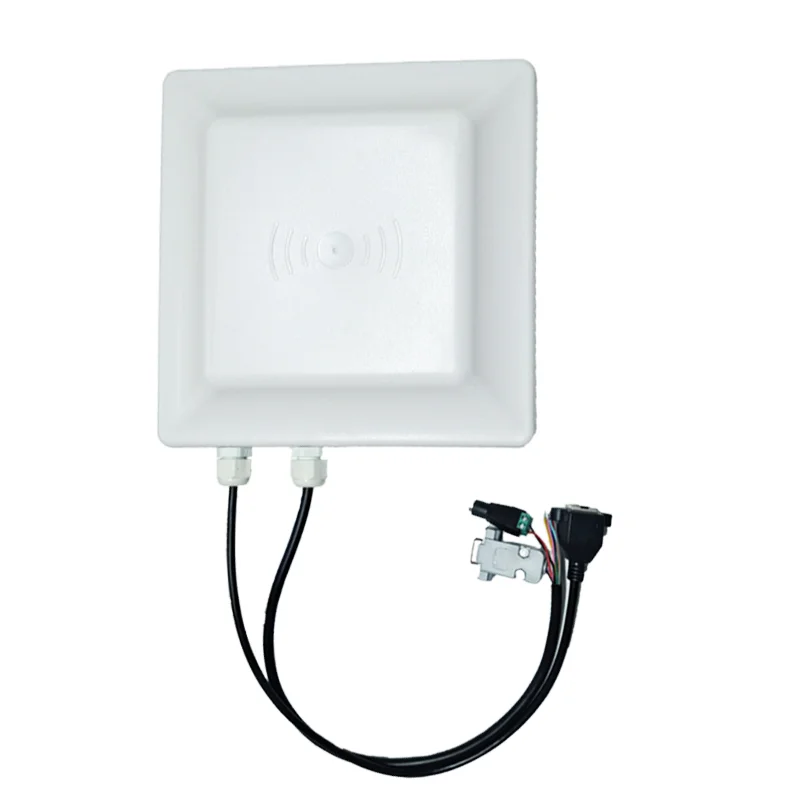

It (with RJ45 and POE) is UHF middle range integrated reader design for parking system vehicle access control, with relay, use password mode to match reader and tag control relay release and trigger barrier open, come with demo software and WG26 connection software configuring user manual.
Application:
Vehicle no-stop toll management (car parking lot)
Logistics and warehouse management
Production flew-line management
Animals' recording management
Products anti-counterfeiting detection
Features:
1. Self-intellectual property;
2. Support ISO18000-6C (EPC C1G2) protocol tag;
3. 865~868MHz, 902~928MHz frequency band (frequency customization optional by Soft);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 30dBm (adjustable);
6. 7dBi circular antenna with effect distance up to 0m~8m*;
7. Support active mode, answer mode, trigger-activating and password work mode;
8. Low power dissipation with single +12V DC power supply;
9. Support RS232, RS485, Wiegand interface, Relay, USB, RJ45, WIFI, POE,4G;
10. One Relay (Optional) can control Beep, Motor, Light.
11. Support ModBus (only RS232, RS485, RJ45 interface).
* Effective distance depends on antenna, tag and environment.
Product mode explanation:
|
Model |
Interface |
|
SW1907 |
Standard(RS232, RS485, Wiegand,Trigger) |
|
SW1907T |
Standard with RJ45 |
|
SW1907W |
Standard with WIFI |
|
SW1907TW |
Standard with RJ45 and WIFI |
|
SW1907TP |
Standard with RJ45 and POE |
|
SW1907TPW |
Standard with RJ45 and POE and WIFI |
|
SW1907R |
Standard with Relay |
|
SW1907U |
Standard with USB(HID & Keyboard) |
|
SW1907G |
Standard with 4G |
|
-T: RJ45 -W:WIFI -P:POE –R: Relay –U:USB –G: 4G |
|
Product Technical Parameters
|
Type |
|
|
Model Number |
SW1907TP |
|
Type |
UHF Middle Range Integrated Reader |
|
Physical parameters |
|
|
Dimensions |
220x220x60mm |
|
Net Weight |
2.0Kg |
|
Gross Weight |
2.5Kg |
|
Package size |
40.5*30.5*10.5cm |
|
Shell material |
ABS |
|
Color |
Gray White |
|
Environmental parameters |
|
|
Operation Temperature |
-20~+60℃ |
|
Storage Temperature |
-40~+85℃ |
|
Humidity |
5%~95% RH, Non-condensing |
|
Waterproof Rank |
IP65 |
|
Performance |
|
|
Frequency |
902~928MHz,860~868MHz(frequency customization optional) |
|
Ant. |
7 dBi circular polarization antenna |
|
RF Power |
0 - 30dBm |
|
Read Distance * |
0-8m * Effective distance depends on antenna, tag and environment. |
|
Write Distance * |
0-4m * Effective distance depends on antenna, tag and environment. |
|
Read Rate |
200cnt / second |
|
Read Type |
ISO18000-6C(EPC Gen2) |
|
Reading Prompt |
Buzzer |
|
Working Voltage |
DC +9 - 24V, 12W |
|
Work Mode |
Active mode, Answer mode, Trigger mod, Password mode |
|
Communication |
RS232, RS485, WG26, WG34, Trigger, Relay(Optional), RJ45(Optional), WIFI(Optional), POE(Optional),USB(Optional),4G(Optional) |
|
Net |
RJ45 support TCP Client/Server, Modbus, DNS, DHCP. WIFI support TCP Client. 4G support TCP Client. HTTP Protocol(Optional), MQTT(Optional), LLRP(Optional) |
|
SDK |
|
|
SDK |
Support X86 & X64, C++, C#, VB, Delphi, Linux, ARM, Python, NodeJS, QT, JAVA, Android.
|
