Description

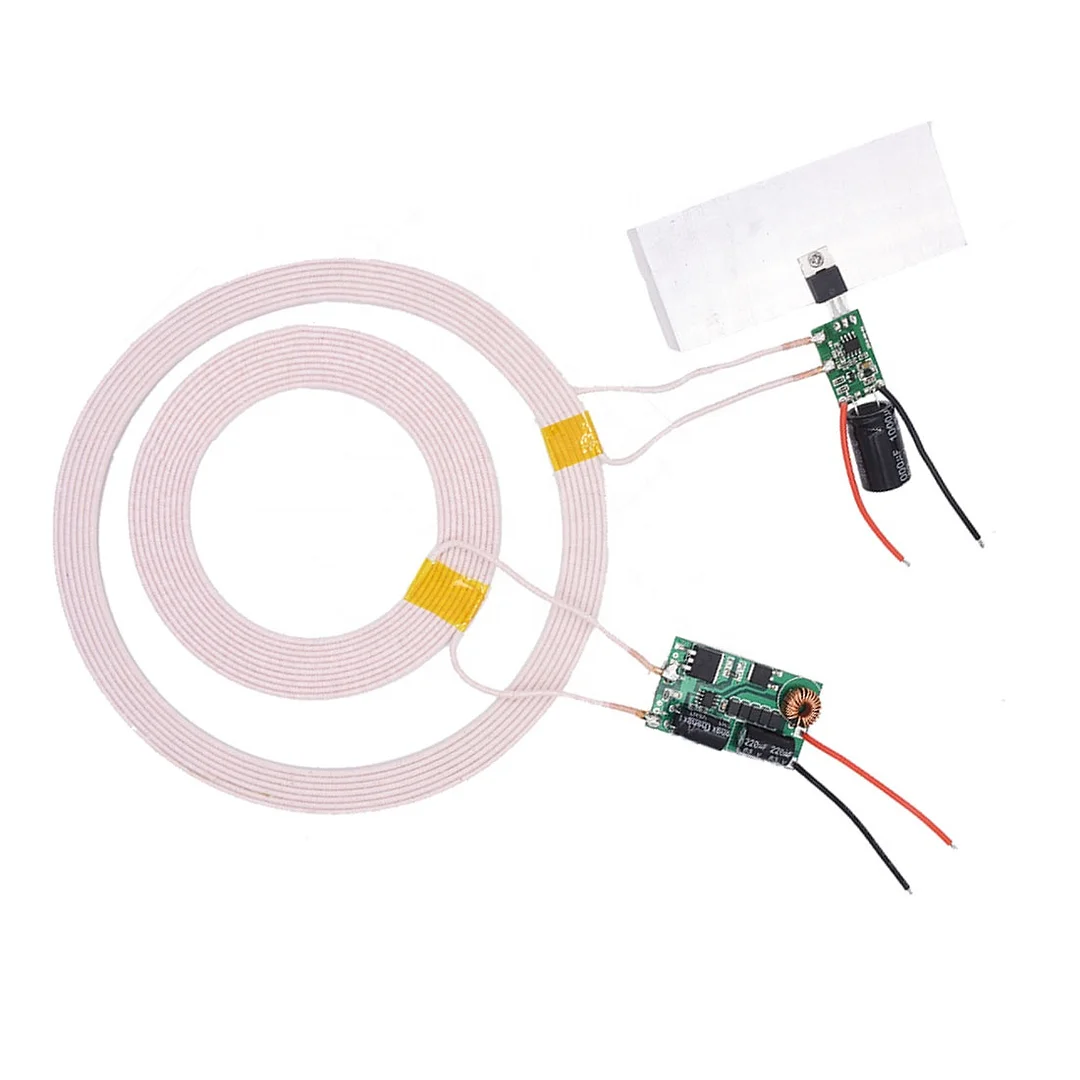

70mm~100mm Long Distance Smart Wireless Charger Wireless Charging Kit DIY Output 12V 1.8A Wireless Charging Module
Product Description
This module is an 80mm DC long-distance module, designed with XKT-801 chip, the circuit is simple and practical
Specification
item
value
Wide voltage power supply
48V
Transmitter module size
17*28mm
Transmitting coil
inner diameter 150mm outer diameter 180mm thickness 2mm
Receiving module size
30mm*54mm
Receiving coil size
inner diameter 800mm outer diameter 120mm thickness 2mm
Sensing distance
70mm~100mm
Installation Instructions

Parameters of distance and voltage and current

When 70mm, the receiving and output 12V current 1.8A When 80mm, the receiving and output 12V current 1.3A When 90mm, receive and output 12V current 1A When 100mm, receive and output 12V current 800mA When 1100mm, the receiving and output 12V current 600mA When 120mm, receiving output 12V current 500mA When 130mm, the receiving and output 12V current 300mA Adjustable receiving output voltage Note: This module can't be less than 70mm, it will be broken if it is close!!
