7 Inch 800x480 Capacitive Touch Screen Color Smart USB Touch Screen LCD Panel Low Power Consumption
Product Description

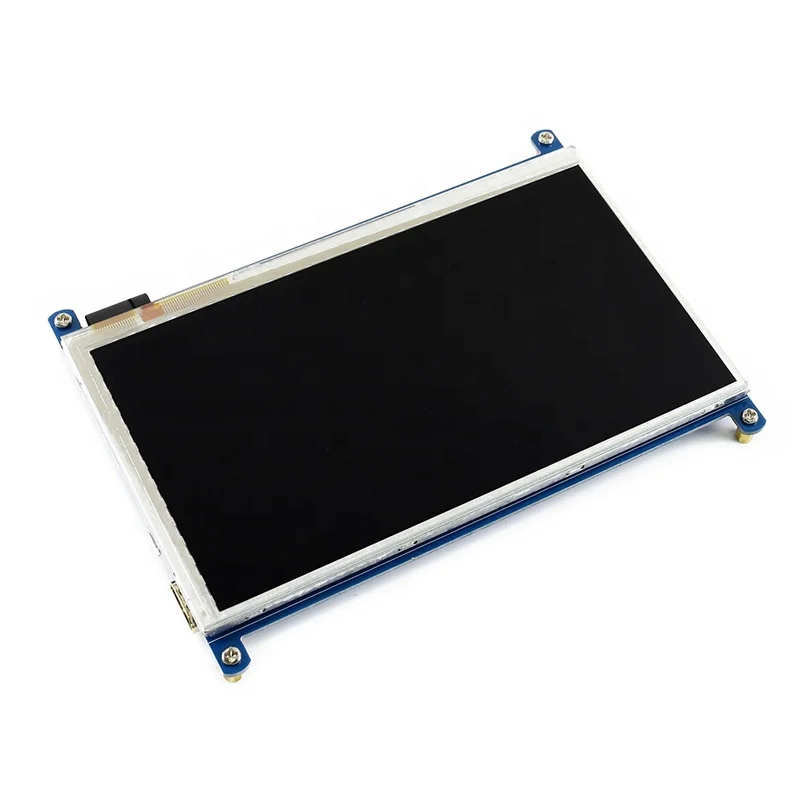

7 inch Capacitive Touch Screen LCD, HDMI interface, with a resolution of 800×480and a capacitive touch panel, which supports Raspberry Pi and can also be used as a computer monitor.
Feature
* 800×480 hardware resolution.
* 5-points capacitive touch control
* When used with Raspberry Pi, supports Raspberry Pi OS / Ubuntu / Kali and Retropie
* When used as a computer monitor, supports Windows 11/10/8.1/8/7
* Support backlight control, more power saving.
* 5-points capacitive touch control
* When used with Raspberry Pi, supports Raspberry Pi OS / Ubuntu / Kali and Retropie
* When used as a computer monitor, supports Windows 11/10/8.1/8/7
* Support backlight control, more power saving.
Specification
|
1
|
EMI and ESD protection, in compliance with CE certification
|
|
2
|
VCOM voltage adjustment for optimizing display effect
|
|
3
|
USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
|
|
4
|
USB and power input solder pads, breakout USB interface, easy for connecting external power supply
|
Installation Instructions
Working with PC
This LCD can support Windows 7/8/8.1/10/11 system.
How to use:
1) Turn on the backlight switch on the back of the LCD.
2) Connect the Touch interface of the LCD to the USB interface of the PC. Wait for a while, the windows will automatically
recognize the touch function.
3) Connect the HDMI interface of the LCD to the HDMI interface of the PC.
Note:
1) When the computer is connected to several different displays at the same time, only this LCD can be used to control the cursor on the main display, so we recommended to set this LCD as the main display.
2) Some PCs do not support plug-and-play with HDMI devices. Generally, they can be used normally after restarting the system.
3) Some PCs may cause LCD flickering due to insufficient power supply through the USB interface. Generally, they can be used normally after connecting to an external 5V/2A power supply through the DC interface.
How to use:
1) Turn on the backlight switch on the back of the LCD.
2) Connect the Touch interface of the LCD to the USB interface of the PC. Wait for a while, the windows will automatically
recognize the touch function.
3) Connect the HDMI interface of the LCD to the HDMI interface of the PC.
Note:
1) When the computer is connected to several different displays at the same time, only this LCD can be used to control the cursor on the main display, so we recommended to set this LCD as the main display.
2) Some PCs do not support plug-and-play with HDMI devices. Generally, they can be used normally after restarting the system.
3) Some PCs may cause LCD flickering due to insufficient power supply through the USB interface. Generally, they can be used normally after connecting to an external 5V/2A power supply through the DC interface.
Working with Raspberry Pi
This LCD can support Raspberry Pi OS / Ubuntu / Kali and Retropie systems. When the LCD works on systems such as Raspberry Pi OS, the resolution must be set manually, otherwise, it will cause an abnormal display.
Please download the latest version of the image on the Raspberry Pi official website.
1) Download the compressed file to the PC, and unzip it to get the .img file.
2) Connect the TF card to the PC, use SDFormatter software to format the TF card.
3) Open the Win32DiskImager software, select the system image downloaded in step 1, and click‘Write’ to write the system image.
4) After the image has finished writing, open the config.txt file in the root directory of the TF card, add the following code at the end of config.txt, then save and quit the TF card safely.
hdmi_group=2
Please download the latest version of the image on the Raspberry Pi official website.
1) Download the compressed file to the PC, and unzip it to get the .img file.
2) Connect the TF card to the PC, use SDFormatter software to format the TF card.
3) Open the Win32DiskImager software, select the system image downloaded in step 1, and click‘Write’ to write the system image.
4) After the image has finished writing, open the config.txt file in the root directory of the TF card, add the following code at the end of config.txt, then save and quit the TF card safely.
hdmi_group=2
hdmi_mode=87
hdmi_cvt 800 480 60 6 0 0 0 hdmi_drive=1
5) Insert the TF card into the Raspberry Pi
6) Turn on the backlight switch on the back of the LCD.
7) Connect the Touch interface of the LCD to the USB interface of the Raspberry Pi.
8) Connect the HDMI interface of the LCD to the HDMI interface of the Raspberry Pi, power on the Raspberry Pi, and wait for a few seconds until the LCD displays normally.
5) Insert the TF card into the Raspberry Pi
6) Turn on the backlight switch on the back of the LCD.
7) Connect the Touch interface of the LCD to the USB interface of the Raspberry Pi.
8) Connect the HDMI interface of the LCD to the HDMI interface of the Raspberry Pi, power on the Raspberry Pi, and wait for a few seconds until the LCD displays normally.
