Description

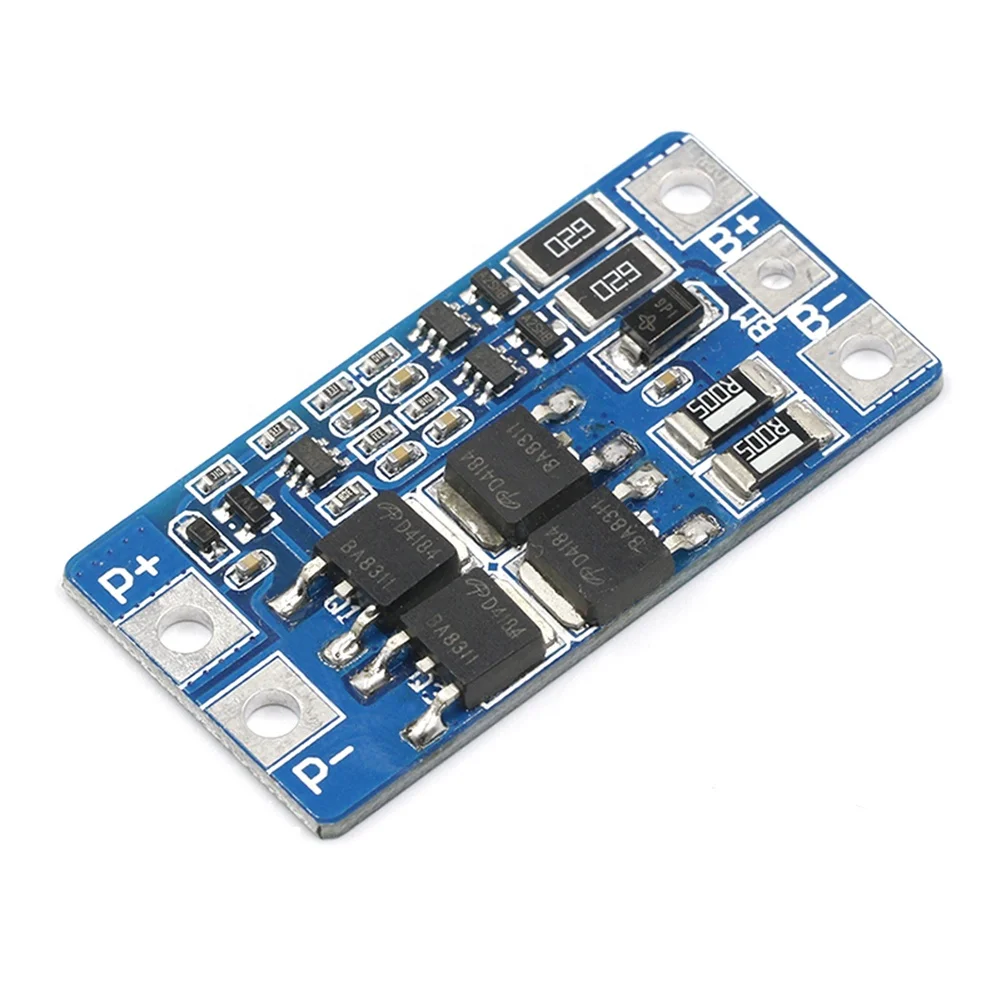

7.4V 8.4V 2 Strings Lithium Battery Protection Circuit Board with Balance 10A 2S Lithium Battery Cell Balancer
Product Description
Note
This protection board cannot be used for lithium iron phosphate batteries, xenon lamps, hand drill battery packs, electric fish machine battery packs, electric bicycle battery packs, motors above 775 (4A), 1W fisheye LED lights
Welding point description
B+—connect to the positive pole of the battery; B-connect to the negative pole of the battery; MB is connected to the connection point before battery 1 and battery 2; P+ is connected to the positive pole of the charging/discharging terminal (the charging terminal/discharging terminal is shared); P- is connected to the negative electrode of the charging/discharging terminal (the charging terminal and the discharging terminal are shared).
Specification
|
item
|
value
|
|
Overcharge voltage range
|
4.25±0.05v
|
|
Size
|
46.7*23*3.15mm
|
|
Over discharge voltage range
|
2.9V±0.05V
|
|
Upper working current
|
10A
|
|
Working temperature
|
-40~+50℃
|
|
Upper limit instantaneous current
|
20A
|
|
Storage condition
|
-40+80℃
|
|
Quiescent current
|
less than 10uA
|
|
Effective life
|
more than 50000 hours
|
|
Internal resistance
|
less than 300mΩ
|
|
Short circuit protection
|
can be protected, need to be charged to restore
|
|
Charging voltage
|
8.4V-9V
|
Installation Instructions
The power ranges described apply to the following products:
Massager battery pack, LED light backup power supply, 12V electronics, solar street light battery pack, monitoring backup power supply, and other products. Reminder: When assembling the battery pack, the battery voltage, capacity and internal resistance should be well matched. The battery voltage should be around the rated voltage of 3.7V. There is no output after the battery pack is assembled, and it can be charged with 8.4V voltage.
Details Images
