7-12V 2.5A overcurrent protection fully Isolated 3 phase motor controller l298n dual dc motor driver 12v dc gearless motor
Description
The driver module is compared with the driver module developed by L298N chip on the market as follows:
|
Compare project |
L298N driver module product onmarket. |
theThis driver module |
|
motor interfacenumber |
channel2 channel |
2 channel |
|
maximum support motor voltage |
module uses LDO to provide 5V voltage maximum support 12V or 24V motor,independent of supply pressure cansupported 36Vmotor |
12Vrated be24V(not work for a long time) |
|
each maximum continuous current |
2A |
2.5 |
|
maximumcurrentdriver chipseach supported |
2A |
6A |
|
the fins need to increase maximum continuous current operational |
needs |
do require |
|
pressure (plates with anti-reverse diode) whichnota power supply voltage and the output voltagemodule is |
is greater than 1.5V |
less than 0.5V |
|
if overcurrent |
No market Related overcurrent protectioneach |
for channel has a separate overcurrent 3A Protection |
|
control signal type |
three-wire (ENABLE, IN1, IN2) level control enable, forward and reverse, and brake |
three-wire (ENABLE, IN1, IN2) level control enable, forward and reverse, and brake |
|
control signals are isolated, |
not isolated, part Theisolated or fully isolated |
optocoupler fully isolated |
|
connected methodscontrol signal interfaces |
mostforare DuPont lines or female |
DuPont lines, female or 10P crimping heads. |
Features:

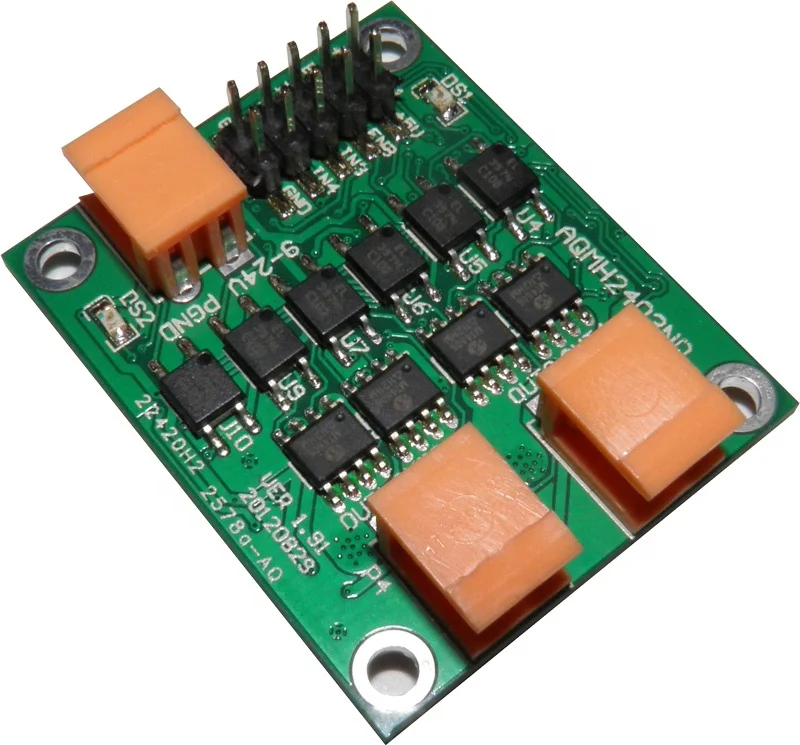

Ultra-small size, only 3.5cmx4.3cm (smaller than eggs)
Support voltage 6.8V-26V (not recommended for long time operation above 15V), anti-reverse connection, dual output, maximum continuous current 2.5A per load, independent 3A overcurrent protection for each channel, overcurrent protection action current 2.5- 6A (motor stall current can't exceed 6A), the motor can be recovered after over-current protection, and the drive module will not be burned because the load current is too large.
The optocoupler is fully isolated, and the L298N has the same drive logic. Each channel supports three-wire control enable, forward and reverse, and brake. The enable signal can be connected to external PWM speed regulation. The direction signal can be connected to the limit switch limit.
The control signal uses sink current drive mode to support most 5V MCU direct drive
The control signal interface can be connected using the commonly used 2.54mm pitch 10P crimping head, the female or the DuPont line.
Easy to use and secure with high quality plug-in terminals
Φ3 positioning hole, can be fixed by common M3 screws
Please use 12V for long time operation, do not run for 24V for a long time.
The following figure connects a 2 ohm high-power resistor in series with an ammeter and then connects it to the module output to supply a 7-8V power supply to measure its actual load capacity.
