Description

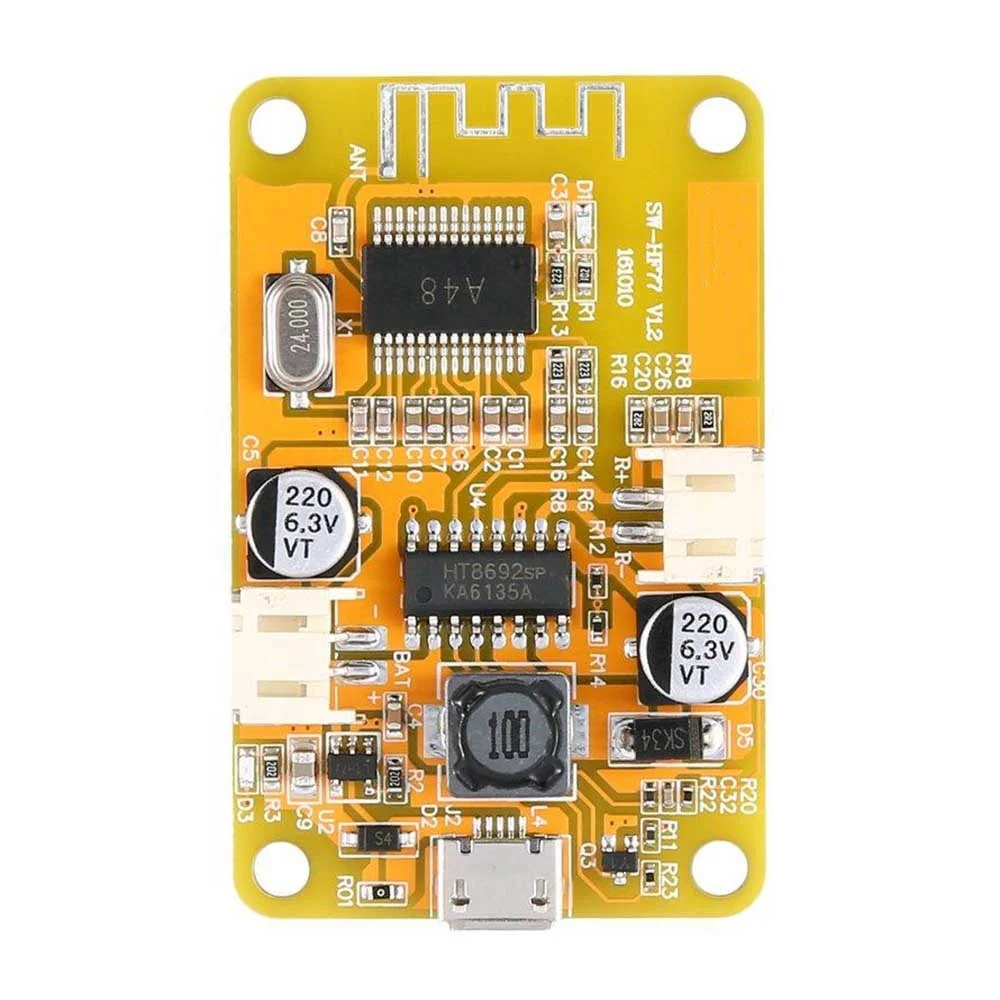

6W Mono Ble Digital Amplifier Board Ble Speaker DIY Board Modified Ble Audio Receiver Amplifier
Product Description
|
Power supply interface
|
Micro USB socket (charging line connected to computer USB, power bank USB can supply power 5V) Or choose 2P 2.0 interface socket (pin pitch 2.0 mm)
|
|
Output power
|
6W
|
|
Output impedance
|
4~10 ohm
|
|
Audio input method
|
Ble audio receiver
|
|
Output interface
|
2.0 pin pitch, 2-pin socket (connected to the speaker)
|
Note
The BAT interface is an external single-cell lithium battery interface. To use this interface function, the R01 resistor must be removed, and the USB interface function becomes a battery charging interface with lithium battery charging management function.
Details Images
