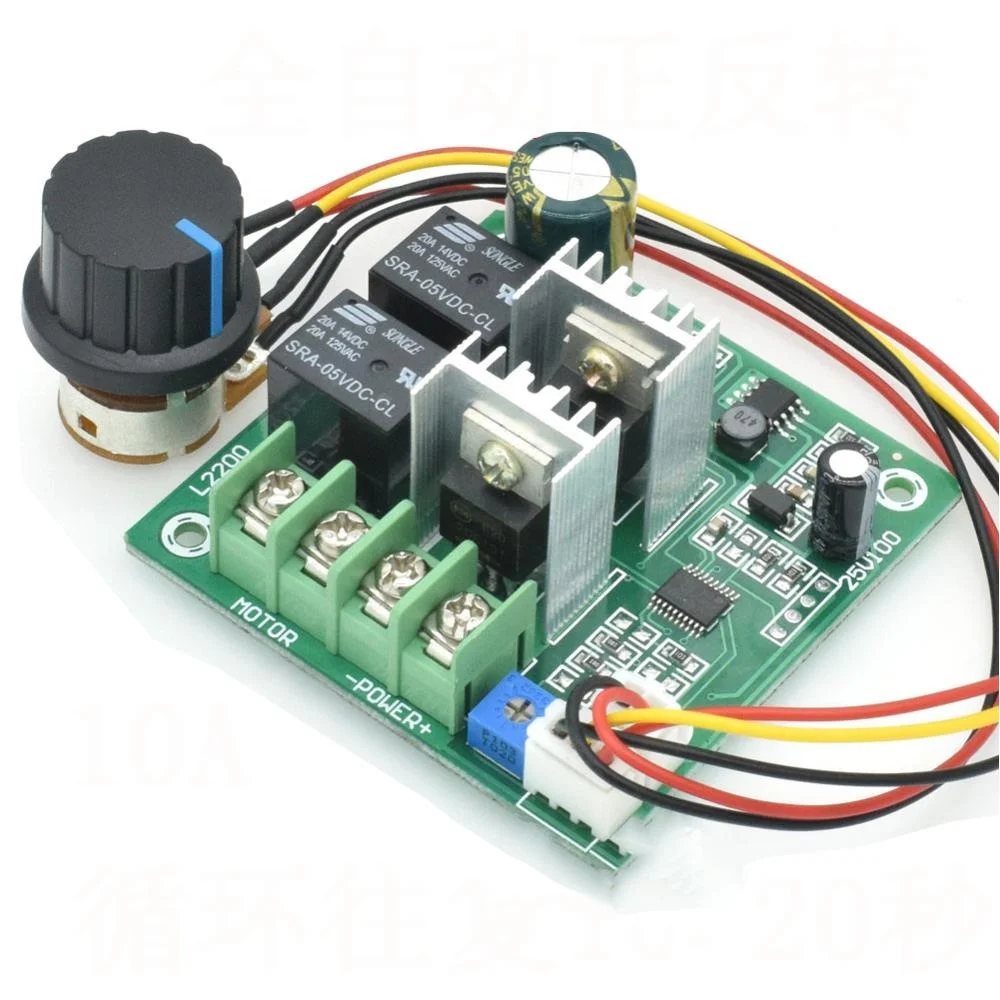

6V12V24V36V60V 10A PWM Brush DC Motor Controller Electric Motor Timer Control Automatic Forward Reverse Motor Control
Description
Feature
Fully automatic forward rotation 10-20 seconds Reverse 10-20 seconds
Stepless speed regulation
Parameter
Product Name: C25
Input voltage: DC6-60v (specific voltage is equal to the rated voltage of the motor)
Output current: 10A
Forward rotation reverse rotation: fully automatic (10-20 seconds adjustable)
Continuous current: within 8A
Input current: greater than the motor operating current
Support motor: brush motor
Wiring type: Barrier terminal block
Knob specifications: 100K (with switch)
Product net weight: 56 grams
| Speed control mode | potentiometer (270 degree linear) |
| Speed range | 0 - 100% |
| Module size | length * width * height 60mm * 60mm * 28mm |
Note: The input voltage must be positive or negative. Do not input 220V household electricity.
The input voltage should be equal to the rated voltage of the motor (within 6-60V)
