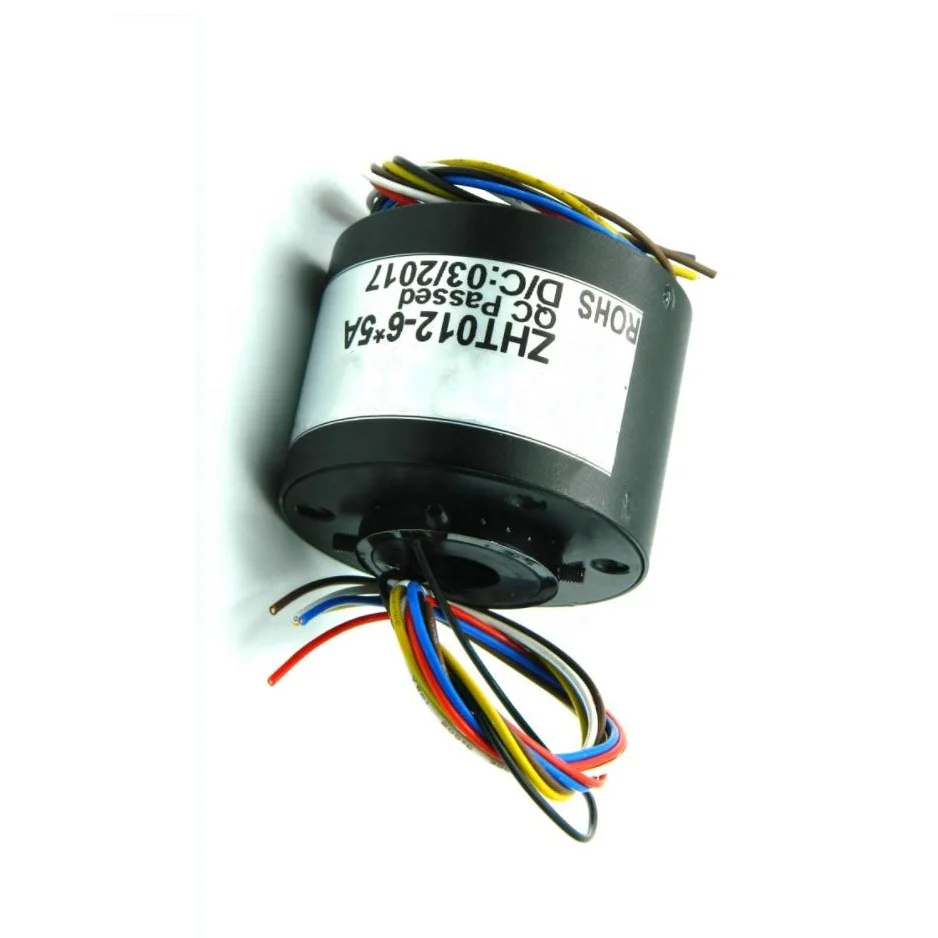

6Channel 5A Hole Diameter 12mm Through Hole Slip Ring Electric Swivel Slip Ring Power Signal Electrical Collector Ring
Product Description
Feature
■ Number of loops
■ Housing material
■ Protection level
■ Higher number of revolutions
■ Wire length
■ Terminal connector
■ Dedicated wire
■ Anti-salt mist
■ Working temperature
■ Shell can be reversed
■ Housing material
■ Protection level
■ Higher number of revolutions
■ Wire length
■ Terminal connector
■ Dedicated wire
■ Anti-salt mist
■ Working temperature
■ Shell can be reversed
Feature
1. Undamaged wire 360° unrestricted rotation to transmit data signals;
2. Combination of power supply and control signal transmission;
3. Gold-to-gold contacts ensure ultra-long life, sealed design, high Protection, maintenance-free;
4. Smooth operation, low torque;
5. Very low electrical noise, low contact resistance, no friction;
6. High bandwidth transmission capability, compatible with multiple data bus protocols, analog and digital signal conversion.
2. Combination of power supply and control signal transmission;
3. Gold-to-gold contacts ensure ultra-long life, sealed design, high Protection, maintenance-free;
4. Smooth operation, low torque;
5. Very low electrical noise, low contact resistance, no friction;
6. High bandwidth transmission capability, compatible with multiple data bus protocols, analog and digital signal conversion.
Applications
■ Closed-circuit monitoring pan/tilt
■ Manipulator
■ Medical and sanitary equipment
■ Rotating work platform
■ Assembly line production, industrial control equipment
■ Medical and sanitary equipment
■ Rotating work platform
■ Assembly line production, industrial control equipment
Specification
|
technical parameter
|
||||||
|
Number of channels (number of lines)
|
6 lines
|
Rated current
|
5A/line
|
|||
|
Rated voltage
|
0~240 VDC/VAC
|
range of rotation
|
0-250rpm
|
|||
|
Contact point material
|
Precious metal: gold-gold
|
Conductive ring material
|
Low resistance wear-resistant copper alloy precious metal material
|
|||
|
Insulation resistance
|
500MΩ@250VDC/AC
|
Compressive strength
|
500V@50HZ, 60s without breakdown
|
|||
|
Change in contact resistance
|
Static ≤8mΩ
|
Operating temperature
|
-20℃+60℃
|
|||
|
Hole diameter
|
ø12 mm
|
Shell material
|
Engineering plastic or metal material
|
|||
|
Wire specification
|
High temperature resistant Teflon AWG26# Low resistance silver-plated wire
|
Wire length
|
200mm, wire length, wire diameter, color can be customized
|
|||
|
Certification
|
CE 、 RoHS
|
Protection level
|
IP51
|
|||
Notice
1. The service life of the product is strongly related to the working conditions such as working speed, working temperature,
humidity and load.
2. Electrical noise is precisely related to working speed, current and voltage.
humidity and load.
2. Electrical noise is precisely related to working speed, current and voltage.
|
Wire color code table
|
||||||||||||||
|
Line number
|
color
|
Line number
|
color
|
Line number
|
color
|
Line number
|
color
|
|||||||
|
1
|
black
|
2
|
brown
|
3
|
Red
|
4
|
Blue
|
|||||||
|
5
|
Yellow
|
6
|
White
|
|||||||||||
