6ch 4-20MA 0-10V Current Voltage Analog Input & 4ch NPN DI-DO RS485 Modbus Rtu PLC HMI PC Text Editor IO Expansion Board

$18.60
Specification : 6AI-4DI-4DO
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.

Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China

Support Department

Email: support@rfid-life.com

Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed
Description
Product Description

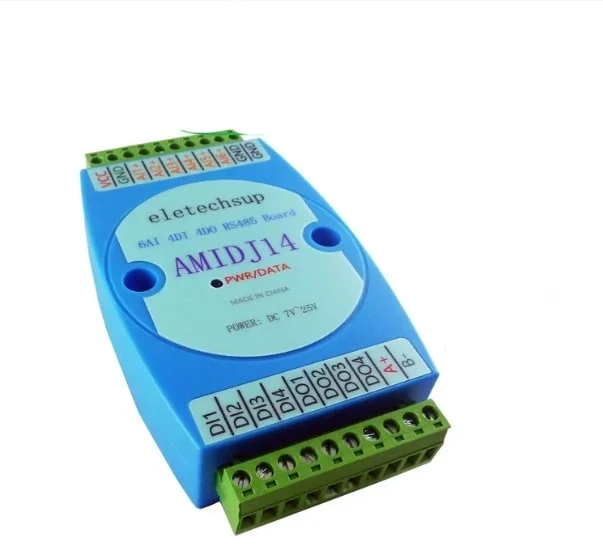

6ch 4-20MA 0-10V Current Voltage Analog Input & 4ch NPN DI-DO RS485 Modbus Rtu PLC HMI PC Text Editor IO Expansion Board
1 Product description

4ch optoelectronic isolation digital input channel (NPN Low level input)
4ch Darlington tube digital output channel (ULN2803 NPN output)
6ch 4-20MA/0-10V Current/Voltage Analog Input
RS485 MOD-BUS RTU standard communication protocol
Netted with configuration software, PLC or industry touch panel
Communication circuit designed for thunder protection and interference immunity
Used for signal collection and control in industrial field


2 Specification
1 Working voltage: DC 7-25V (9V 12V 24V)
2 Working current: 8-50MA
3 4x optically isolated input ports (NPN active low)
4 4x Darlington tube outputs (ULN2803 NPN output), the maximum load current of each channel is 300MA
5 6x 4-20MA/0-10V Current/VoltageAnalog Input
6 RS485 communication isolation protection 3000VDC, DI digital input port isolation protection 3000VDC
7 Standard MODBUS RTU command (function code, 05/06/15/16 Write, 01/02/03 Read )
8 Baud rates: 1200 2400 4800 9600 (default) 19200 38400 57600 115200
9 Parity bits: None (default) /Even /Odd
10 Installation method Standard DIN rail installation
11 Dimensions 125×70×30mm
12 Weight: 116 grams



3 Interface definition:
VCC : Power input+
GND: Power input-
AI1+/VI1+: Current/Voltage input channel 1
AI2+/VI2+: Current/Voltage input channel 2
AI3+/VI3+: Current/Voltage input channel 3
AI4+/VI4+: Current/Voltage input channel 4
AI5+/VI5+: Current/Voltage input channel 5
AI6+/VI6+: Current/Voltage input channel 6
DI1 : Digital input channel 1
DI2 : Digital input channel 2
DI3 : Digital input channel 3
DI4 : Digital input channel 4
DO1: digital output channel 1
DO2: digital output channel 2
DO3: digital output channel 3
DO4: digital output channel 4
A+: RS485 signal A+
B-: RS485 signal B-


Application
PLC Output expansion board
0-20MA/4-20MA/0-5V/0-10V Temperature and humidity sensor
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;
PLC HMI PC Configuration Software
Automatic curtain control




1 Digital Input Wiring Diagram
2 Digital output wiring diagram
Note: The Darlington tube has only two states of ''high resistance'' and ''conduction'', and the output level cannot be measured with a multimeter.

3 Current/Voltage sensor wiring diagram:
