Description
Products Description

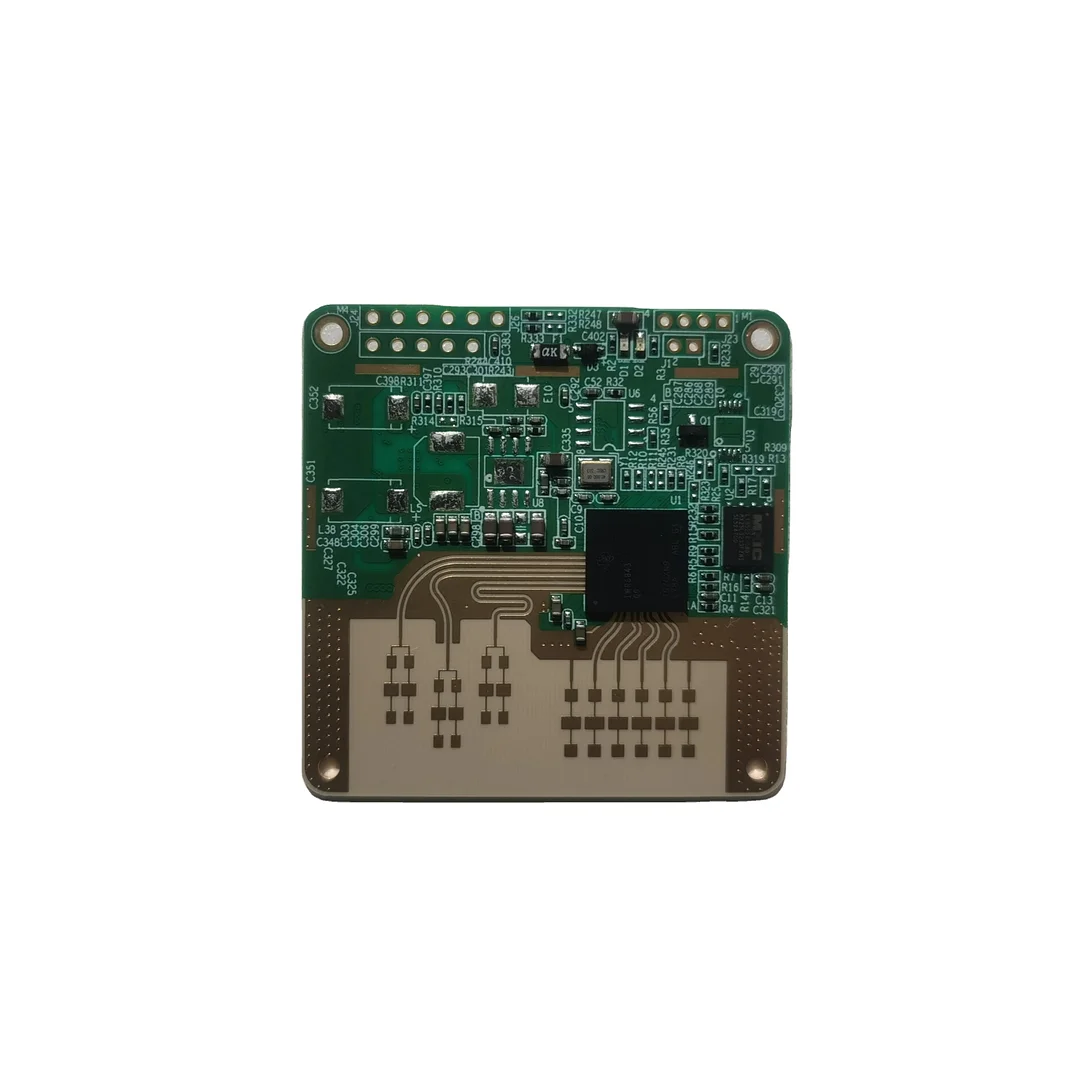

The 60GHz Millimeter-Wave Radar U100 is primarily designed for UAV field, providing solutions for obstacle avoidance and altitude control requirements. It also applys for auxiliary applications in the industrial sector. It rapidly acquires environmental information about surrounding objects, measures the distance, azimuth, and velocity of targets, and transmits this data to the control system. The radar includes USRR (Ultra-Short Range Radar), MRR (Medium-Range Radar), and LRR (Long-Range Radar), all of which support multi-mode switching and 4D algorithms.
Communication Interface
1.UART Communication: The product interface uses a 6-pin SM06B-CHS-TB vertical socket (or horizontal socket for flexibility in plugging and unplugging interfaces). The voltage level is a standard 3.3V, and the baud rate is 921600Bd. See Interface 1 in the diagram below.； 2.CAN Communication：Alternatively, CAN communication can be selected with a transfer rate of up to 1Mbps. Refer to the CAN interface shown in the diagram below； 3.Users can also choose different connectors according to their needs, facilitating integration with their own products.
Power Interface 1.DC Power Interface: Only DC power sources can be connected to the DC power interface； 2.In general, DC power sources ranging from 4.7V to 5.2V are acceptable. For higher voltage levels around 12V, only power input is required, and it should be ensured that the power supply can provide at least 5W； 3.Please note, DC power sources have positive and negative poles. When connecting, make sure to confirm the polarity at the interface.
