Description
Product Description

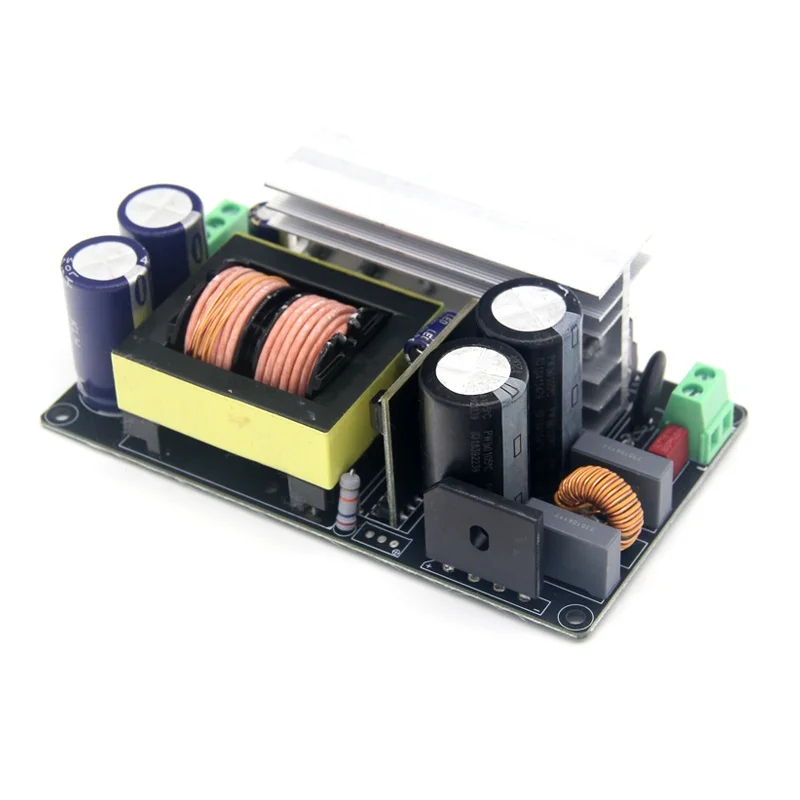

600w LLC Power Amplifier Switching Power Supply Board Single Double Output Positive and Negative +-24V36V48V60V80V Diy Audio Amp
Introdction
Input voltage: AC200-240V
Output: Single voltage 50V/12A; Dual voltage ±50V/6A; Independent 19V/0.5A (unstable voltage, with the main voltage becomes low and low, used in less demanding occasions, such as power supply to the fan, different main voltage, independent voltage is different, the purchase title is indicated)
Special reminder: Since the switching power supply only regulates the main voltage, the current of the independent and auxiliary output must be less than the current of the main voltage output; For example, the current of the main voltage is 10mA, and the auxiliary and independent can not carry more than 10MA of load;
Voltage stability accuracy: main no-load ±3%, with load ±3%; (AC220V input)
Rated continuous power: 300W (25℃ ambient temperature and fan)
Instantaneous power: 600W (can work for 30 seconds at 25℃ ambient temperature with fan)
