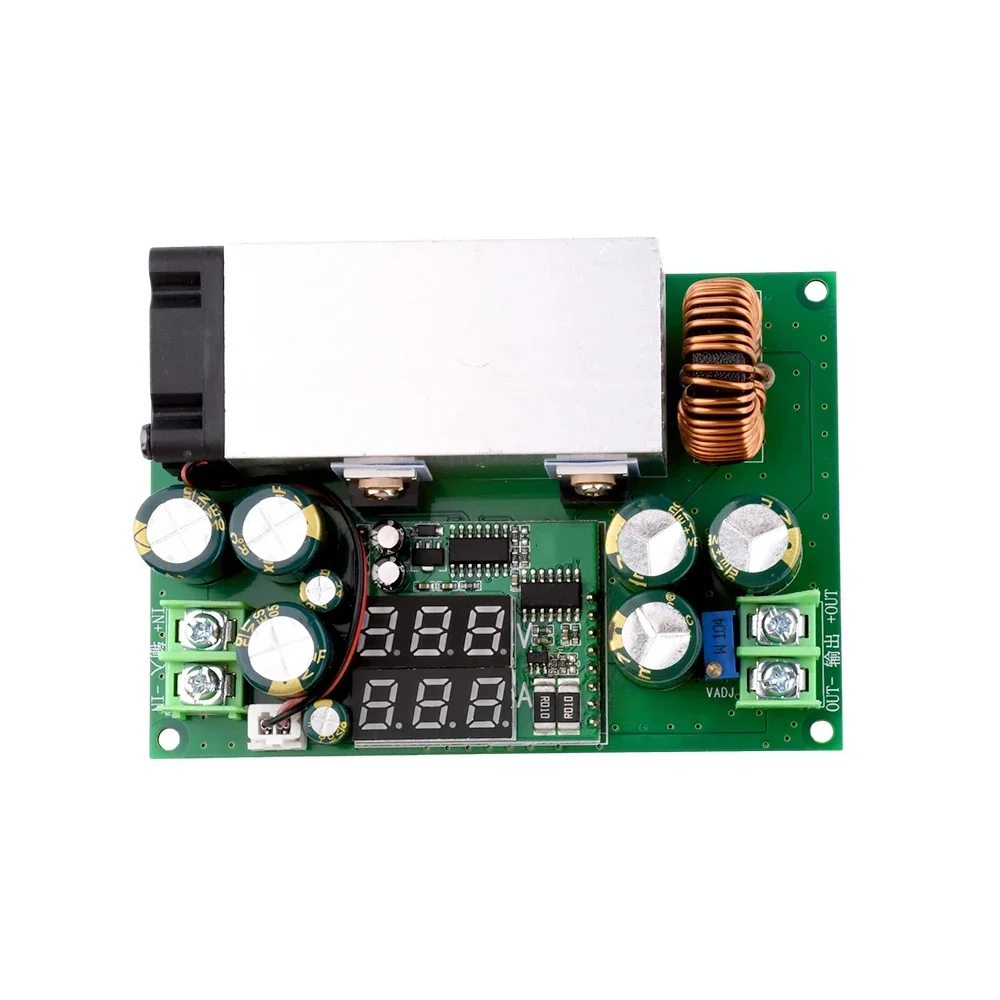

600W High Power LED Digital Display Step Down Buck Converter DC12-80V to 2.5V-50V 20A Adjustable Power Supply Module

Introduction

Feature:

1. High performance, continuous adjustable output voltage and current;

2. Add digital display function, more convenient to use;

3. Simple operation, connected to the wire can be used;

4. Use high-quality materials, input voltage up to 80V;

5. High efficiency, up to 95%.

Product parameters:

Name :DC-DC adjustable buck module

Input voltage: DC12-80V cannot be used for 72V batteries

Output voltage: 2.5V-50V adjustable (step-down only) (maximum output voltage = input voltage *0.8)

Output current: 20A (MAX) 25A overcurrent

Maximum power: 600W

Conversion efficiency: ≥93%

Protection: overcurrent protection

Size: L100mm*W70mm*H31mm

Operating temperature: -40-85℃

Storage environment: -20℃-+50℃

Relative humidity: 65±20%

Wiring: High power, wiring as thick as possible.

Voltage Conversion at a glance:

12-80V to 5V

12-80V to 9V

14-80V to 12V

17-80V to 14.8V

19-80V to 16.8V

22-80V to 19V

24-80V to 21V

28-80V to 24V

35-80V to 30V

41-80V to 36V

48-80V to 42V

55-80V to 48V

Interface description:

IN+: Enter the positive terminal

IN-: indicates the input negative electrode

OUT+: Output positive terminal

OUT-: indicates the output negative terminal

VADJ: Output voltage adjustment, clockwise large small counterclockwise

Note: To charge the battery, battery, output please add diode, anti-backfilling!

Package included:

1 x 600W High Power LED Digital Display Step Down Buck Converter DC12-80V to 2.5V-50V 20A Adjustable Power Supply Module
