Input voltage: 12V-60V
Input current: Maximum input current 15A
Output voltage: 12V-80V continuously adjustable
Output Current: Maximum Output Current 10A (Adjustable)
Output Power: Active Power P = Input Voltage V * 10A
Conversion efficiency: up to 95% (input voltage, current; output voltage, current conversion efficiency)
Short-circuit protection: Fuse
Module size: 73 * 51mm
Weight: 265g
Module nature: Non-isolated boost module (BOOST)
Input voltage: 12-60VDC input (for wide input voltage range applications)
Input current: 15A (MAX) more than 10A Please strengthen the heat
Static operating current: 15mA (12V or 20V measured when the higher the output voltage is too static current will increase)
Output voltage: 12-80VDC continuously adjustable for input voltage is less than the output voltage of the application, not buck
Output current: 10A MAX more than 10A, please strengthen the heat (with the input and output differential pressure, the greater the difference in output current smaller)
10A = 240W, input 36V * 10A = 360W, input 48V * 10A = 480W, input 60V * 10A = 600W, the input maximum power: = input voltage * 10A, such as: input 12V * 10A = 120W, input 24V *
For more power, you can use two modules in parallel, such as the output to 15A, you can use two modules in parallel, the current of each module can be transferred to 8A.
Operating temperature: -40 ~ +85 degrees (ambient temperature is too high, please strengthen the heat)
Operating frequency: 150KHz
Conversion efficiency: up to 95% (efficiency and input and output voltage, current, pressure-related)
Over-current protection: (input more than 17A, automatically reduce the output voltage, a certain range of error.)
Short-circuit protection: Yes (input 20A fuse) Double short-circuit protection,
Input Reverse Protection: None,
Applications:
1, DIY a regulated power supply, input 12V can be, the output can be 12-80V adjustable.
2, for your electronic equipment, power supply, you can set the output voltage with your system voltage.
3, as a car power supply for your laptop, PDA or a variety of digital products.
4, DIY a high-power notebook mobile power: coupled with high-capacity 12V lithium battery pack, so that your books where you can light to where.
5, the solar panel regulator to the battery or electric vehicle charging.
6, with a low voltage battery to the high voltage battery pack or lithium battery charging.
Detailed description:

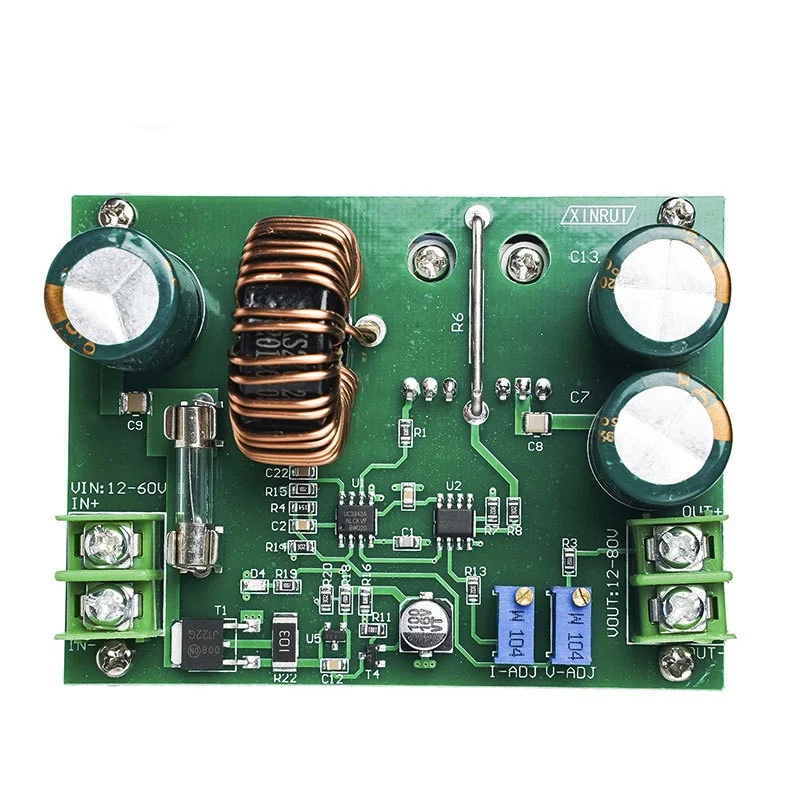

Specifications: Radiator base plate thickness 5mm, tooth height 21mm, length 85mm, width 63mm, booster plate fixed radiator at the top, rational design, radiator and booster board integrated design (1), the use of custom heat sink, , User-friendly direct use, the use of long screws can be fixed directly.
2. Induction magnetic ring with 27mm iron silicon aluminum ring, 1mm two-wire wound inductance, high-quality filter capacitor, enter a 1000uF63V electrolytic capacitor, output two 470uF100V electrolytic capacitors, boost output power better quality, onboard power supply Switch, power work indicator, with voltage regulation, current adjustment potentiometer, making the output more convenient, can always adjust the output voltage, current size, input and output using 8500 terminals, through the current capability to ensure long and reliable work.
Applications:
1. DIY an output adjustable car power supply, only need to input 12V power input, the output voltage can be (14V-80V) free continuous adjustment, but the output voltage can not be lower than the input voltage.
2. Universal car laptop power supply. Input connected to 12V power supply, the output voltage required to adjust the notebook to work.
3. Boost charger, you can use 12V power supply for more than 12V battery charge, for example, 24V battery, and charging current can be adjusted.
4. To power electronic equipment, as long as the voltage is adjusted to the required voltage and current does not exceed the rated current can work properly.
5. System pre-power, when doing a project is, the input is 10V-18V, the system board needs about 24V power and power great, ordinary DC-DC module power is too small, then this module will be your best Of the choice, do not debug directly on the machine to work, easy to achieve high-efficiency high-power boost
