Description
Products Description
Specification:

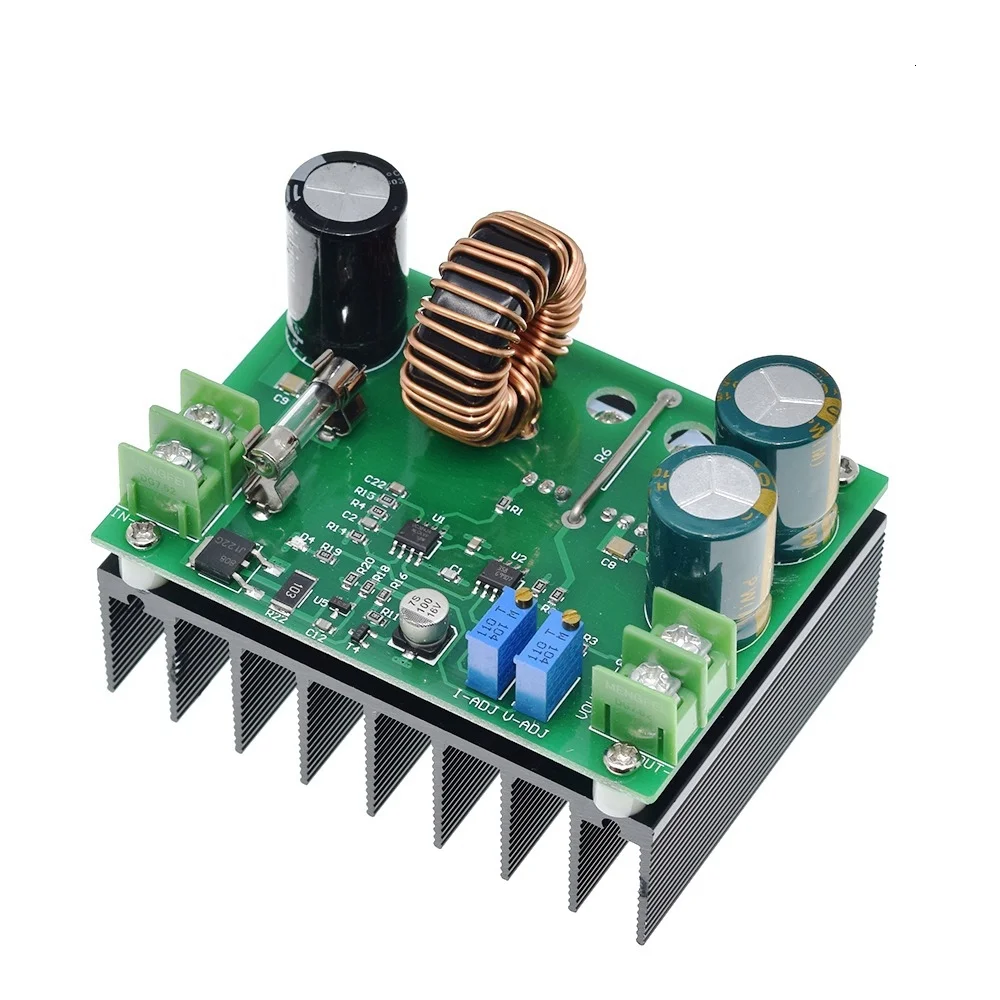

Module Properties: Step-up / Boost DC-DC Converter
Input Voltage:DC 10 ~ 60 V
Output Voltage:DC 12 ~ 80 V ( adjustable, O/p Voltage more than the I/p Voltage by 2V )
Output Current:10A Max
Input Current: 15 A Max( Under normal circumstances please 12A Current )
The minimum voltage difference:2V
Output Power: input 12V Max 120W, in 24V Max 240W, in 60V Max 600W ( P=U x I )
Efficiency:95% Max( eg input :30V output: 40V 5A n: 93%)
Output Short-circuit Protection:yes
Input Reverse Protection: None
Size:85 x63 x64mm (L x W x H )
Weight:251g
Material:CCL
Colour:Green
Module Properties: Step-up / Boost DC-DC Converter
Input Voltage:DC 10 ~ 60 V
Output Voltage:DC 12 ~ 80 V ( adjustable, O/p Voltage more than the I/p Voltage by 2V )
Output Current:10A Max
Input Current: 15 A Max( Under normal circumstances please 12A Current )
The minimum voltage difference:2V
Output Power: input 12V Max 120W, in 24V Max 240W, in 60V Max 600W ( P=U x I )
Efficiency:95% Max( eg input :30V output: 40V 5A n: 93%)
Output Short-circuit Protection:yes
Input Reverse Protection: None
Size:85 x63 x64mm (L x W x H )
Weight:251g
Material:CCL
Colour:Green
Certificates & Production Processes
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
